The EQP Controller continuously monitors the
status of the ASH module, as well as the status
of each device connected to the ASH module.
ASH module alarm and fault status conditions
are logged in the EQP controller.
System status can be determined using S
³
software or the status indicators on the ASH
module, where LEDs annunciate power on,
faults, or an active device on the loop.
Refer to the ASH module instruction manual
(form number 95-8654) for additional
information.
EQ25xxARM Agent Release Module
The EQ25xxARM Series Agent Release Module
(ARM) (see Figure 2-17) provides agent
release or deluge pre-action capability. The
device is controlled by programmable logic in
the Controller. Time delay, abort and manual
release sequences allow the device output to
be programmed for use in unique applications.
The device is field programmed to operate in
one of the following modes:
Timed– Output is activated for a field
selectable duration from 1 to
65,000 seconds.
Continuous– Output latches until reset.
Non-latching– Output follows the input.
NOTE
Special Condition of Use: For use in
systems installed in compliance with
NFPA 72:2010 or earlier.
The device can monitor and control two output
devices (24 Vdc rated) that are programmed
and energized together. The release circuits
are compatible with a variety of solenoid or
initiator based suppression systems.
The release circuit is supervised for open circuit
conditions. If a trouble condition occurs (open
circuit or solenoid supply voltage less than 19
volts), it will be indicated at the Controller. Each
output is rated at 2 amperes and auxiliary input
terminals are provided for additional 24 Vdc
output power where needed.
Refer to the EQ25xxARM Specification Data
sheet (form number 90-1128) for additional
information.
NOTE
Special Condition of Use: For use in
systems installed in compliance with
NFPA 72:2010 or earlier.

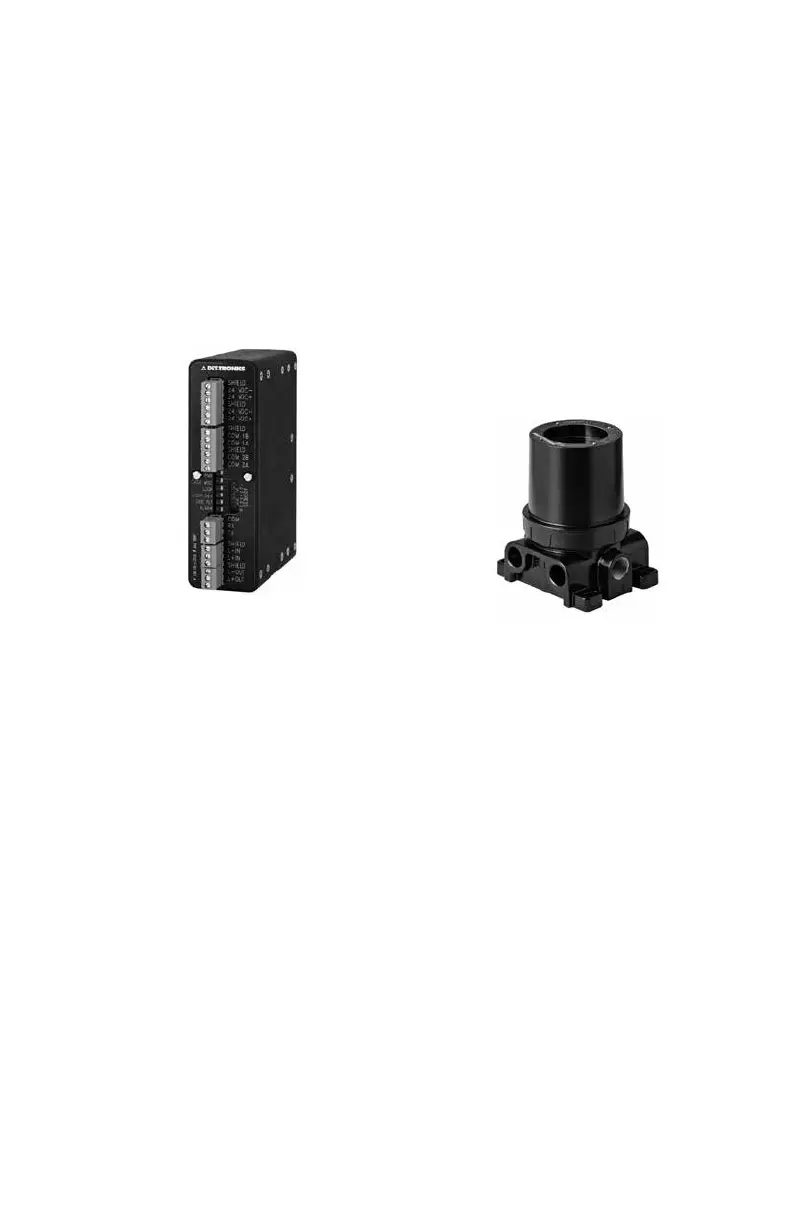

Figure 2-17—Agent Release Module
Figure 2-16—EQ3750ASH
