EQ3710AIM Analog Input Module
The 8 Channel Analog Input Module (see
Figure 2-13) provides a means of connecting
devices with a calibrated 4–20 mA output
signal to the Eagle Quantum Premier System.
The Analog Input Module (AIM) provides 8
configurable channels that can be set for either
combustible gas mode or universal mode. The
combustible gas mode provides a number
of automatically programmed settings, and
alarm thresholds that are limited to approval
body requirements. The universal mode is
used for generic devices where control over
all configuration parameters is required. All
devices must provided their own calibration
facilities.
For fire detector 4–20 mA inputs, the Analog
Input Module (AIM) is certified for use as an
NFPA 72 Class B Approved input.
Refer to the Analog Input Module Specification
Data sheet (form number 90-1183) for
additional information.
EQ3770 Explosion-Proof I/O (EIO) Module
This module includes on EDIO/AIM/RM/DCIO
module in an explosion-proof enclosure (see
Figure 2-14). Options include: Window, NTP/
Metric ports, and a Ground Fault Monitor (GFM)
Refer to the EQ3770EIO Instruction Manual
(form number 95-8761) for additional
information.

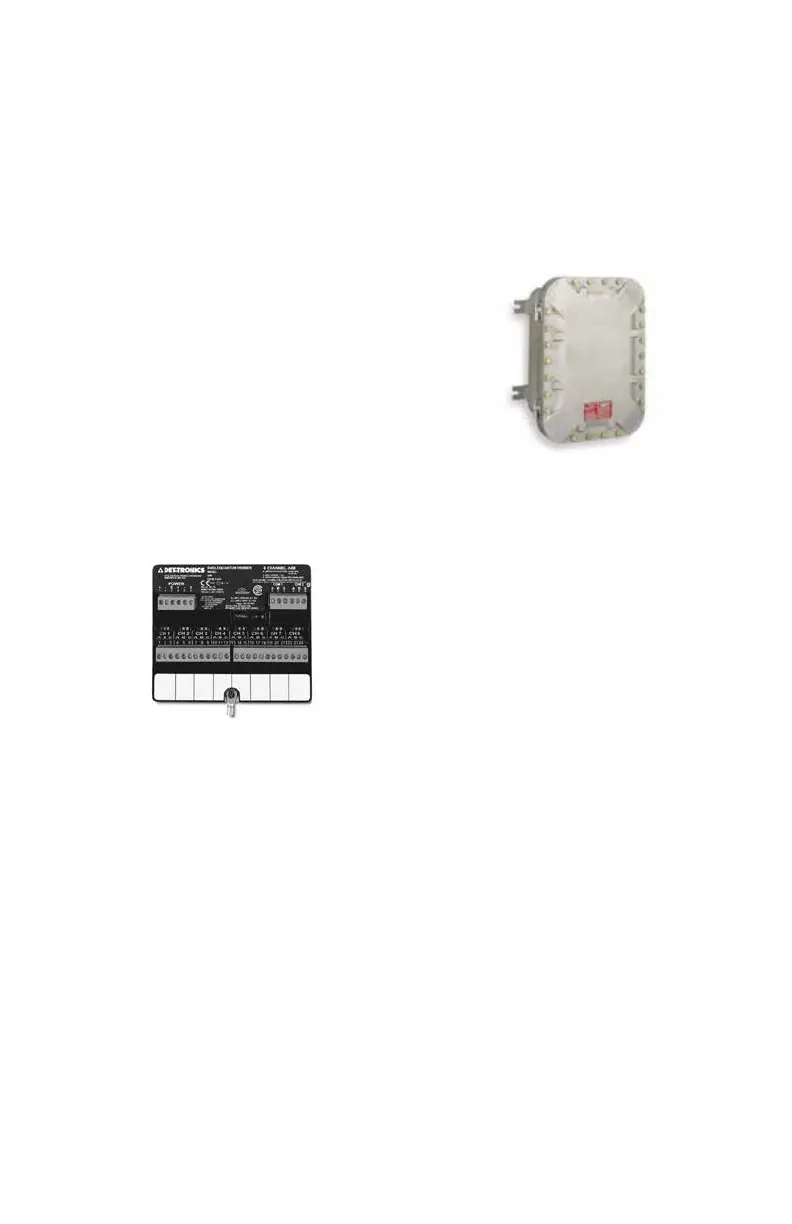

Figure 2-13—Eight Channel Analog Input Module
Figure 2-14—EIO Module
