Toelectricpump
OPERATOR’S MANUAL
OUTPUT MODULE HARNESS
Optional output harness controls boom section shutoff.
1. Connect the output harness to the mating connector of the Rate
Control Module harness.
2. Use extension harness, if required.
3. Connect output module and boom shutoff modules to the mating
connectors of the CAN/Power backbone.
4. Connect electric motor/pump driver harness, if used.

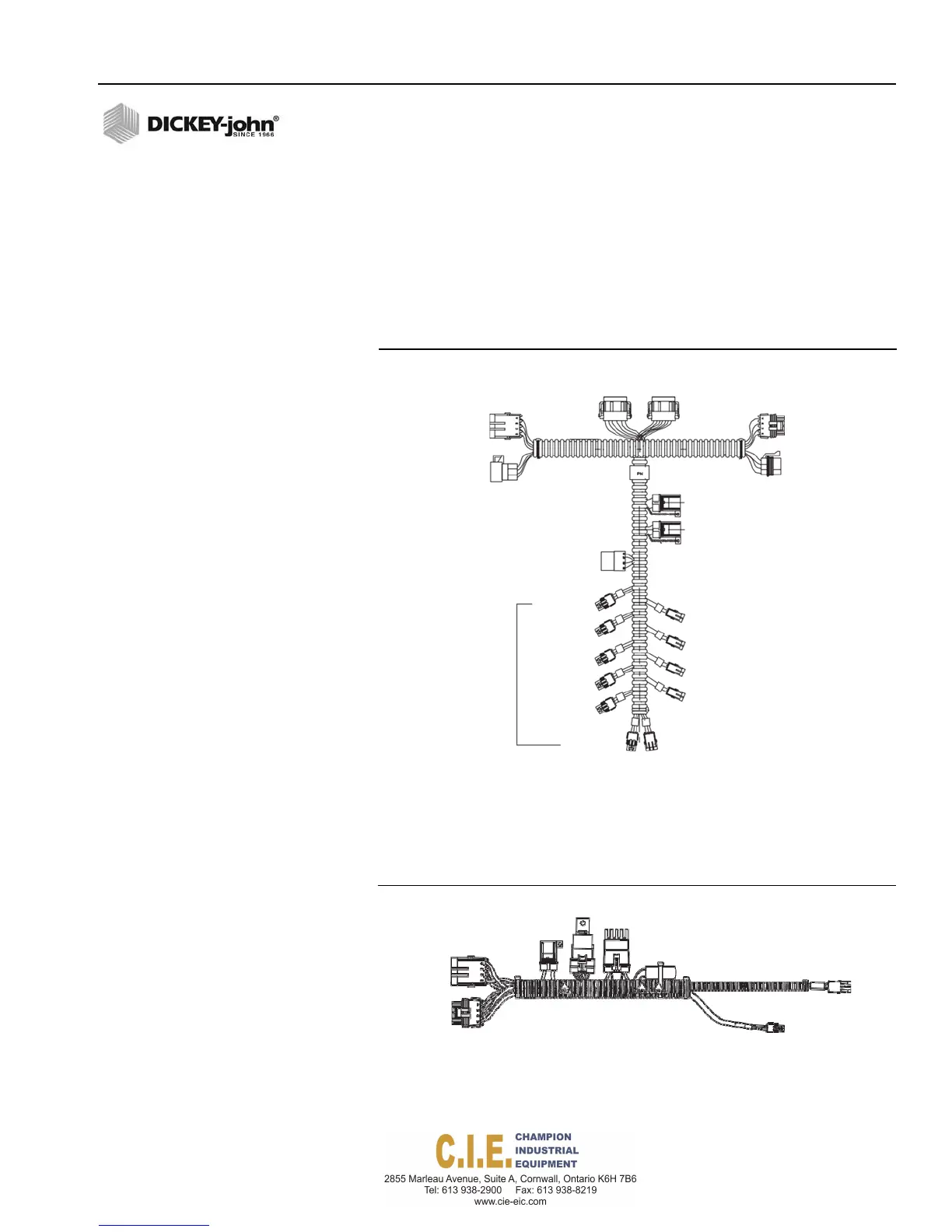

Figure 22
Output Module Harness
OutputModule

RateControl
ModuleHarness
orExtension
Harness
ElectricMotor
PumpDriver
Harness








Boom
Shutoff
Valves
Output1 
Output2 
Output3 
Output4 
Output5 

Output6 

ReverseAuger
ConveyorLeft
ConveyorRight

+12VSwitchOut 

GateHeight 

ELECTRIC MOTOR DRIVER HARNESS
Drives electric pumps or motors that draw high current (greater than 2
amps).
Figure 23
Electric Motor Driver Harness
RateControl 
ModuleHarness, 
ExtensionHarness,

ToPWMchannel
(liquidorauxiliary)





Flex4 Pro
TM
Control System
6010541 Rev A
INSTALLATION / 25
