OPERATOR’S MANUAL
ROADWATCH TEMPERATURE ADAPTER AND FLEX4
INTERFACE CABLE
The Flex4 Interface cable connects to any of the Rate Control Module
Harness analog 1-4 connectors. The RoadWatch Temperature adapter
connects to the Flex4 Interface cable.
The analog position must then be identified at the (F9) Accessory Sensor
screen to identify what function is connected to the analog 1, 2, 3, or 4
connector.

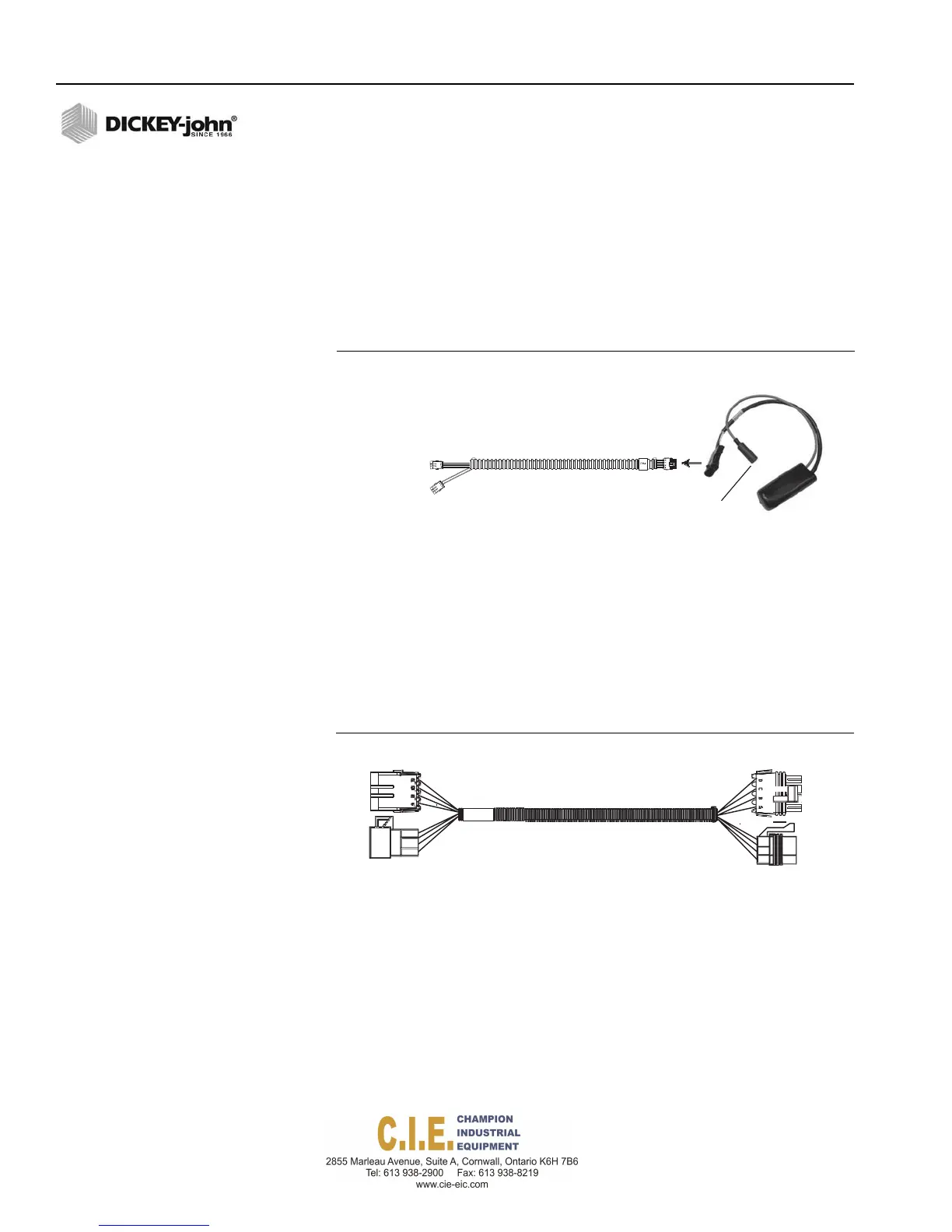

Figure 20
RoadWatch Temperature adapter and Flex4 Interface Cable
Connects
toRateControl
Module
Harness
viaAnalog1,
2,3,or4
connectors
Flex4InterfaceCable
Temperature
Sensor
Road
Watch
Adapter
EXTENSION HARNESS
Extension harness (10 ft) is optional and used when extra length is required
to connect with the Rate Control Module harness and the Output Module
harness.
Figure 21
Extension Harness
24 / INSTALLATION
Flex4 Pro
TM
Control System
6010541 Rev A
