SM720 Service Manual Edition 5
34
Then

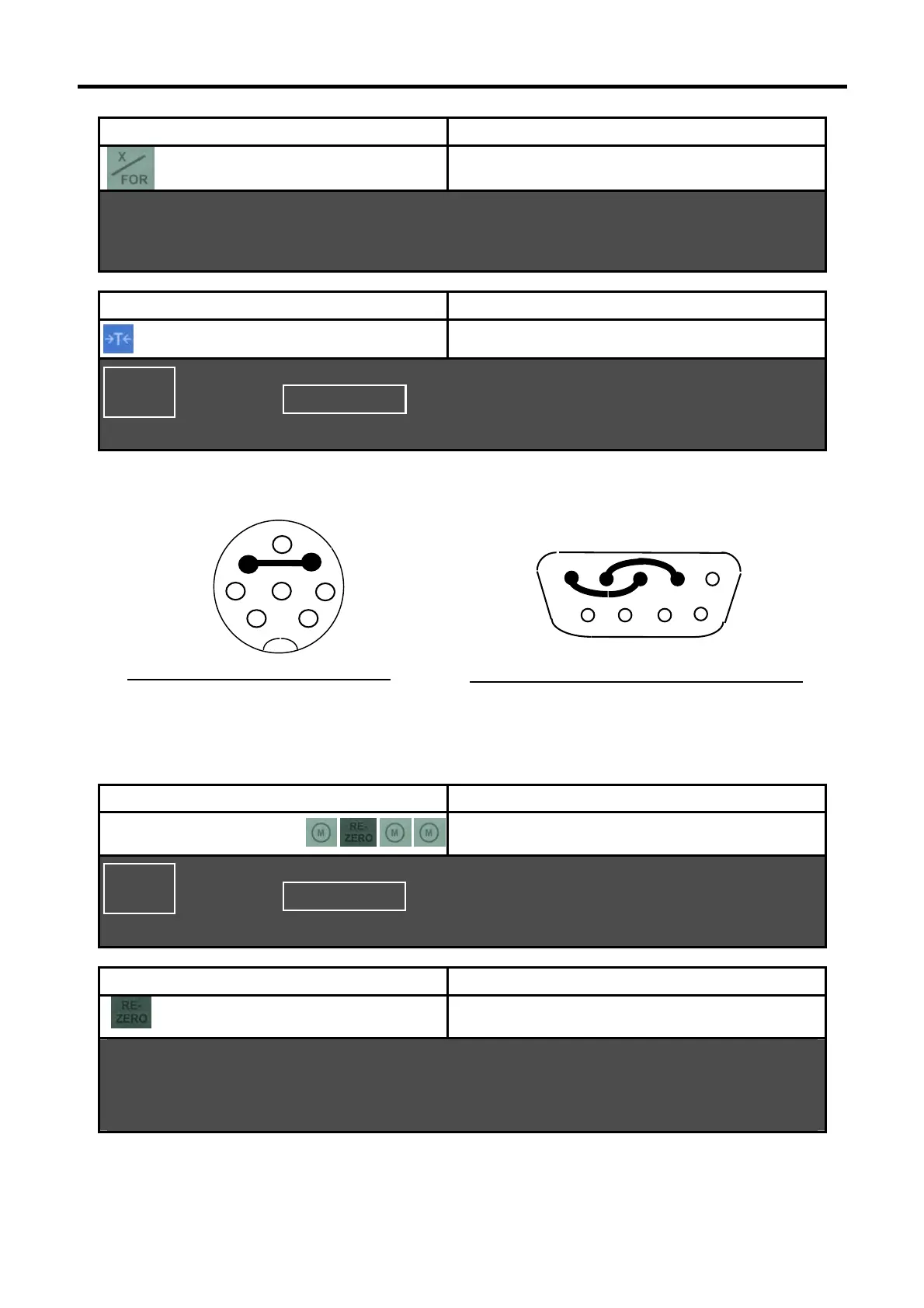

KEY TO PRESS OPERATION
-- Go to Hardware Testing Mode again
HARDWARE TESTING RAM READ / WRITE
Testing In Progress…
After that
KEY TO PRESS OPERATION
-- Exit to Z mode.
TO CLEAR DAILY TRANSACTION PRESS
Remarks:
5.1.1.5 Internal Count
KEY TO PRESS OPERATION
In the Weighing Mode, press
-- Go to Z mode.
-- Then turn on the Span Switch.
TO CLEAR DAILY TRANSACTION PRESS
KEY TO PRESS OPERATION
+ [0][0][9]
-- Internal Count Mode
-- Press ‘Tare’ key to exit
IR X XXXXX
Z
MODE
PRINT KEY
5
4
1
6
TEST JIG CONNECTOR for SIO Port
Connect pin 4 and pin 5
TEST JIG CONNECTOR for 4 LINE RS485 Port
Connect pin 1 and pin 3
Connect pin 2 and pin 4
Z
MODE
PRINT KEY
