Digi SM-720 Service Manual

SM-500V2 Service Manual Edition 5
97

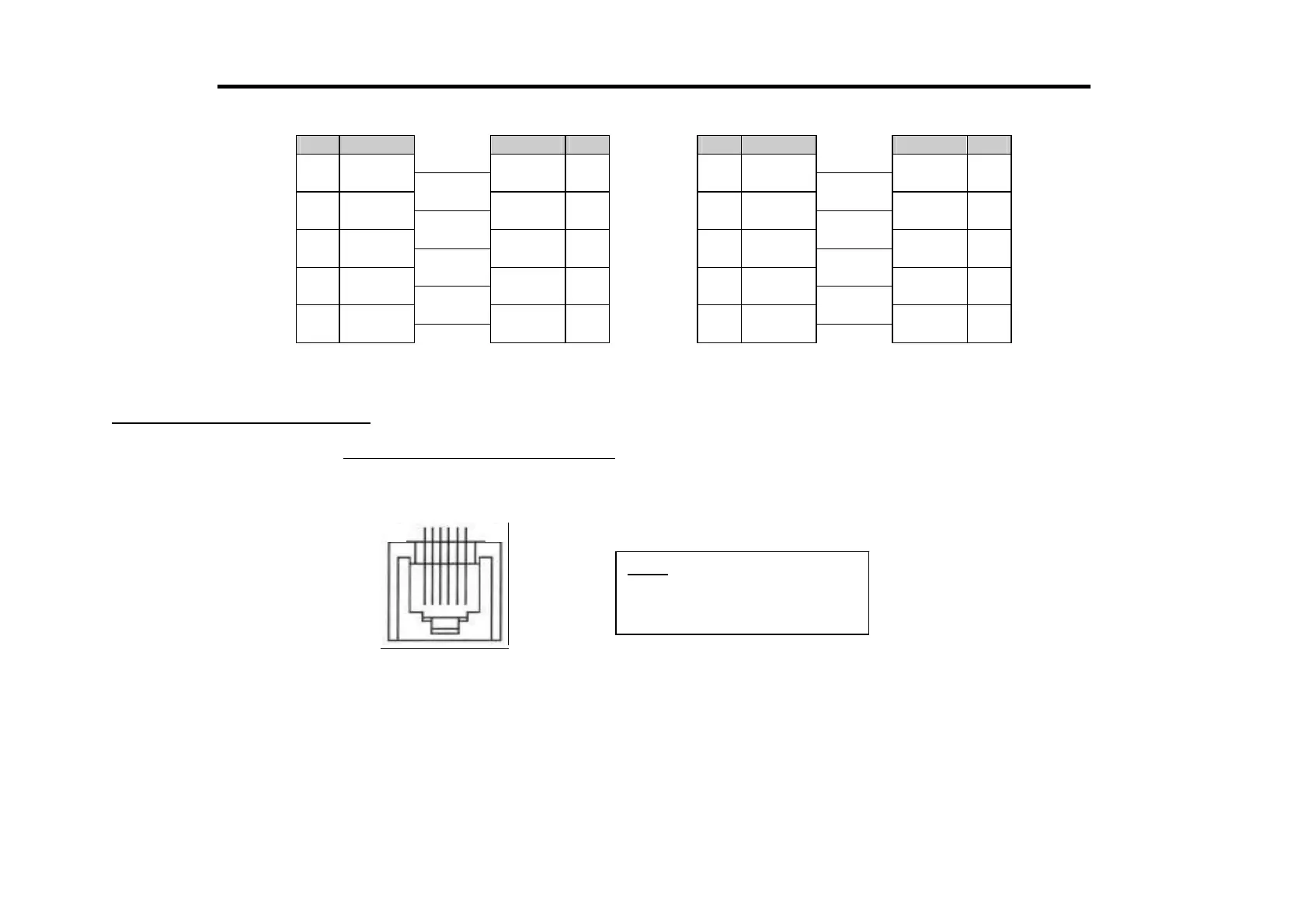

SCALE HUB SCALE / HUB SCALE / HUB
PIN SIGNAL SIGNAL PIN PIN SIGNAL SIGNAL PIN
1 TX+ TX+ 1 1 TX+ RX+ 3
2 TX- TX- 2 2 TX- RX- 6
3 RX+ RX+ 3 3 RX+ TX+ 1
6 RX- RX- 6 6 RX- TX- 2
5,7,8 N.A. N.A. 5,7,8 5,7,8 N.A. N.A. 5,7,8
11.5.2 Cash Drawer Option (RJ11)
SM-720 SCLAE SIDE (Interface Board)
Note:
This connector is used for
Interface Board TWB-01750-1.
1 2 3
4 5 6
