Digi SM-720 - Hanging Type

SM720 Service Manual Edition 5
57

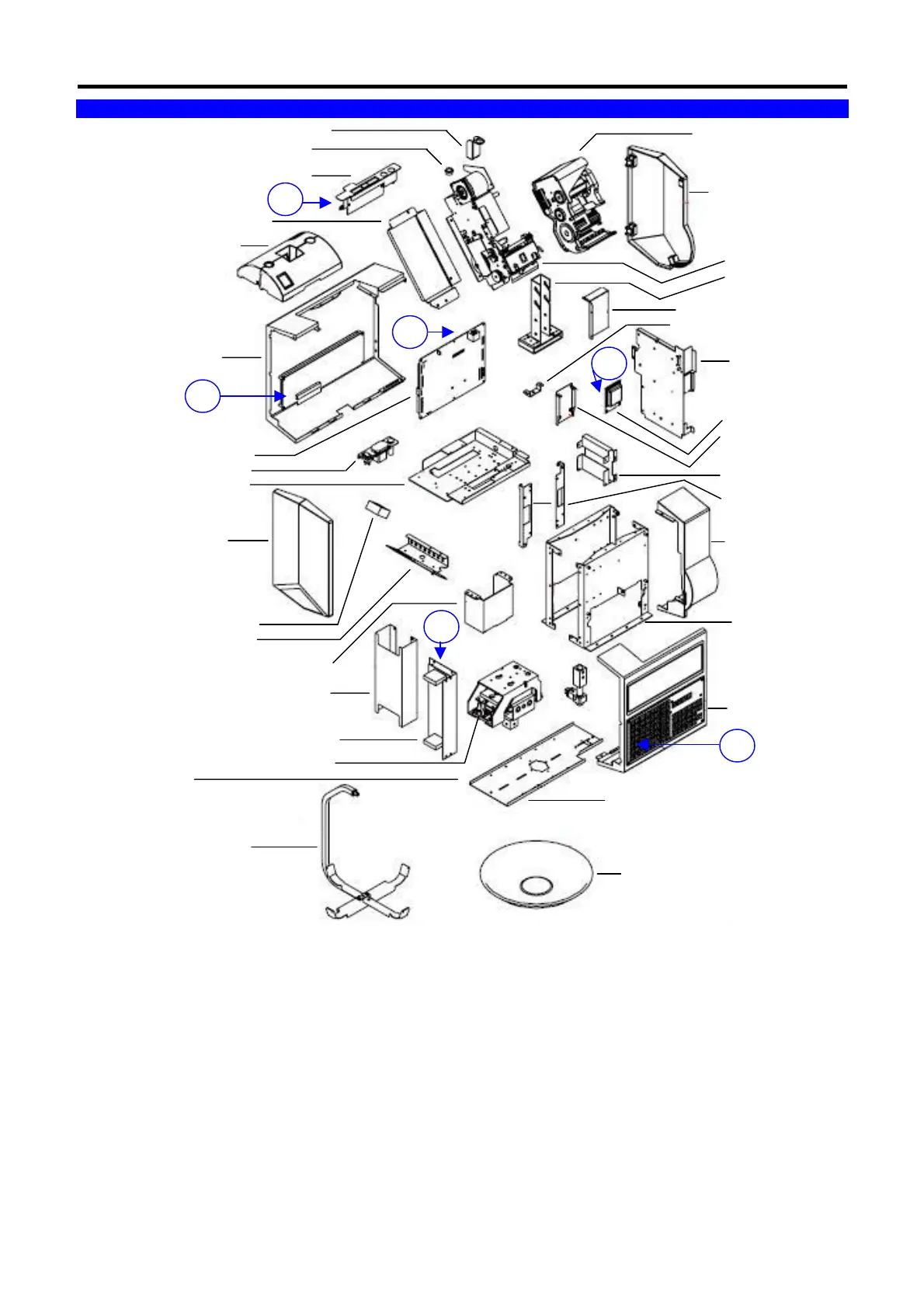

7.3 Hanging Type
1
2
3
4
5
6
BRACKET AJ (LEVEL)
LEVEL ASSY A-1
INTERFACE ASSY
CASSETE ASSY
PRINTER DOOR ASSY
BRACKET AK (CASSETTE)
HOOK ASSY
PRINTER ASSY
BRACKET BG (LCD COVER)
BRACKET AS (SPAN SWITCH)
COVER AA (H-DOME)
REAR COVER ASSY
ELEC ASSY
(
SM500V2 M/B
)
SWITCH ASSY
DC FAN AD0424H8-70
ELEC BLK (SM300 A/D-1)
BRACKET AK
(
LOAD SUPPORT
)
BRACKET AG
(
FRAME PRT WALL
)
BRACKET AZ (TUNNEL)
BRACKET BA
(
SM500H M/B
)
PRINTER COVER ASSY
BRACKET AM
(COL MAIN)
COVER H-SIDE ASSY
BRACKET AJ FAN
BRACKET BD (SM500H POWER)
BRACKET AE (FRAME TOP)
BRACKET AF (LOAD CENTER)
ELEC BLK (SM500H CLCD PWR, EC)
A
XIS ASSY
LOADCELL ASSY
FRONT COVER ASSY
PAN AC
(
DI 350MM
)
BRACKET AN (BASE PLATE)
PAN ASSY
