SM720 Service Manual Edition 5
79
10. WIRELESS LAN KIT INSTALLATION AND WLAN CONFIGURATION
10.1 SM-720 Standard Machine
10.1.1 Internal Wireless Kit Installation

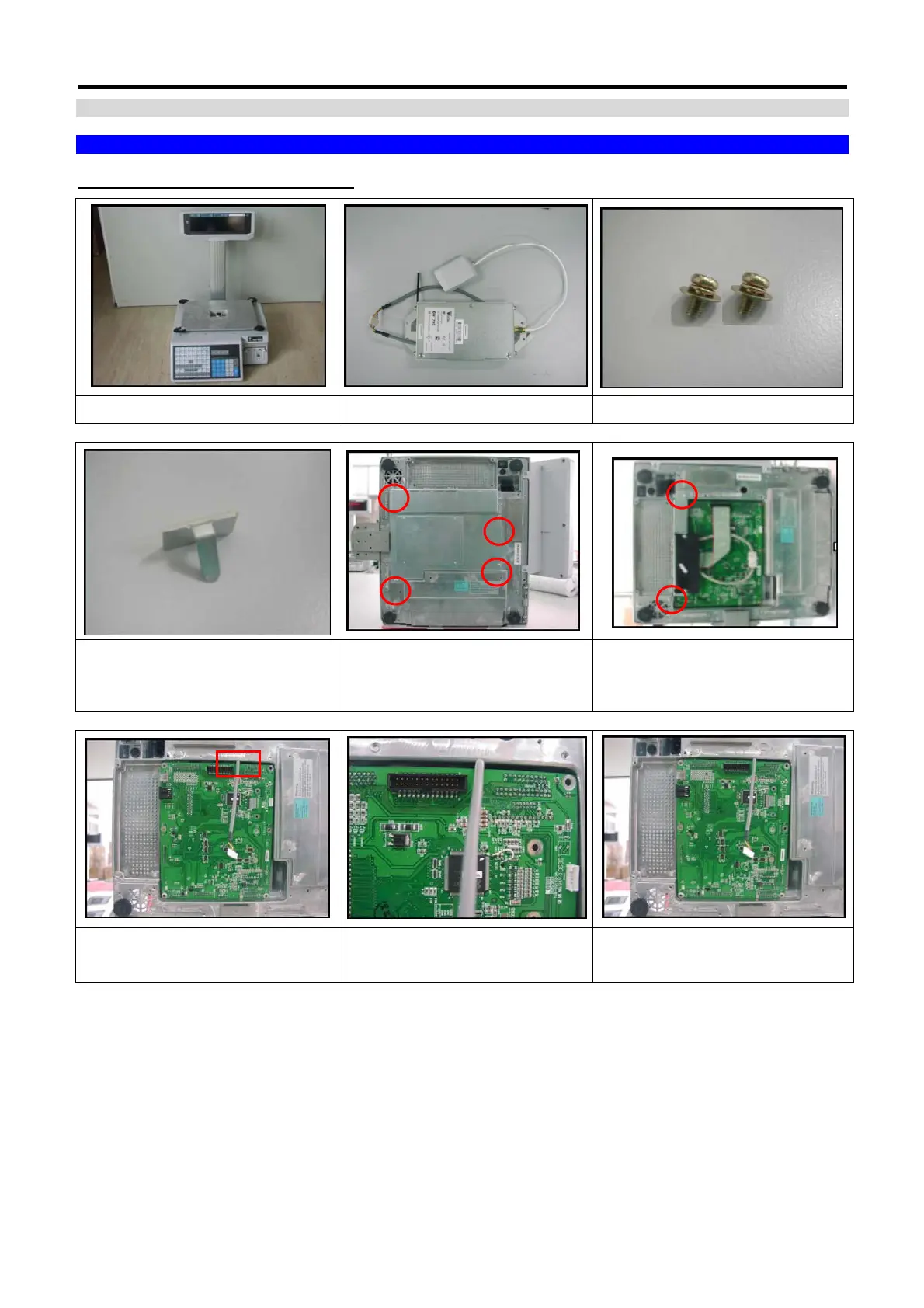

1. SM-720 scale 2. Wireless LAN Kit. 3. Screw M3x6
4. Hi Sticker 5. Place the SM-720 scale upside
down and loosen 4 screw for
remove the bottom cover
6. Disconnect the cable, loosen 2
screws for remove the I/F Board
and remove all the screw that
tighten main board.
7. Take Up Main Board, and insert
the wire TCW-0602 (Please refer
to the zoom pictures for detail).
8. Please Insert The Wire as
shown. (ZOOM IN)
9. Put Main Board back and
retighten the screw
To Next Page
