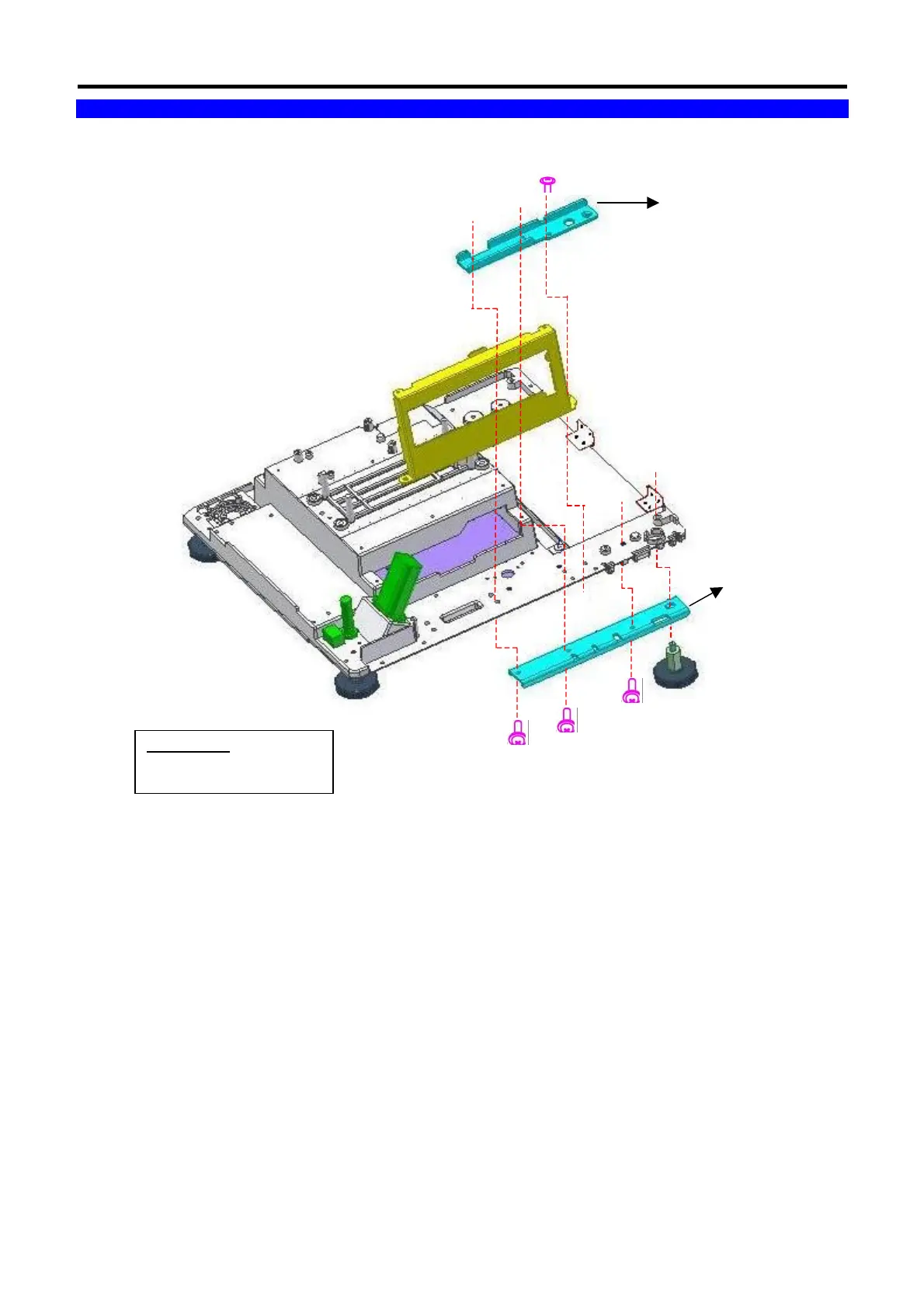

8.6 Extra Bracket Disassembly for 30Kg
1. To assembly the Bracket EE (30KG, Base Top) tighten 1pcs Sems B screw M4x12 from Top.
2. To assembly the Bracket EF (30KG, Base Bottom) tighten 3pcs Sems B screw M4x12 from Bottom.
101
101
101
101
Screw Type:
101- M4 X 12 Sems B
Bracket EE
(30Kg, Base Top)
Bracket EF
(30Kg, Base Bottom)
