SM720 Service Manual Edition 5
65

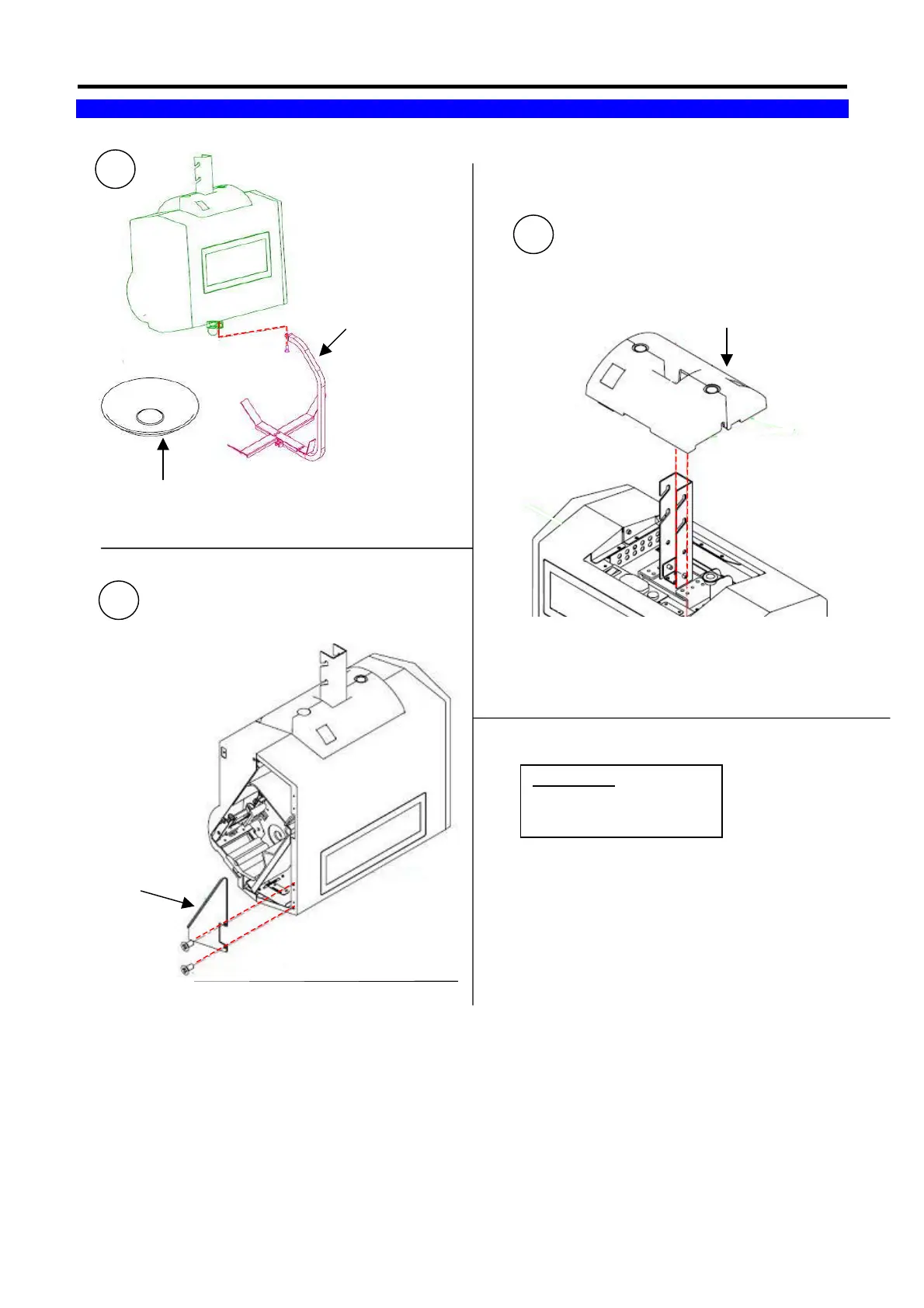

8.7 Hanging Type Disassembly
PAN AC (DI 350MM)
44010406500300
Sub ASSY Bracket BX
& Bracket BY
Bracket BN (Triangle)
44013501804000
Cover AJ (H-DOME)
44013502801000
1
2
3
101
102
102
Screw Type:
101 – Axis AE
102 – Flat Head M3x8
