Digi SM-720 Service Manual

SM720 Service Manual Edition 5
55

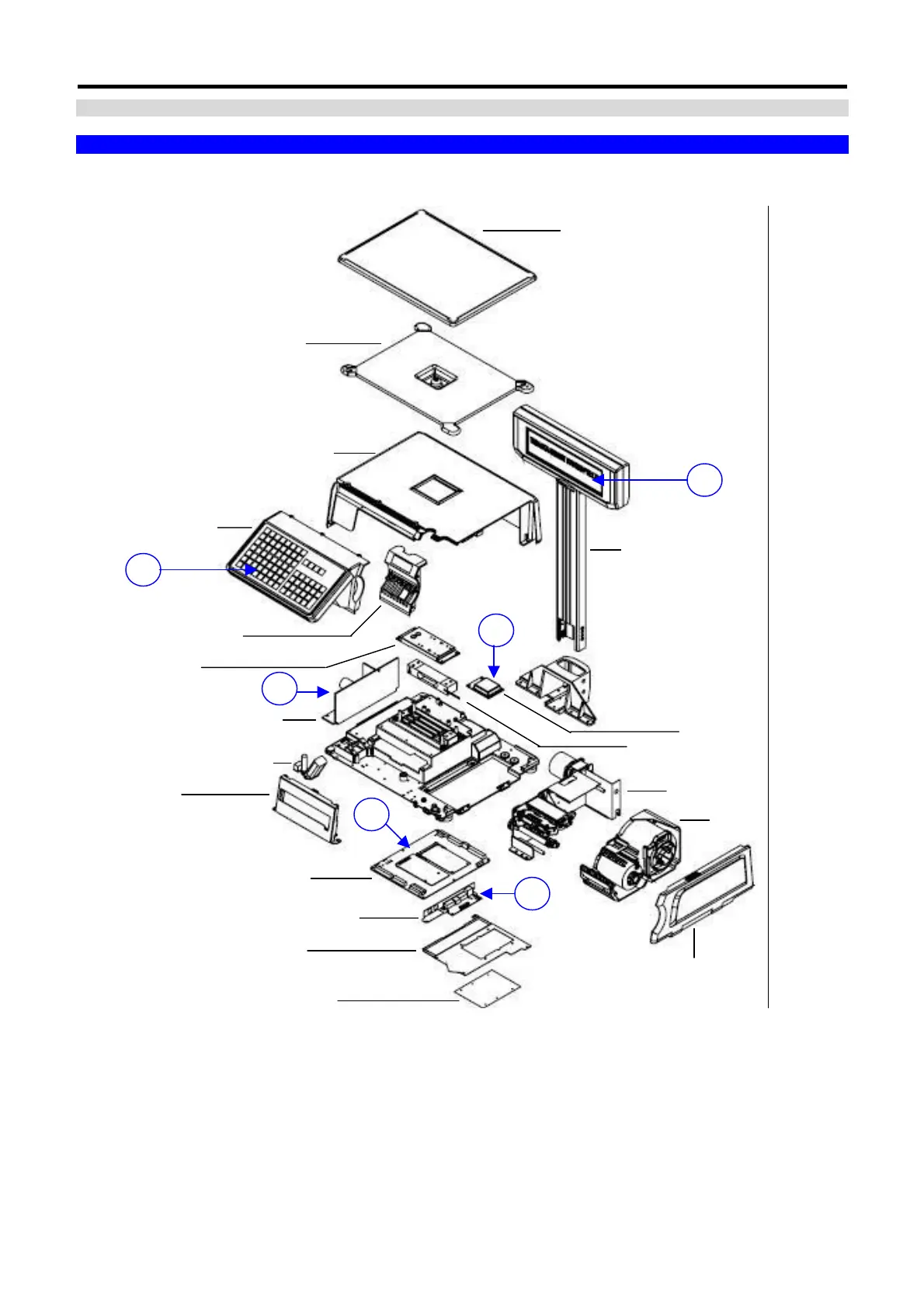

7. EXPLODED VIEW
7.1 Pole Type
2
1
3
5
6
4
FRONT DOOR ASSY
SUPPORT AA
(LC DIECAST TOP)
A
SSY AA (PLATER SUPPORT)
PLATTER SUPPORT ASSY
TOP COVER
KEYBOARD ASSY
SWITCHING PS TZD200/JA
ELEC BLK (SM500V2 AC PWR)
BRACKET AB
(
FRONT COVER
)
MAINBOARD
PRINTER KIT
CASSETTE KIT
PRINTER DOOR COVER
ETHERNET ASSY
LOADCELL
(
NMB C2G1-30K-S23
)
ELEC BLK
(
SM300 A/D-1
)
POLE DISPLAY ASSY
BRACKET DQ
(
NEW DIECAST
,
MB COV
)
BRACKET BZ
(
M/B SEAL
)
