Digi SM-720 - Pole and Bench AD Board Disassembly

SM720 Service Manual Edition 5
61
8.2 Pole and Bench AD Board Disassembly

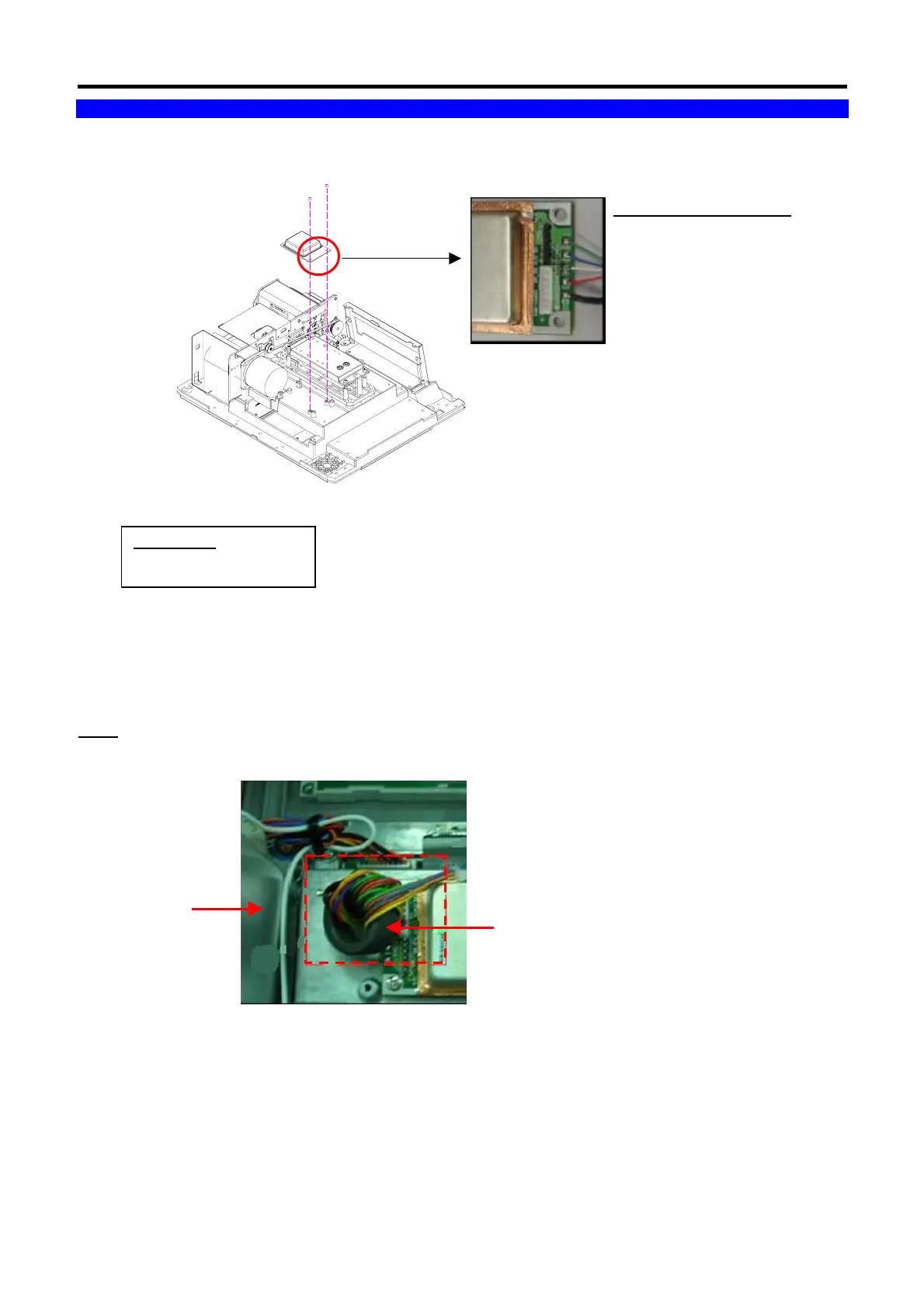

1. To remove the AD Board, solder out the Loadcell wire and then unscrew the 2pcs Sems B M3X6
screw.
Note:
To avoid the Ferrite Core affect the Display function, ensure the Ferrite Core is assembly away from Display as
shown. (Locate at near the AD Board)
Screw Type:
101- Sems B M3X6 (2pcs)
101
101
Loadcell wire color indication
Green
Blue
White
Red
Black
Ferrite Core B1142-100
12FXFCR00B1142
Display
