SM-500V2 Service Manual Edition 5
96

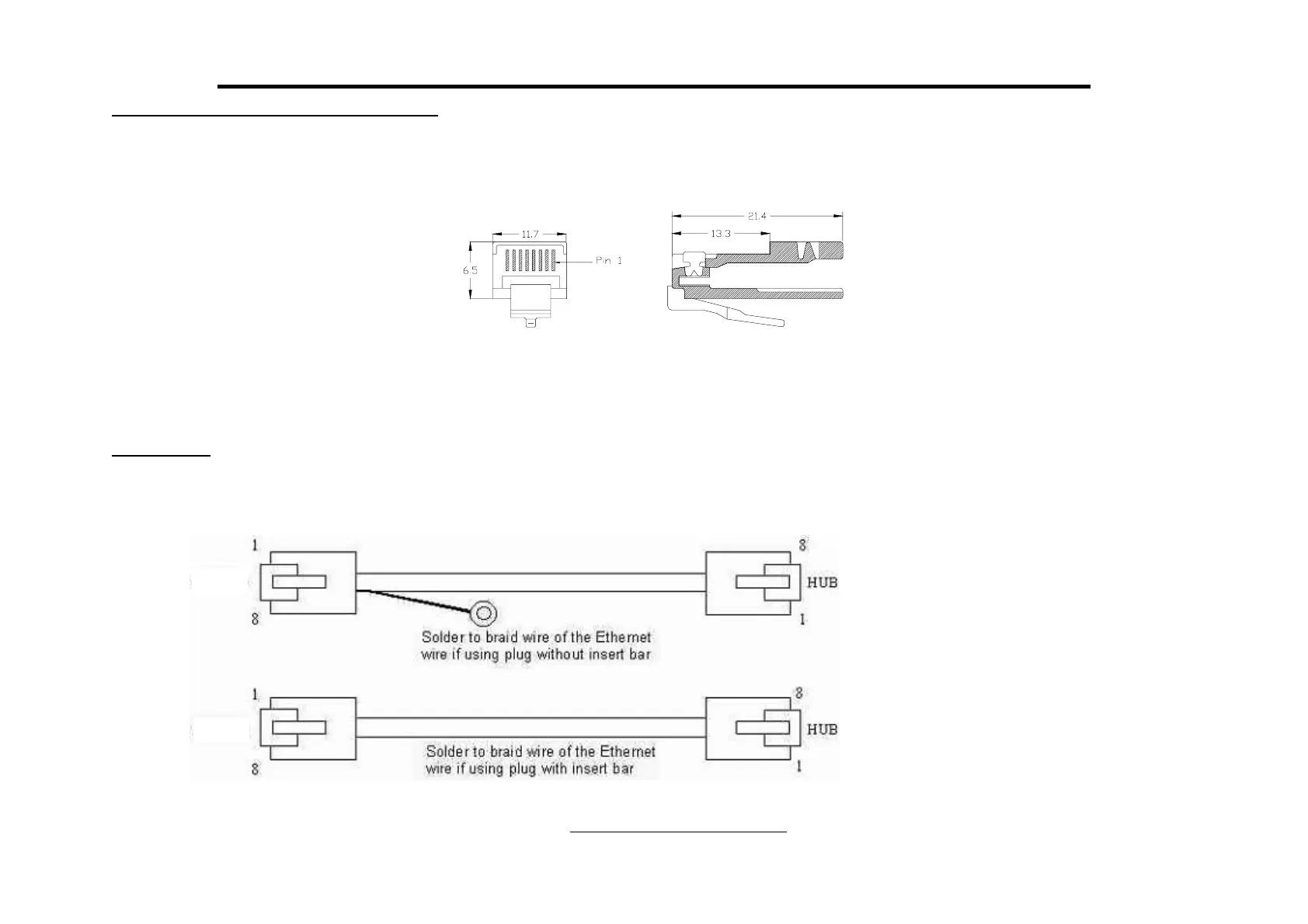

11.5.1 Straight & Crossover Ethernet Cable
Straight cable is for Client / Server connection. Crossover cable is for Hub-to-Hub connection. (Some models of the Hub do not need crossover cable for Hub-
to-Hub connection. Please refer to the Hub operation manual if in doubt)
Preferable type: CviLux
Preferable type: CviLux CJP3 / CviLux CJP4 (with insert bar)
CABLE TYPE
Cable type: 4 pair 100MHz Cat.5 AWG 24 or 26 UTP / FTP / STP.
Preferable type: Cat.5 AWG 24 or 26 FTP/ Cat.5 AWG 24 or 26 STP (Recommended for CISPR 22B conformance)
Strai
g
ht Cable Connection
Cross Cable Connection
S
M72
0
S
M72
0
