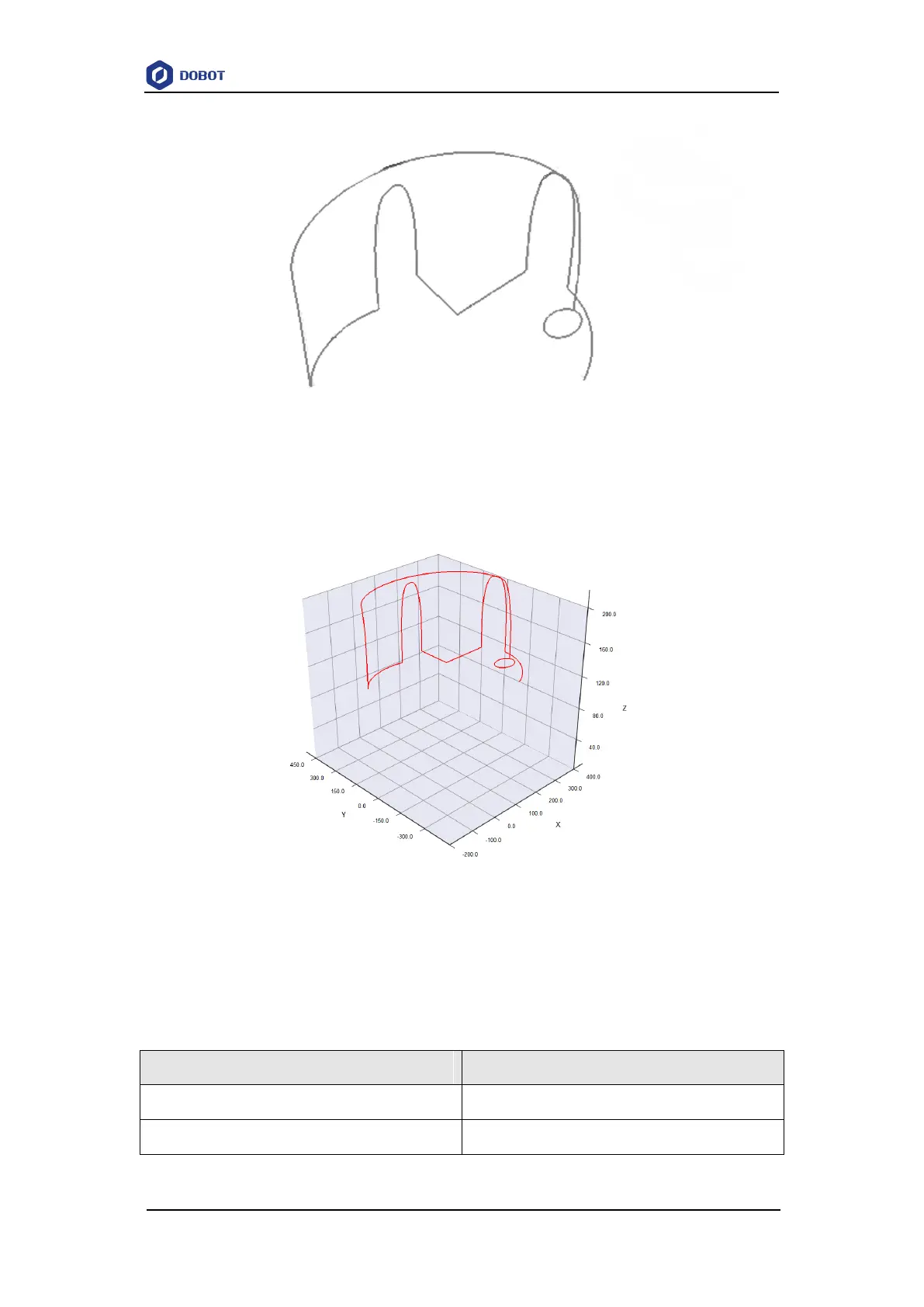

Figure 6.45 Trajectory of Dobot M1
Figure 6.46 Cartesian coordinate of the trajectory
If point A is the starting point, and Point B is the end point. From Point A to Point J, the
coordinates are listed as Table 6.11.
Table 6.11 Cartesian coordinates
Point
Coordinate (x,y,z,r)
A
(270,-244,110,0)
B
(400,0,110,0) (Singular point)
