Dobot M1 User Guide 5 Installation and Commissioning
Issue V1.3.4 (2019-05-23) User Guide Copyright © Yuejiang Technology Co., Ltd
41
Procedure

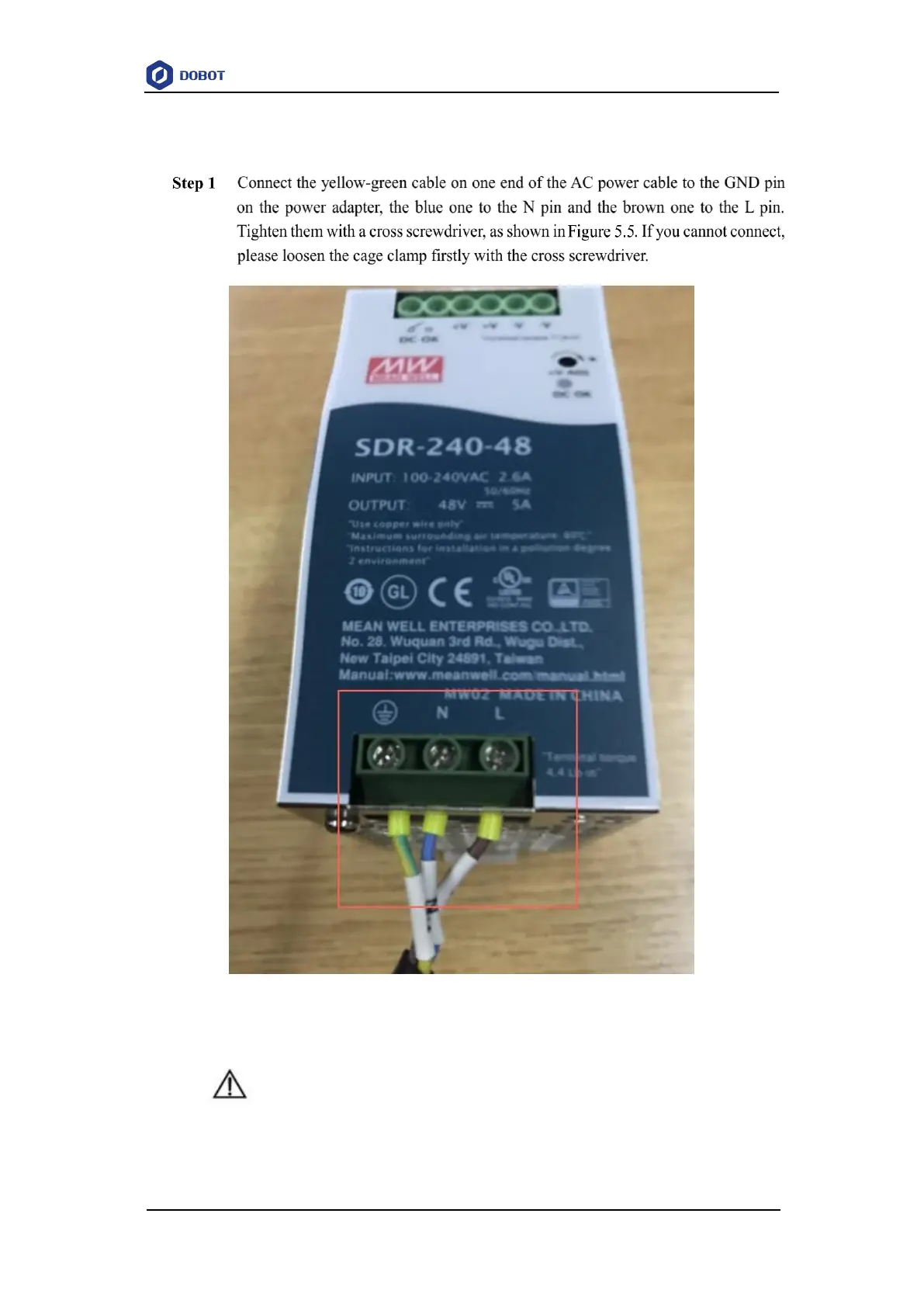

Figure 5.5 Connect power supply input cable to power adapter
NOTICE
If the type of the AC power cable is America-standard, please connect the G pin on the
AC power cable to the Ground pin on the power adapter, the W pin to the N pin, and the
Z pin to the L pin.
