Dobot M1 User Guide 5 Installation and Commissioning
Issue V1.3.4 (2019-05-23) User Guide Copyright © Yuejiang Technology Co., Ltd
50

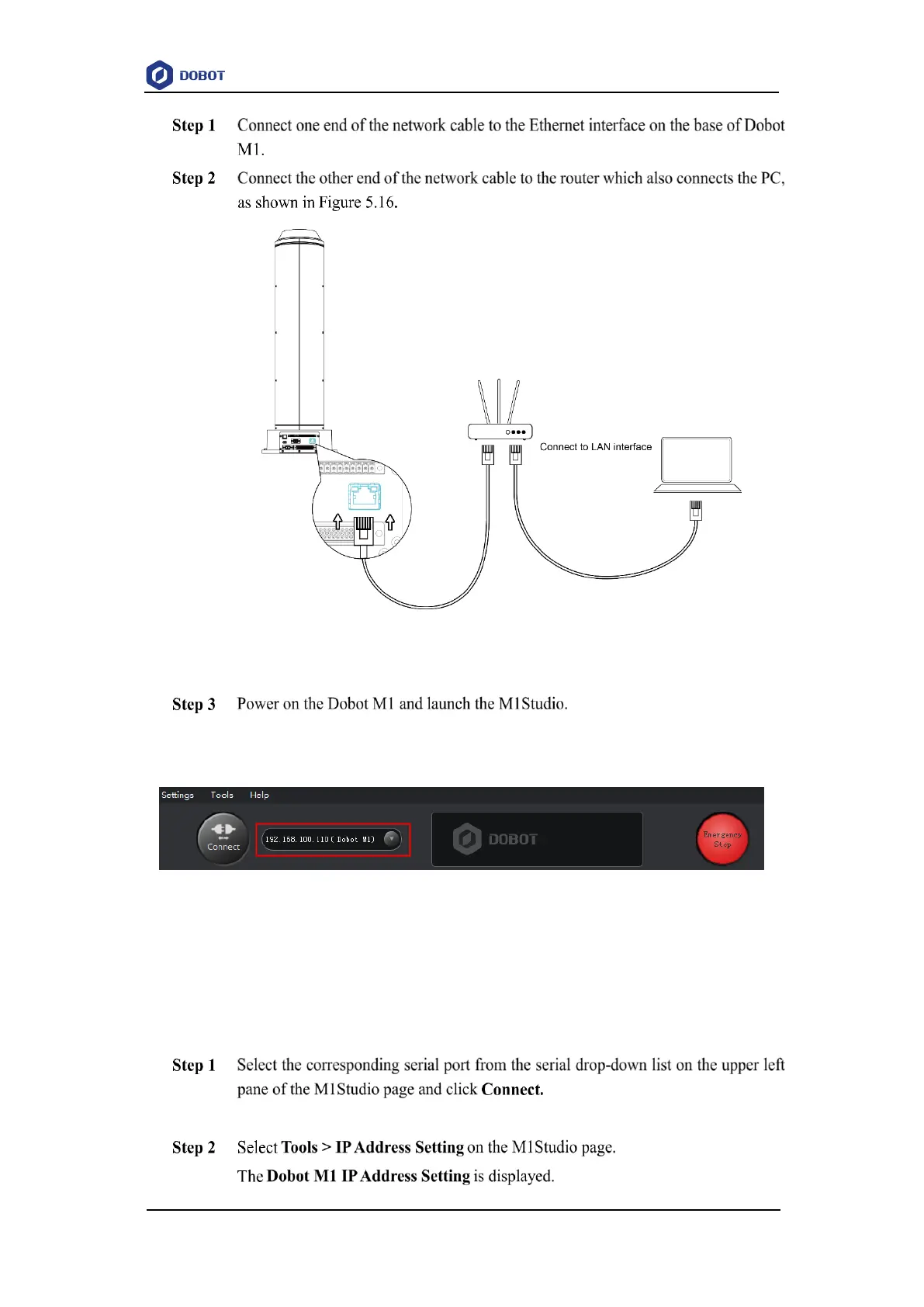

Figure 5.16 Connect via router
You can check the corresponding IP address from the serial drop-down list on the
upper left pane of the M1Studio page and click Connect, as shown in Figure 5.17.
Figure 5.17 IP address information
Abnormal Handling
If the IP address is not displayed on the upper left pane of the M1Studio page after powering
on the Dobot M1, please obtain the IP address as the following steps.
If Connect turns to Disconnect, the connection is successful.
