Domino A-SERIES

PRINTER DESCRIPTION
27080 Issue 1 September 98 6--15
Ink Management
Block
Over--pressure
PRV
1psi PRV &
Temperature
Sensor
Viscometer
Main Filter
Ink Reservoir
Make--up
Reservoir
Peltier
(Optional on
A200/A100)
Pressure
Transducer
Solenoids
Main
Pump
Gutter and Make--up
Filters Behind Reservoirs
Jet Pump

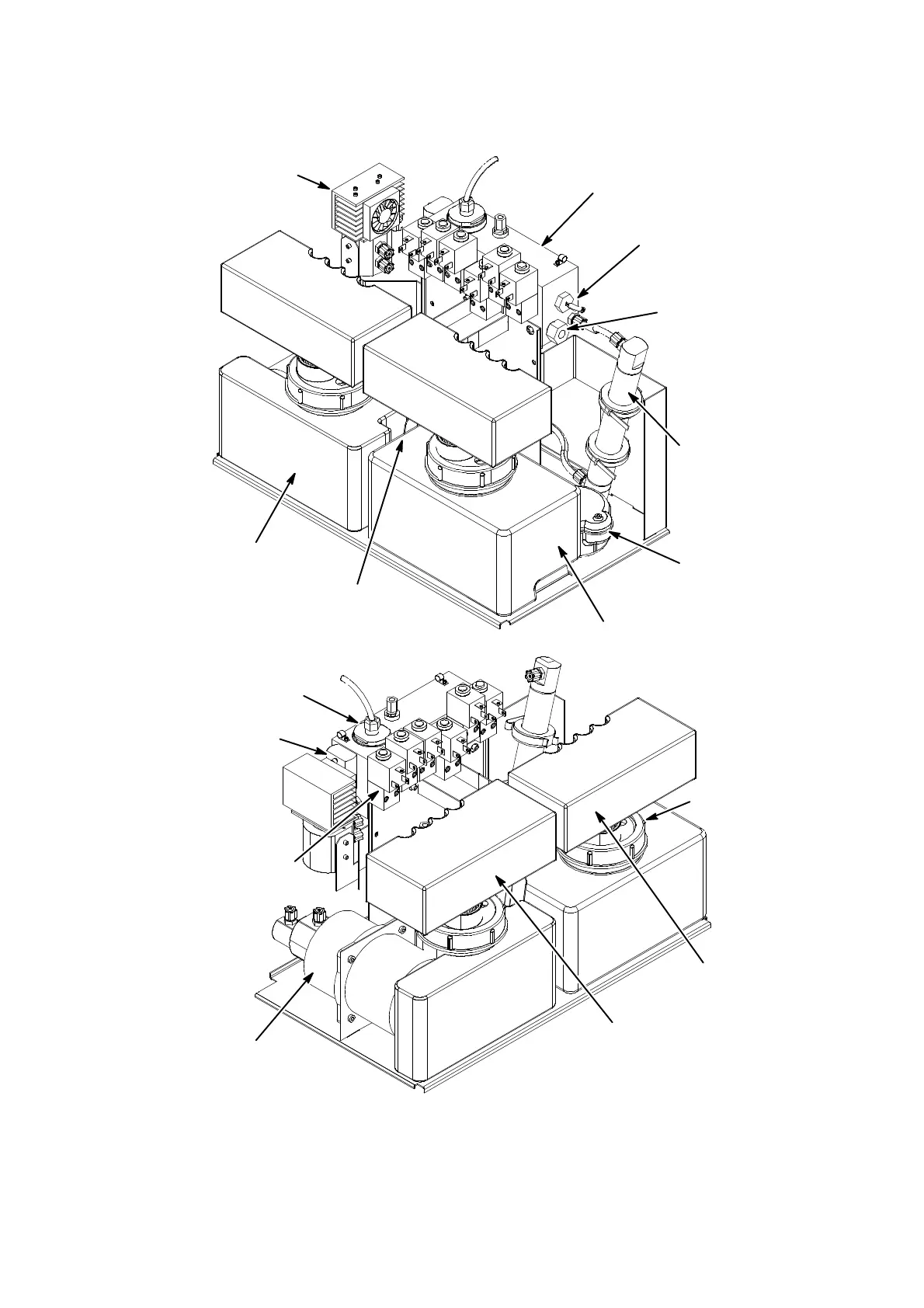

Ink System -- General Views
MG017_1
MG016_2
Ink
Cartridge
Make--up
Cartridge
Reservoir
Manifold
