OPTIONS
10--4 27080 Issue 1 Sept 98

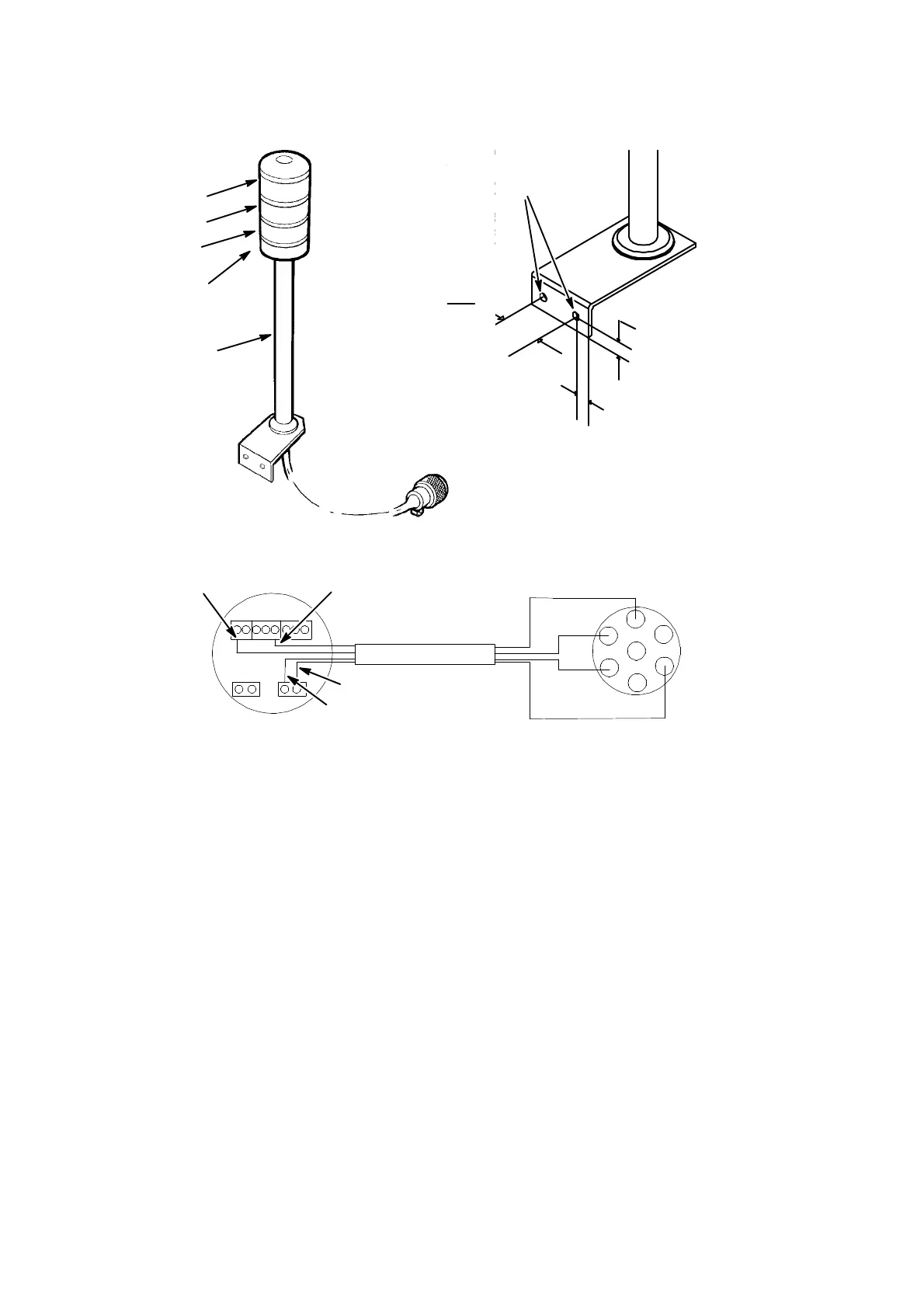

Mounting Dimensions
Alarm Beacon
Connector
(Rear View)
TP6069--1
MG160_1
1
2
3
4
5
5
6
1
2
3
4
7
hole dia. 5.5mm
15mm
45mm
12.5mm
123 456c
9
107
8
BL
BN
B
K
Y
L
BN
BL
Y
L
B
K
Beacon
(Rear View)
MG150_2
Spares list: Beacon Assy IP65 240V (G/R/A), Part No. 30606
Beacon Assy IP65110V (G/R/A) Part No.
30607
Item Part No. Description Qty
1 10724 Green Lens Unit IP65 1
2 10723 Red Lens Unit IP65 1
3 10725 Amber Lens Unit IP65 1
4 10727 Bulb 220/240V Filament BA15D 3
or 10728 Bulb 110/125Z Filament BA15D 3
5 30625 Beacon Fitting Kit 240V 2Flash 1
or 30627 Beacon Fitting Kit 110V 2Flash 1
To Next Page
