English–PACE5000/6000 Instruction Manual | 51
Supervisor Setup
The Ethernet connection provides the following functionality:
• PACE Ethernet supports both VXI-II and Sockets automatically.
• Socket port address 5025.
• Internet protocol IP4.
To configure the Ethernet connection:

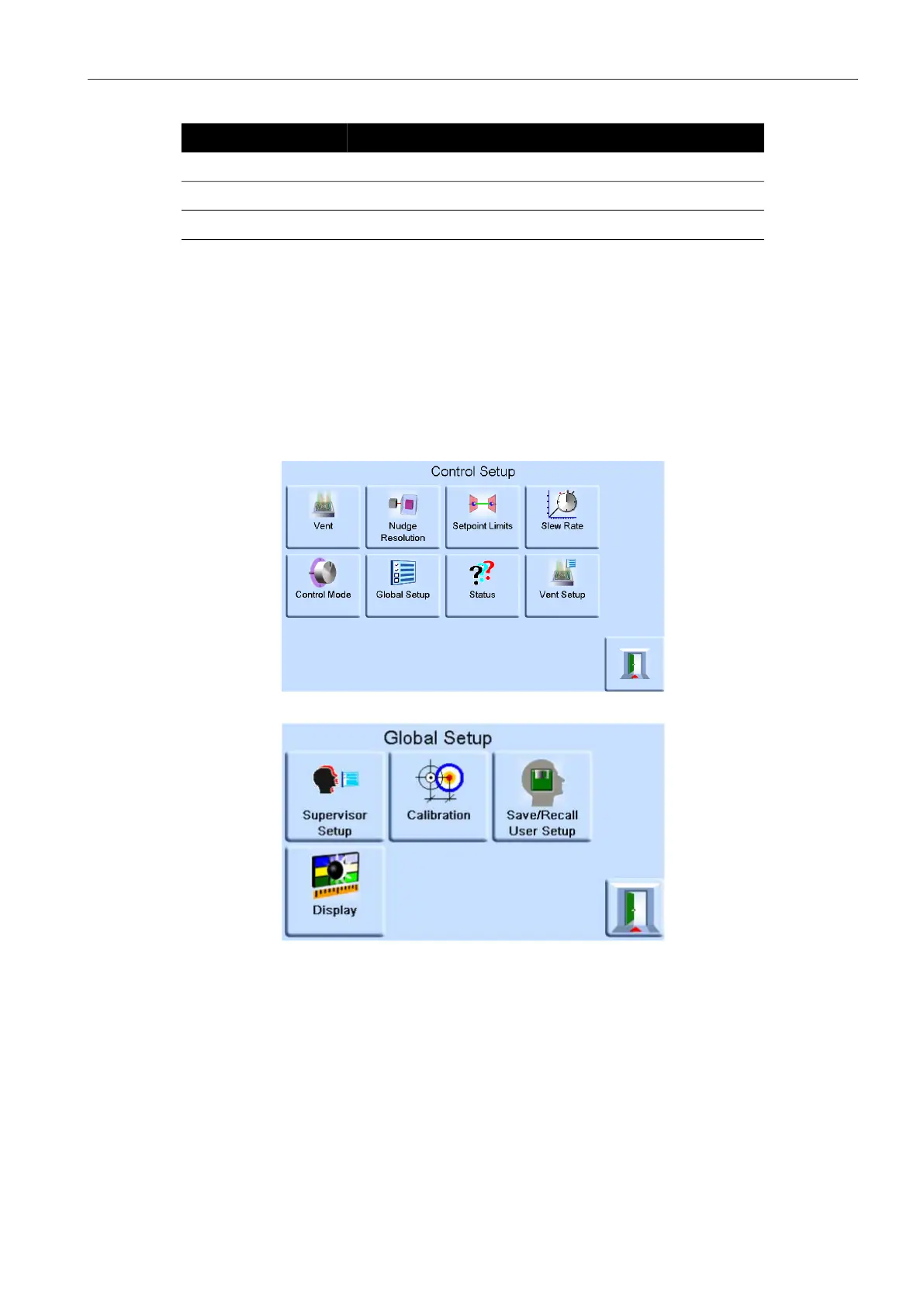

1. Touch any of the three horizontal Measure touch pads on the home screen to open the
CONTROL SETUP screen
2. On the CONTROL SETUP screen, select GLOBAL SETUP.
3. Select SUPERVISOR SETUP.
443/tcp PACE Web server (https).
5025/tcp SCPI communication socket.
****/tcp VXI-11 communication (dynamically allocated).
Table 6-4: Open Ethernet Ports
Ethernet Port Use
