220

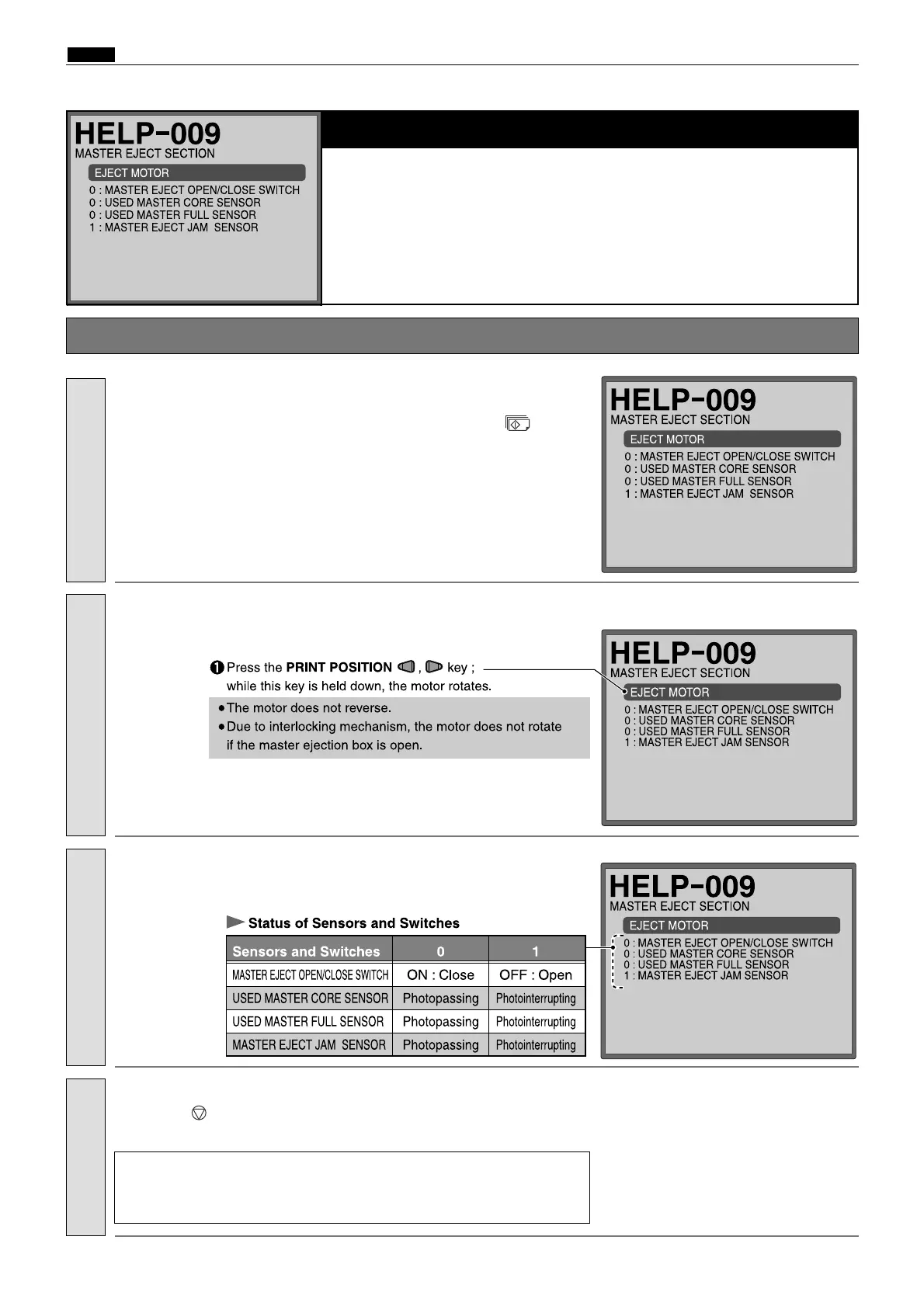

c HELP Mode Function and Operation Procedures
chap.7
Adjusting/Checking the Master Ejection Section
Page 1 :
2
Check operation.
EJECT MOTOR
2
Checking sensors.
MASTER EJECT OPEN/CLOSE SWITCH / USED MASTER CORE SENSOR /
USED MASTER FULL SENSOR / MASTER EJECT JAM SENSOR
¡ Operation procedure
1.
3.
2.
Check operation.
Check operation.
4.
Enter
009
by the
NUMERIC
keys and then press the
(PRINT)
key.
Call the HELP mode
H-009
.
a
To exit the HELP mode
: Turn the power switch OFF.
a
To access another HELP mode
:
Enter the desired mode number
using the numeric keys.
Press the (STOP) key.
The HELP mode selection display will reappear.
Return to the HELP mode.
Check the following sensors and switches.
Checking sensors/switches.
