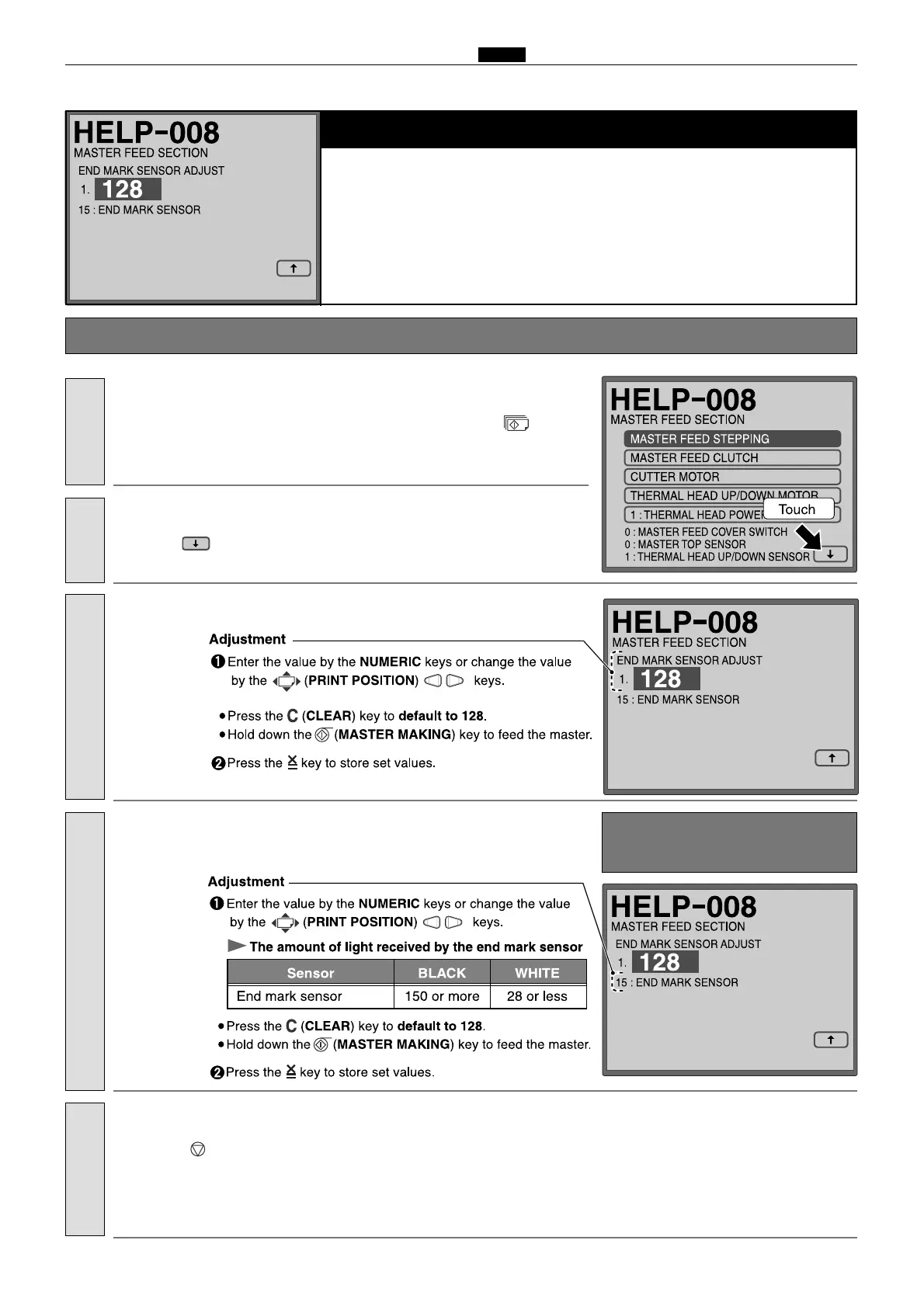

219
c HELP Mode Function and Operation Procedures
chap.7
(2)
Adjusting/Checking the master feed section
(2 pages in total)
Page 2 :
2
End mark sensor adjust.
2
Checking sensor.
END MARK SENSOR
¡ Operation procedure
1.
Enter
008
by the
NUMERIC
keys and then press the
(PRINT)
key.
Call the HELP mode
H-008
.
2.
Touch the
(
arrow
)
on the screen lower right once to switch to Page 2.
Change the screen.
3.
Adjust the end mark sensor.
5.
4.
To display the amount of light received by the end mark sensor:
Checking sensors.
¡
For adjustment, check that the master is
not slackened. If it is slackened, the value
changes; proper adjustment is not made.
Press the (STOP) key.
The HELP mode selection display will reappear.
Return to the HELP mode.
