Maintenance

Service Instructions 1767 - 00.0 - 12/2016 111

20.2.2 Lubricating the gear

Lubricating the upper gear

Cover

• Remove the arm cover ( p. 15)

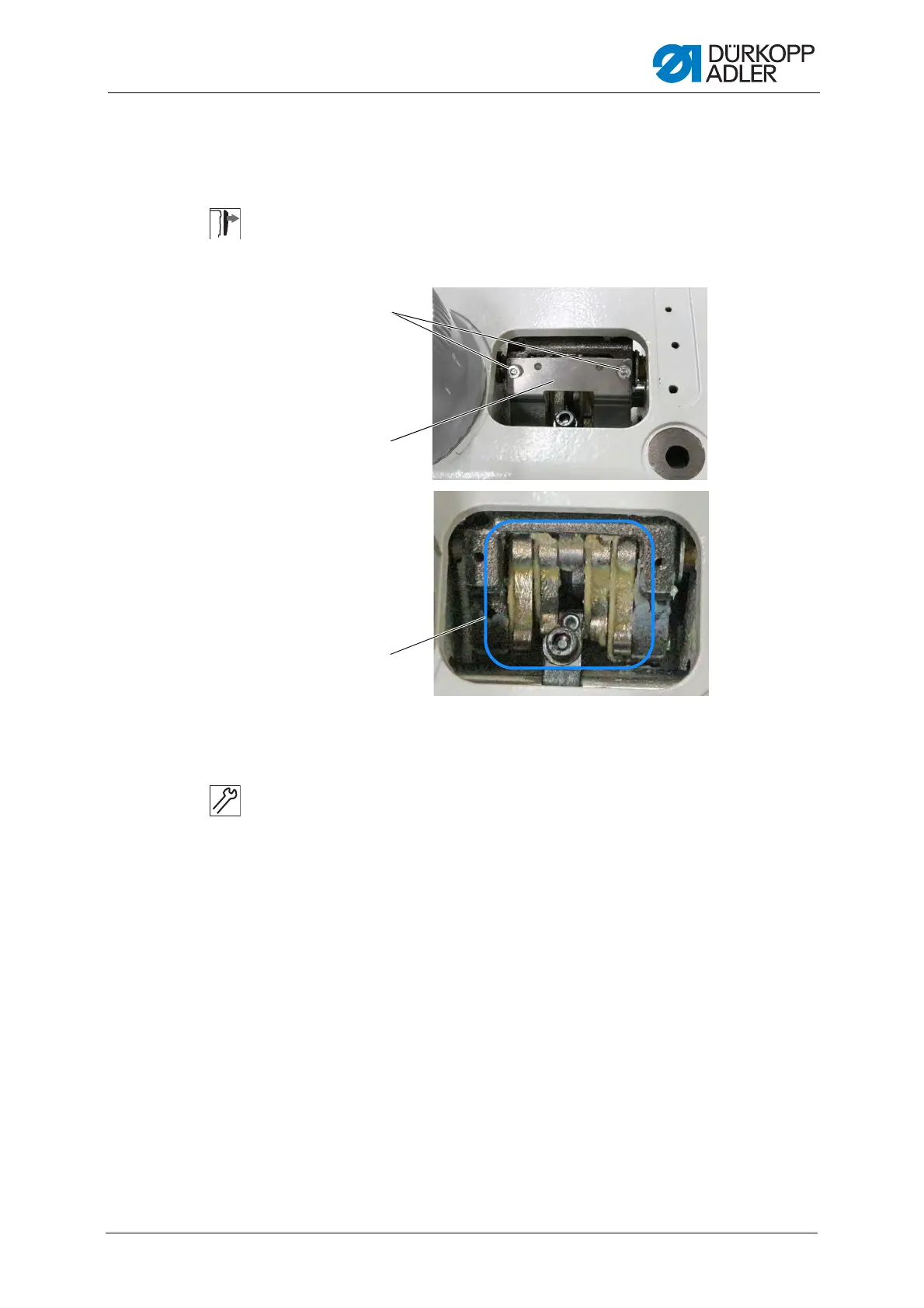

Fig. 79: Lubricating the upper gear

To lubricate the upper gear:

1. Loosen the screws (1).

2. Remove the plate (2).

3. Spread grease across the gear (3).

(1) - Screws

(2) - Plate

(3) - Gear

①

②

③
