Setting the stitch length adjusting wheel
40 Service Instructions 1767 - 00.0 - 12/2016
8.2 Setting the basic eccentric setting for forward stitch and
backward stitch
Cover
• Tilt the machine head ( p. 14)

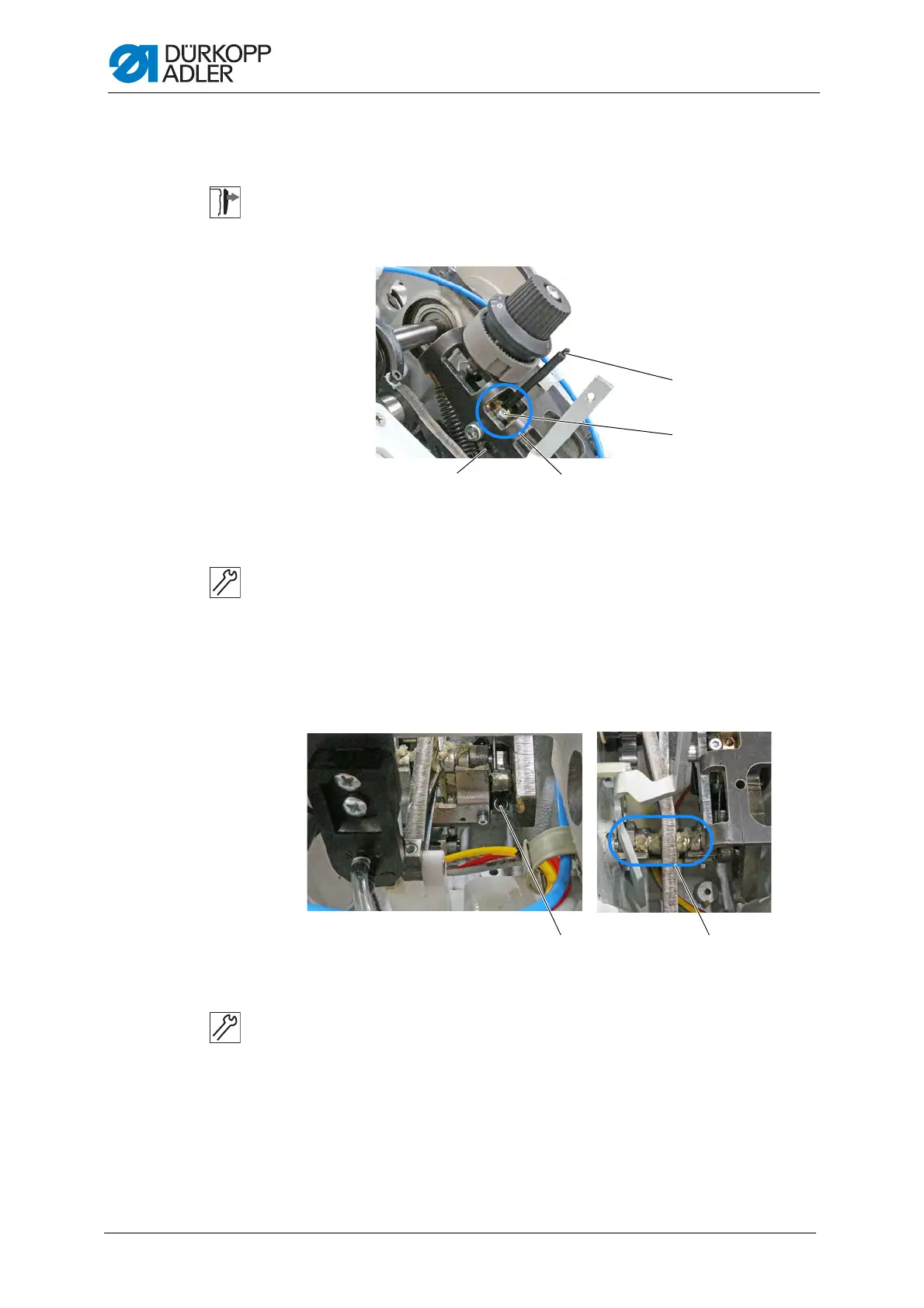

Fig. 26: Setting the basic eccentric setting for forward stitch and backward stitch (1)
To set the basic eccentric setting for forward stitch and backward stitch:
1. Set the stitch length adjusting wheel to 0.
2. Loosen the screw (1).
3. Insert the locking pin (4) into the hole (3) and center it in the slot (2).
4. Tighten the screw (1).
Fig. 27: Setting the basic eccentric setting for forward stitch and backward stitch (2)
5. Tilt the machine ( p. 14).
6. Loosen the screw (5).
7. Set the clips (6) to parallel position.
8. Tighten the screw (5).
(1) - Screw
(2) - Slot
(3) - Hole
(4) - Locking pin
(5) - Screw (6) - Clips
