5. When doing so, ensure that the control panel cable is seated in the
slots (3) without being pinched.
6. Tighten the screws (1).
3.3.3 Removing and placing the head cover

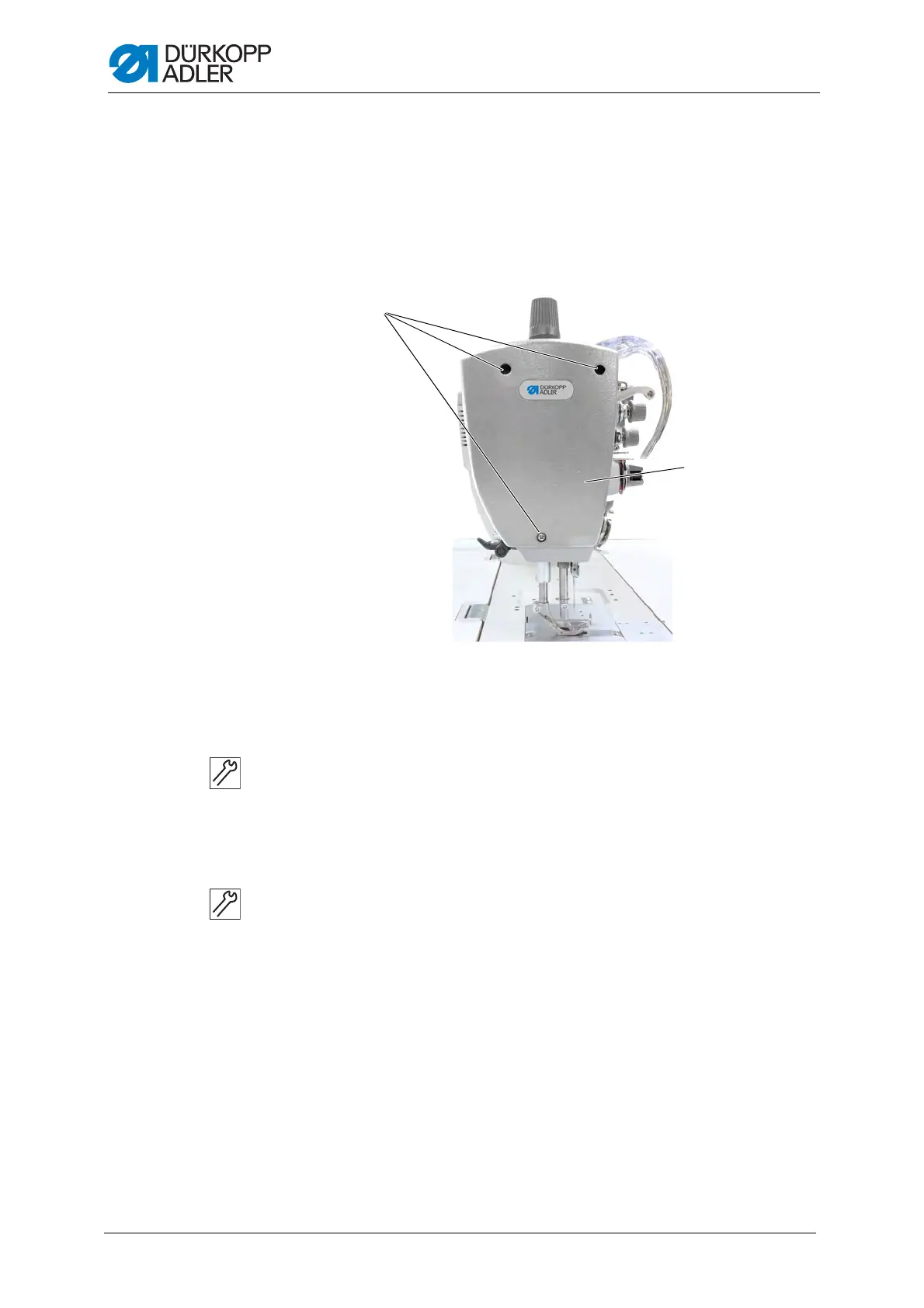

Fig. 3: Removing and placing the head cover
Removing the head cover
To remove the head cover:
1. Loosen the screws (1).
2. Remove the head cover (2).
Placing the head cover
To place the head cover:
1. Place the head cover (2).
2. Tighten the screws (1).
(1) - Screws (2) - Head cover
