DURKOPP ADLER 1767 Service Instructions

Working basis
Service Instructions 1767 - 00.0 - 12/2016 23
3.3.10 Disassembling and assembling the feed dog

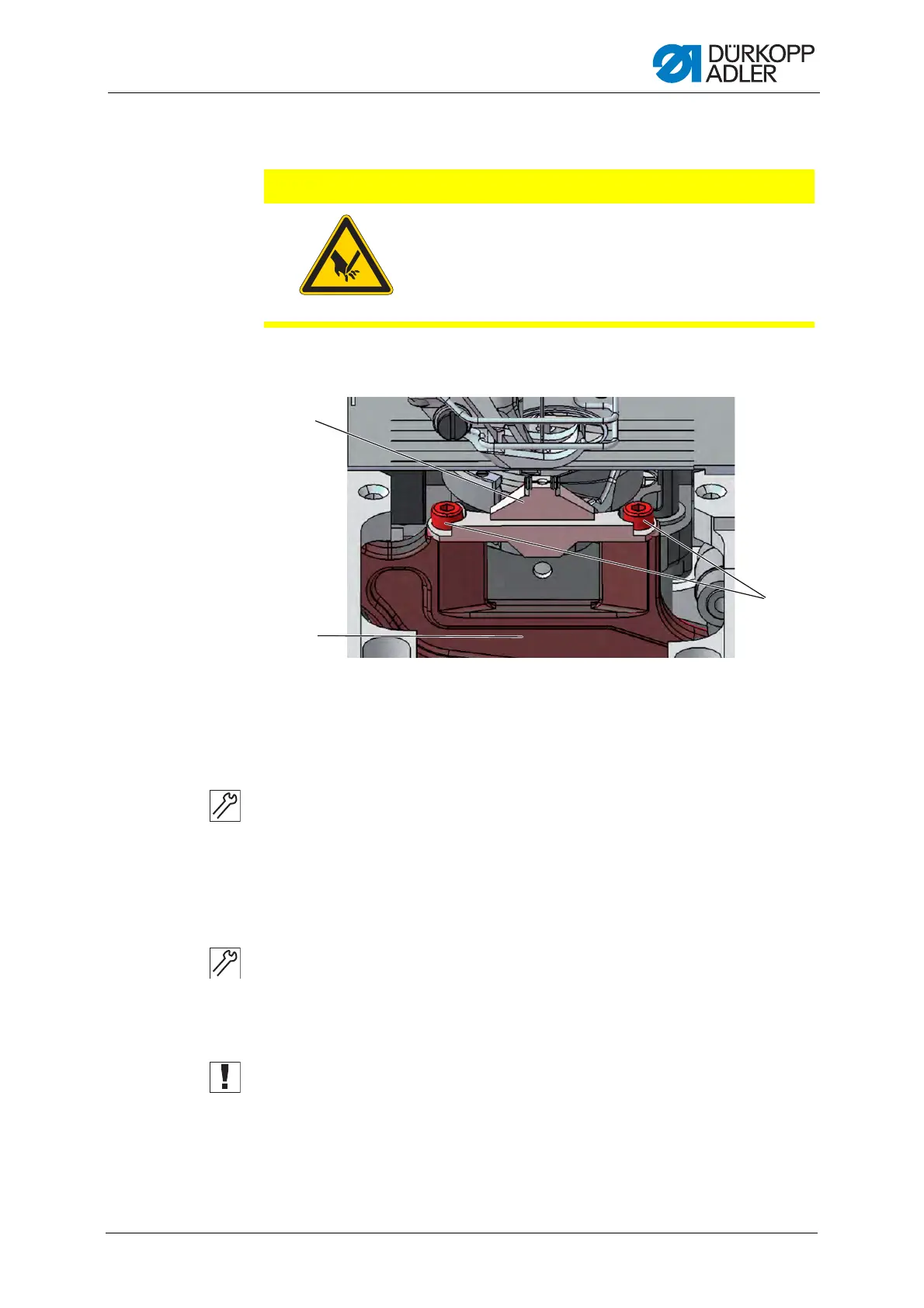

Fig. 10: Disassembling and assembling the feed dog
Disassembling the feed dog
To disassemble the feed dog:
1. Disassemble the throat plate ( p. 22).
2. Loosen the screws (3).
3. Take the feed dog (1) off the feed dog carrier (2).
Assembling the feed dog
To assemble the feed dog:
1. Place the feed dog (1) onto the feed dog carrier (2).
2. Tighten the screws (3).
3. Insert the throat plate ( p. 22).
Important
Check the feed dog position in its movement at maximum stitch length
(depending on the equipment: 6, 9 or 12) by turning the handwheel.
The feed dog must not hit against the throat plate.
CAUTION
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before you disassemble or
assemble the feed dog.
(1) - Feed dog
(2) - Feed dog carrier
(3) - Screws
2
3
1
