Working basis

Service Instructions 1767 - 00.0 - 12/2016 17

3.3.4 Removing and placing the rear cover

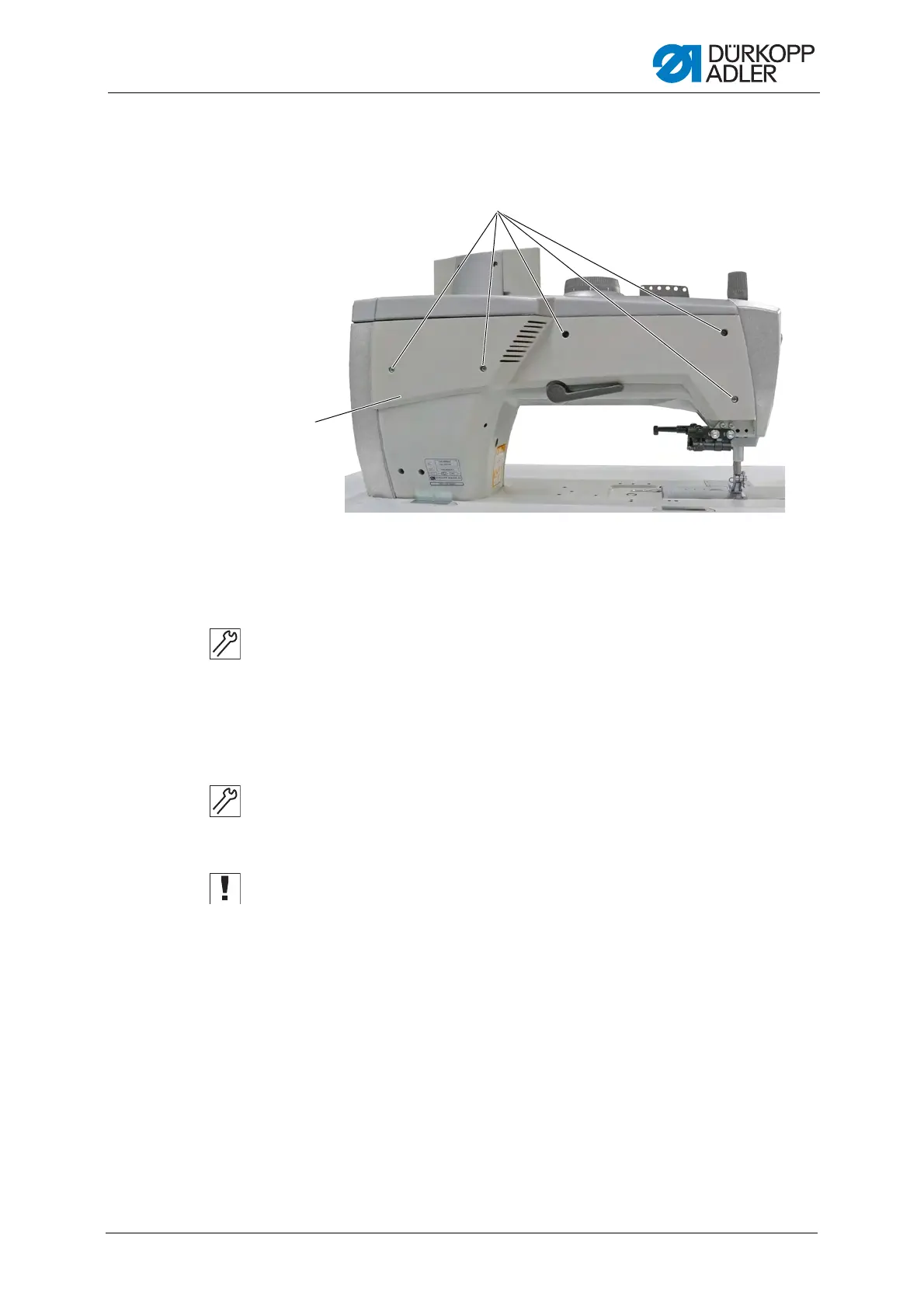

Fig. 4: Removing and placing the rear cover

Removing the rear cover

To remove the rear cover:

1. Loosen the screws (1).

2. Remove the rear cover (2).

Placing the rear cover

To place the rear cover:

1. Place the rear cover (2).

2. Tighten the screws (1).

Important

When placing the cover, make sure not to pinch any cables.

(1) - Screws (2) - Rear cover

②

①
