Winder
70 Service Instructions 1767 - 00.0 - 12/2016
15 Winder
15.1 Setting the winder
Proper setting
The winder wheel runs smoothly and without axial play.
The winding process will stop automatically when the required filling quantity
of the bobbin is reached.
Cover
• Remove the arm cover ( p. 15)
Disassembling the winder and setting the winder filling quantity

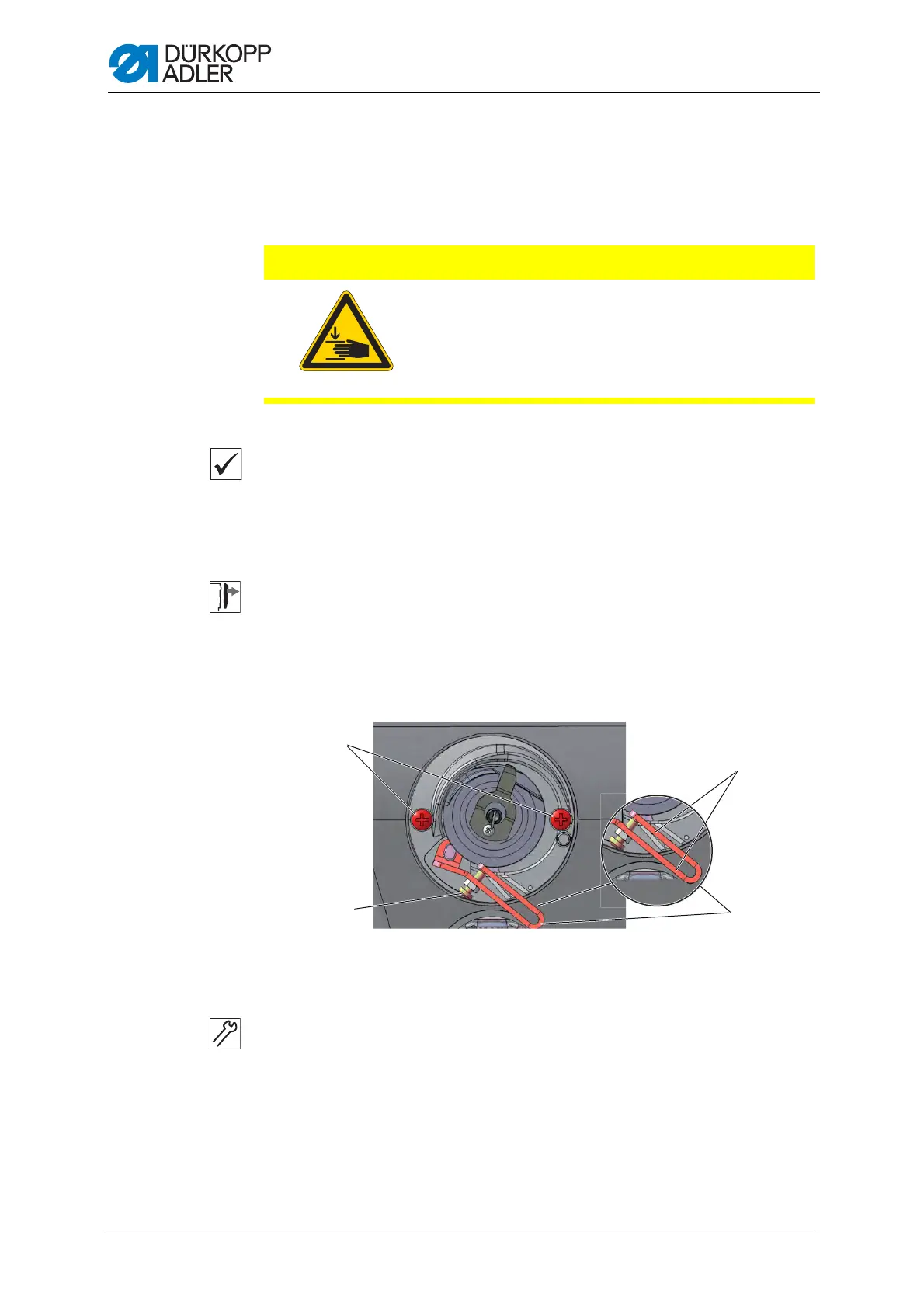

Fig. 54: Disassembling the winder and setting the winder filling quantity
To disassemble the winder and set the winder filling quantity:
1. Loosen the screws (1).
2. Remove the winder.
CAUTION
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before setting the winder.
(1) - Screws
(2) - Screw
(3) - Winder lever
(4) - Arm
2
3
4
1
