Feed dog
46 Service Instructions 1767 - 00.0 - 12/2016
The distance between the compensating weight (2) and the pull rod (3)
is approx. 1 mm.
3. Tighten the screw (1).
9.2.3 Setting the feed stroke eccentric
Cover
• Tilt the machine head ( p. 14)

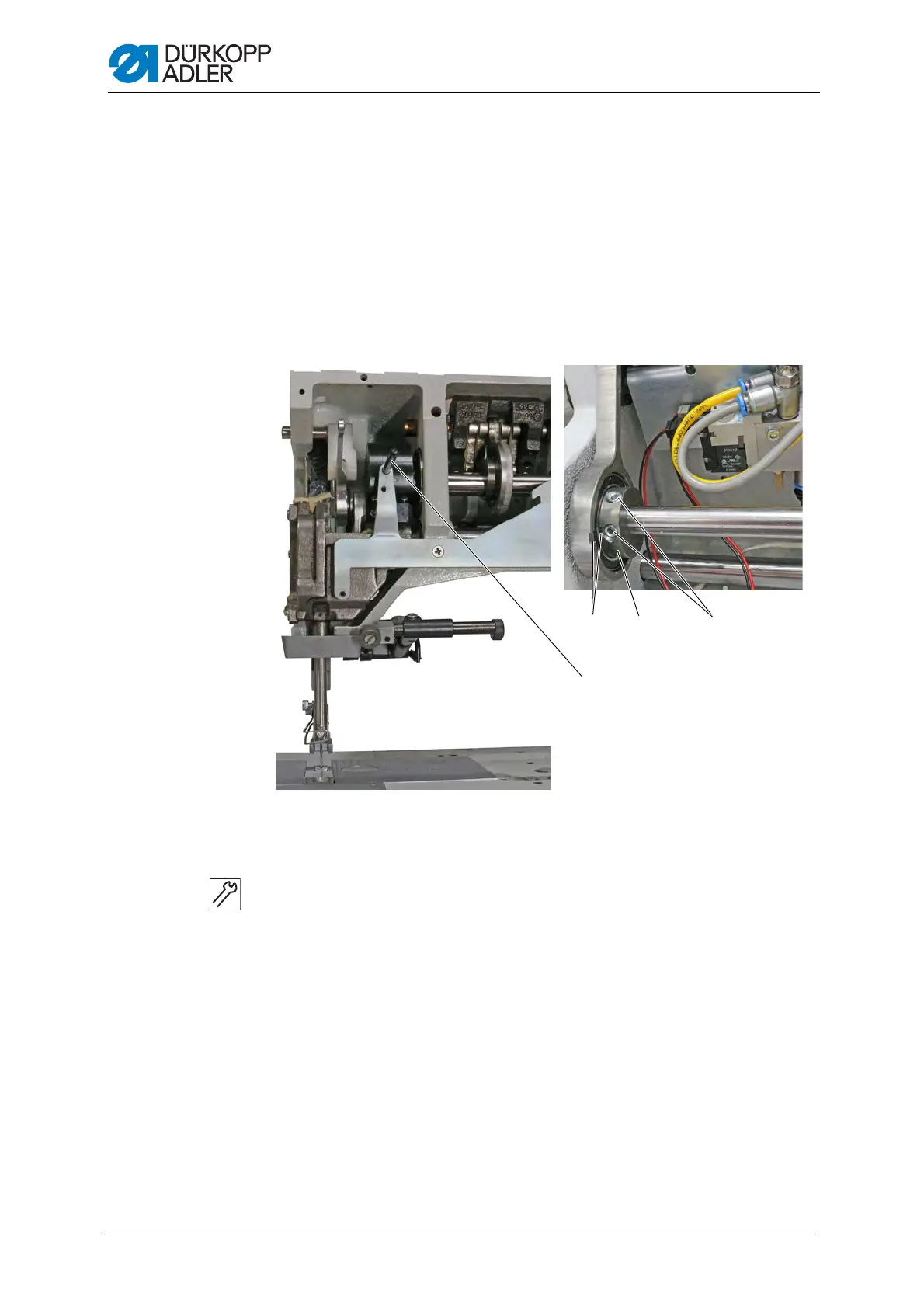

Fig. 32: Setting the feed stroke eccentric
To set the feed stroke eccentric:
1. Lock the machine in place in the loop stroke position using the locking
pin (1).
The needle is in the loop stroke position.
2. Loosen the screws (4) on the eccentric (3).
3. Turn the eccentric (3) until the markings (2) line up.
4. Tighten the screws (4).
(1) - Locking pin
(2) - Markings
(3) - Eccentric
(4) - Screws
