Feed dog
Service Instructions 1767 - 00.0 - 12/2016 43
9.1.2 Moving the feed dog carrier
The feed dog carrier is connected to the stitch regulator gear via the sliding
shaft, and can be moved on this shaft.
Cover
• Tilt the machine head ( p. 14)

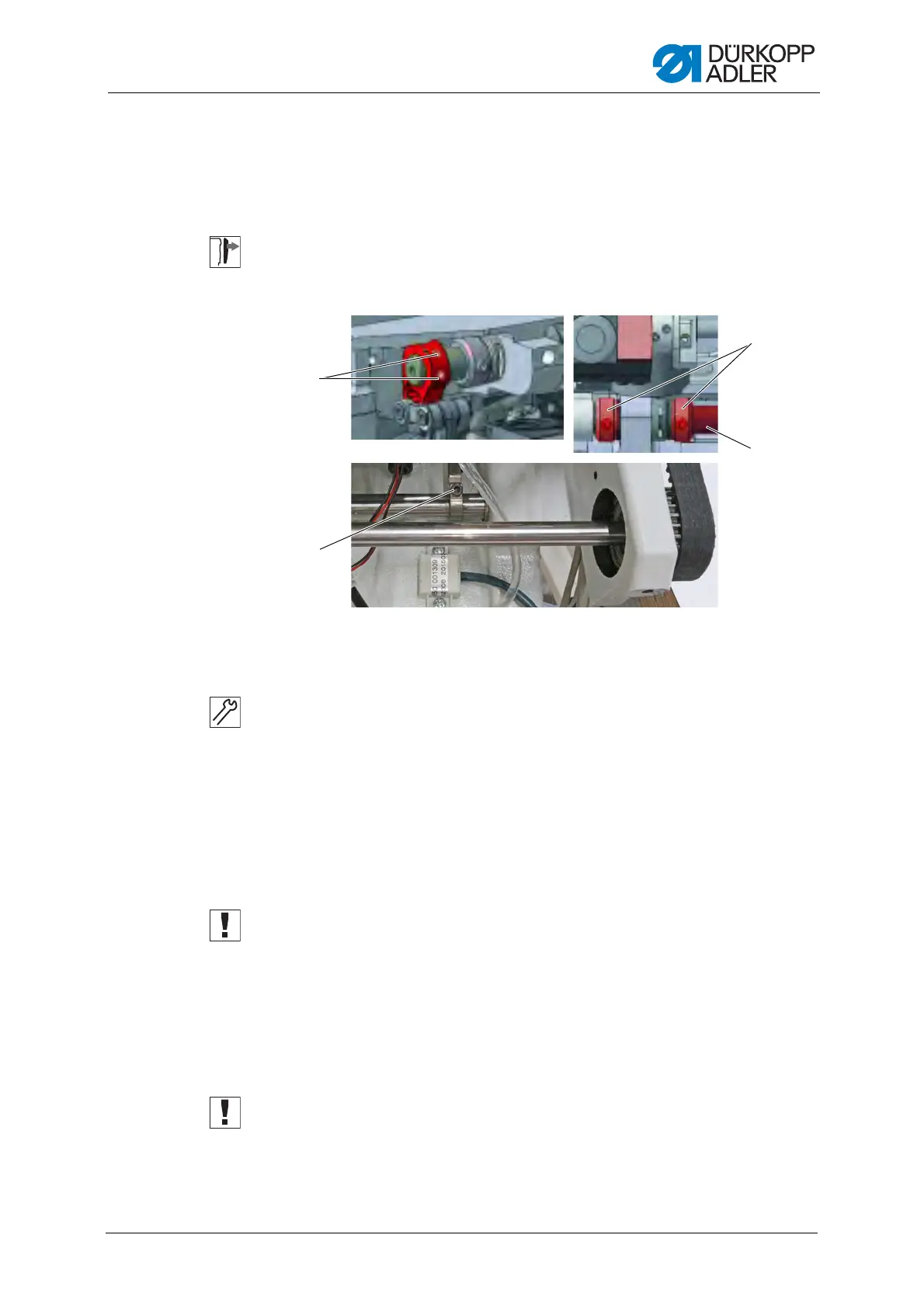

Fig. 29: Moving the feed dog carrier
To move the feed dog carrier:
1. Set the stitch length adjusting wheel to 0.
2. Loosen the screws (1).
3. Loosen the screw (2).
4. Loosen the threaded pins for the adjusting rings (4).
5. Move the feed dog carrier perpendicular to the sewing direction so that
the feed dog is exactly in the center of the throat plate cutout.
6. Push the adjusting rings (4) toward each other as far as they will go.
Important
Make sure that the sliding shaft (3) is tightened by the adjusting rings.
7. Tighten the threaded pins for the adjusting rings (4).
8. Move the feed dog carrier in the sewing direction such that the feed
dog is exactly in the center of the throat plate cutout.
9. Tighten the screw (2).
10. Tighten the screws (1).
Important
Make sure that the feed dog height has the proper setting ( p. 46).
(1) - Screws
(2) - Screw
(3) - Sliding shaft
(4) - Adjusting rings
