Setting the handwheel scale
Service Instructions 1767 - 00.0 - 12/2016 33
6 Setting the handwheel scale
Proper setting
1. Lock the machine in place at position 2 ( p. 24).
The handwheel is at position 0°.
If a different degree number is next to the marking (2) then you will
have to reset the graduated scale.
Cover
• Remove the arm cover ( p. 15)
• Remove the front cover ( p. 18)
• Remove the belt cover ( p. 20)

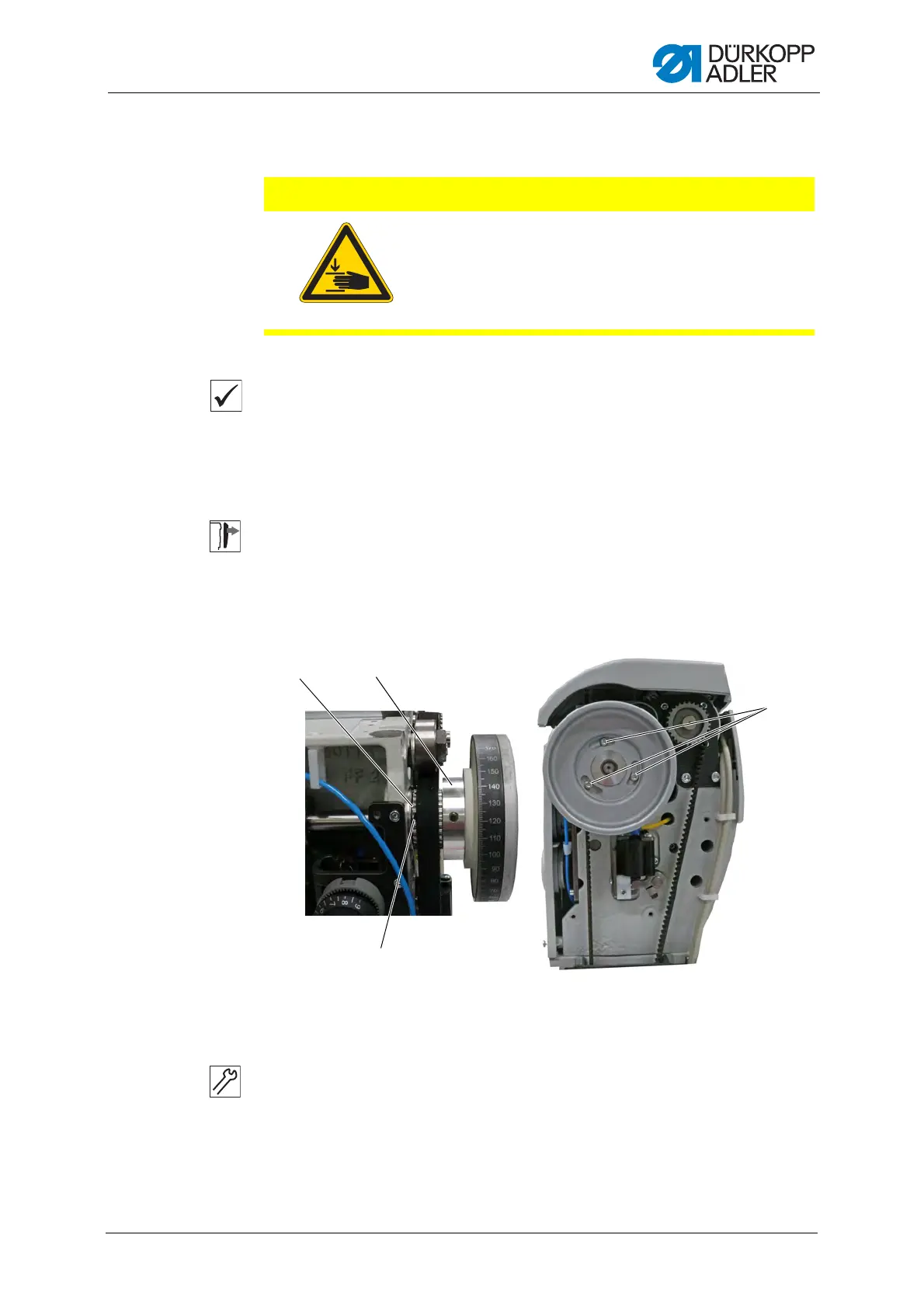

Fig. 20: Setting the handwheel scale (1)
To set the handwheel scale:
1. Place the handwheel flange (1) on the shaft.
The handwheel flange (1) abuts on the toothed belt wheel (2).
2. Loosen the screws (3).
CAUTION
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you check and set
the position of the handwheel on the arm shaft.
(1) - Handwheel flange
(2) - Toothed belt wheel
(3) - Screws
(4) - Screws
