Sewing feet
Service Instructions 1767 - 00.0 - 12/2016 65
To set the stroke movement for the feeding foot:
1. Lock the machine in place at position 1 ( p. 24).
2. Loosen the 2 screws (1) on the eccentric (2).
3. Turn the eccentric (2) until the markings (3) and (4) are parallel to one
another.
4. Tighten the screws (1).
5. Remove the lock.
13.2 Setting an even sewing foot stroke
Proper setting
For sewing foot stroke 3, the presser foot and feeding foot are raised by
the same height.
Cover
• Remove the arm cover ( p. 15)

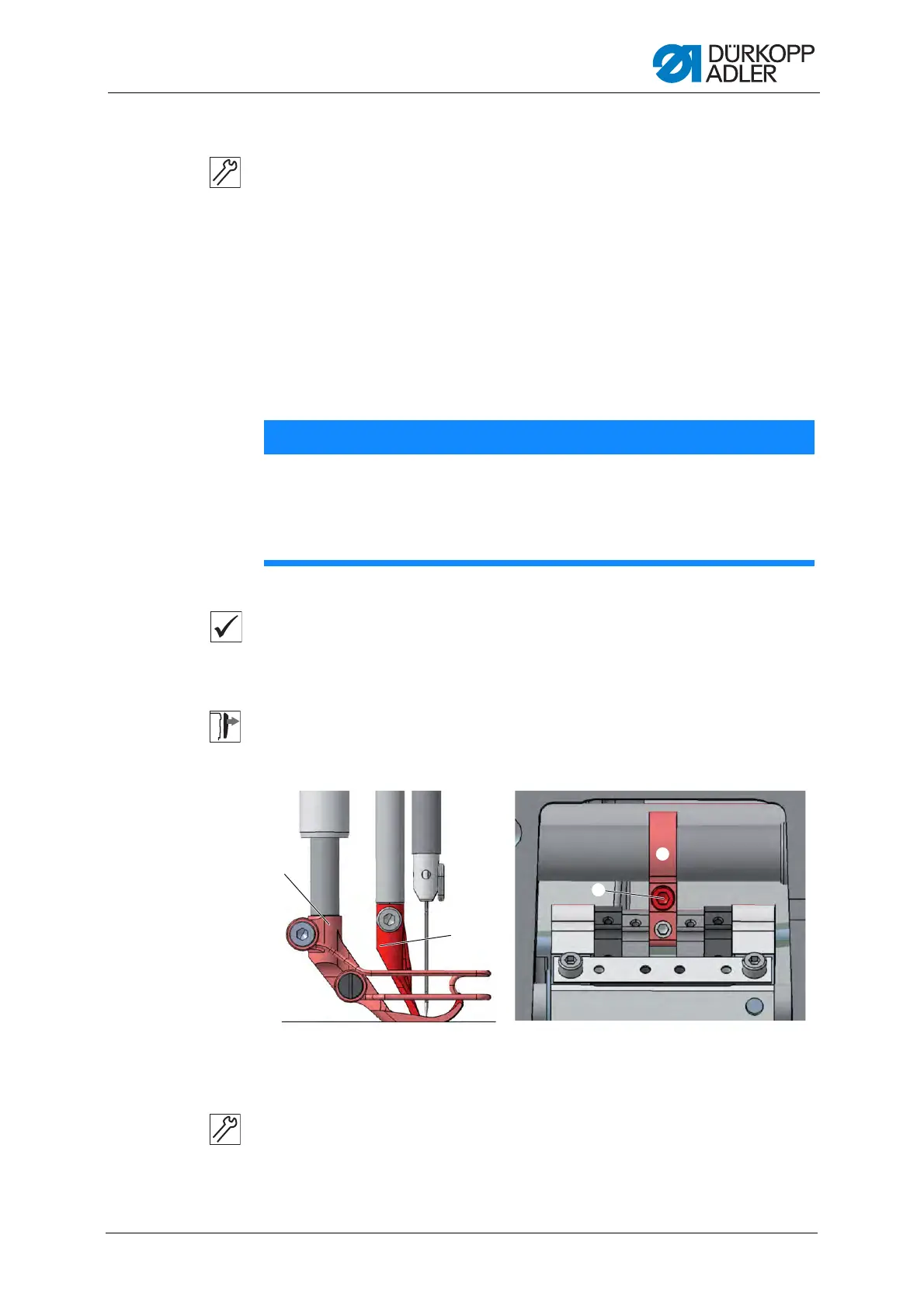

Fig. 50: Setting an even sewing foot stroke
To set an even sewing foot stroke:
1. Check the sewing foot stroke.
2. Loosen the screw (3).
NOTICE
Property damage may occur!
Machine can be damaged if the adjusting wheels are forced.
Do not attempt to use force to set a smaller sewing foot stroke at the
right adjusting wheel.
(1) - Presser foot
(2) - Feeding foot
(3) - Screw
(4) - Sewing foot lever
1
2
3
4
