DURKOPP ADLER 1767 Service Instructions

Working basis
20 Service Instructions 1767 - 00.0 - 12/2016
6. Tighten the thread guide (2).
7. Tighten the thread regulator.
8. Place the front cover ( p. 18).
9. Place the arm cover ( p. 15).
3.3.7 Removing and placing the belt cover

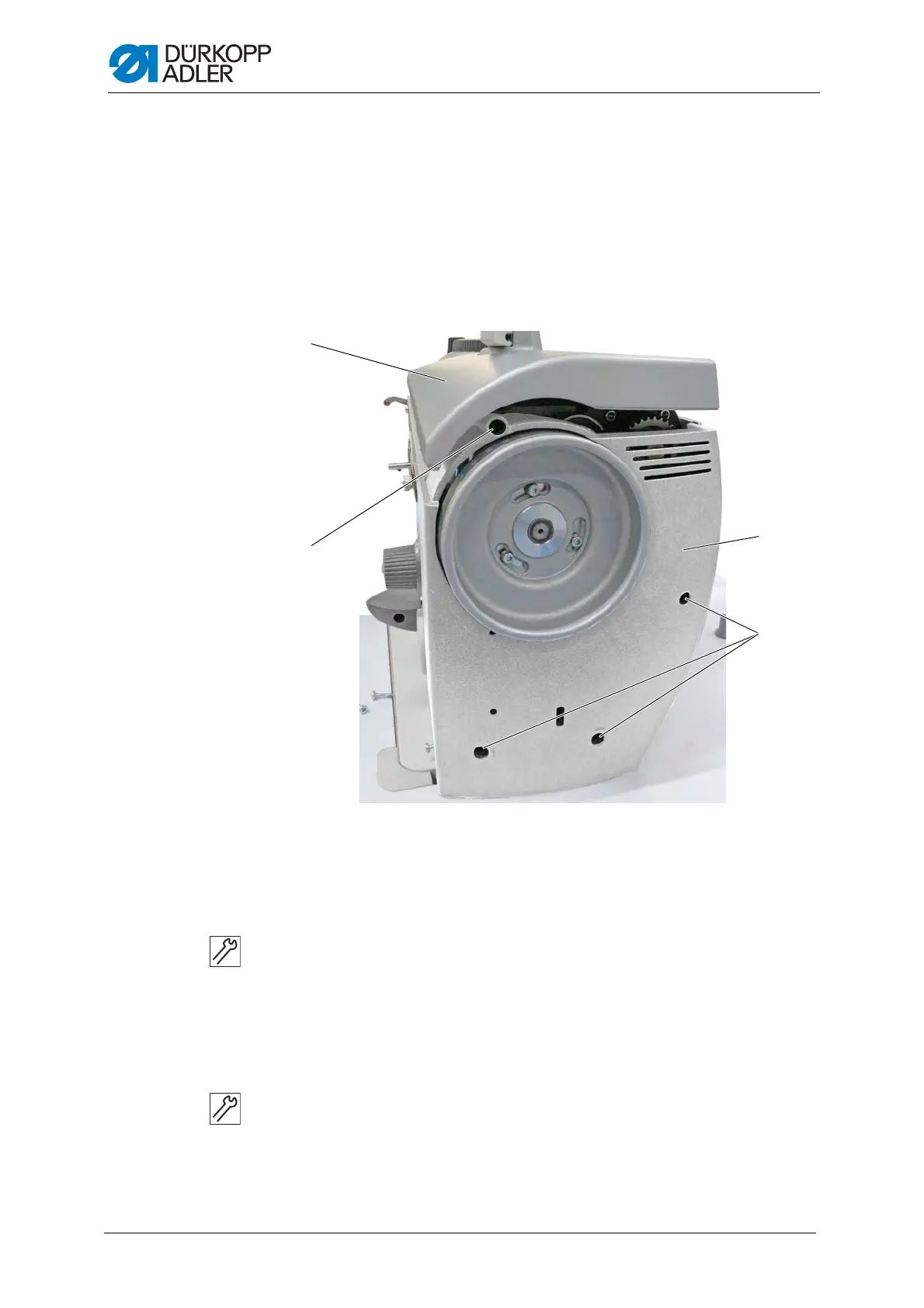

Fig. 7: Removing and placing the belt cover
Removing the belt cover
To remove the belt cover:
1. Loosen and slightly raise the arm cover (1).
2. Loosen screws (2) and (3).
3. Remove the belt cover (4).
Placing the the belt cover
To place the belt cover:
1. Place the belt cover (4).
2. Tighten screws (2) and (3).
(1) - Arm cover
(2) - Screw
(3) - Screws
(4) - Belt cover
③
①
②
④
