Positioning the toothed belt wheels
32 Service Instructions 1767 - 00.0 - 12/2016
5.4 Setting the toothed belt tension
Cover
• Remove the belt cover ( p. 20)

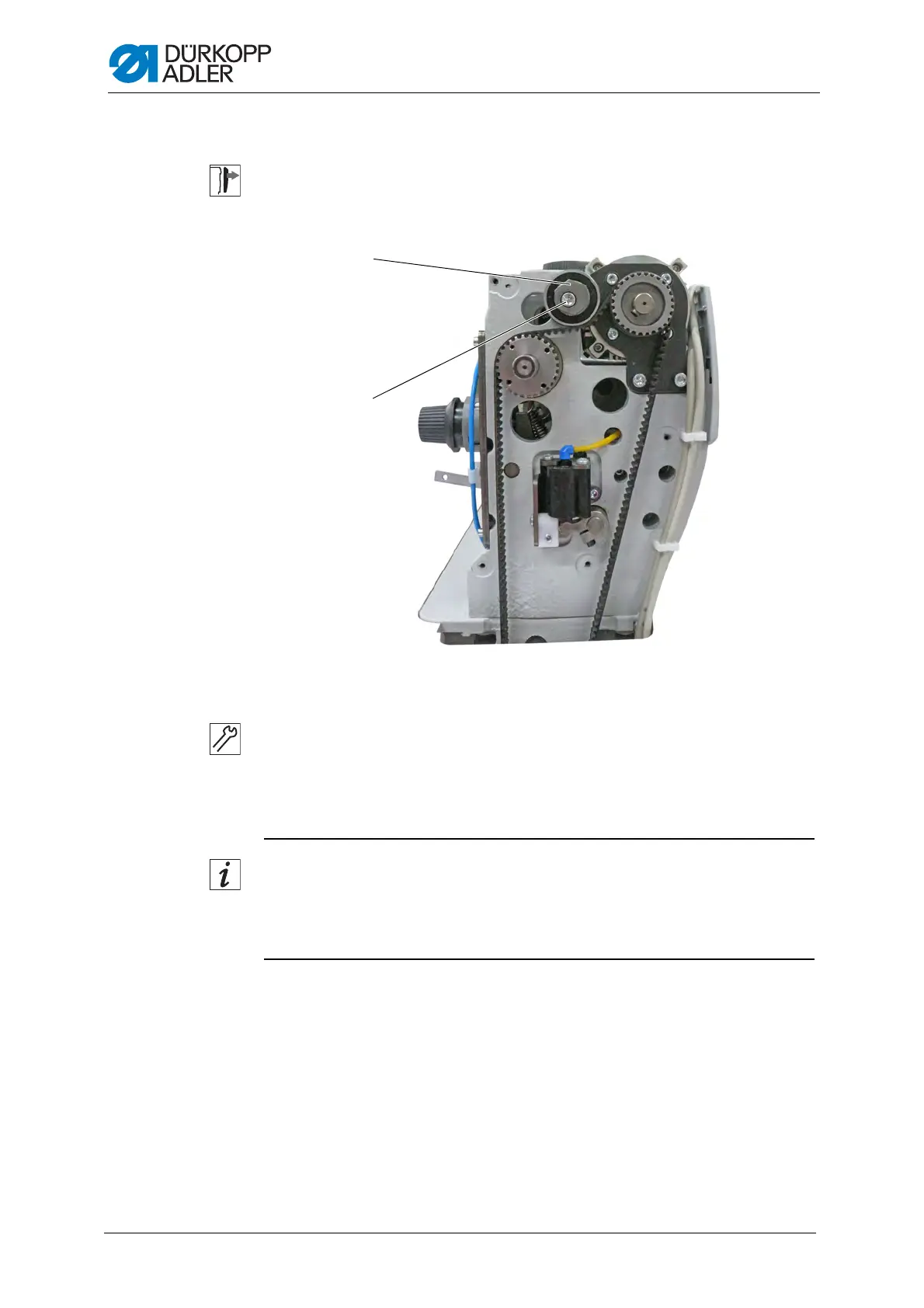

Fig. 19: Setting the toothed belt tension
To set the toothed belt tension:
1. Loosen the screw (2).
2. Turn the eccentric (1).
3. Check and, if necessary, readjust the toothed belt tension.
Information
The toothed belt tension is set to the optimum value when the belt oscillates
at 75 Hz. Check the oscillation, for instance, using a device made by
Contitech.
4. Tighten the screw (2).
(1) - Eccentric (2) - Screw
