Winder

Service Instructions 1767 - 00.0 - 12/2016 73

15.2 Setting the winder wheel

Cover

• Remove the front cover ( p. 18)

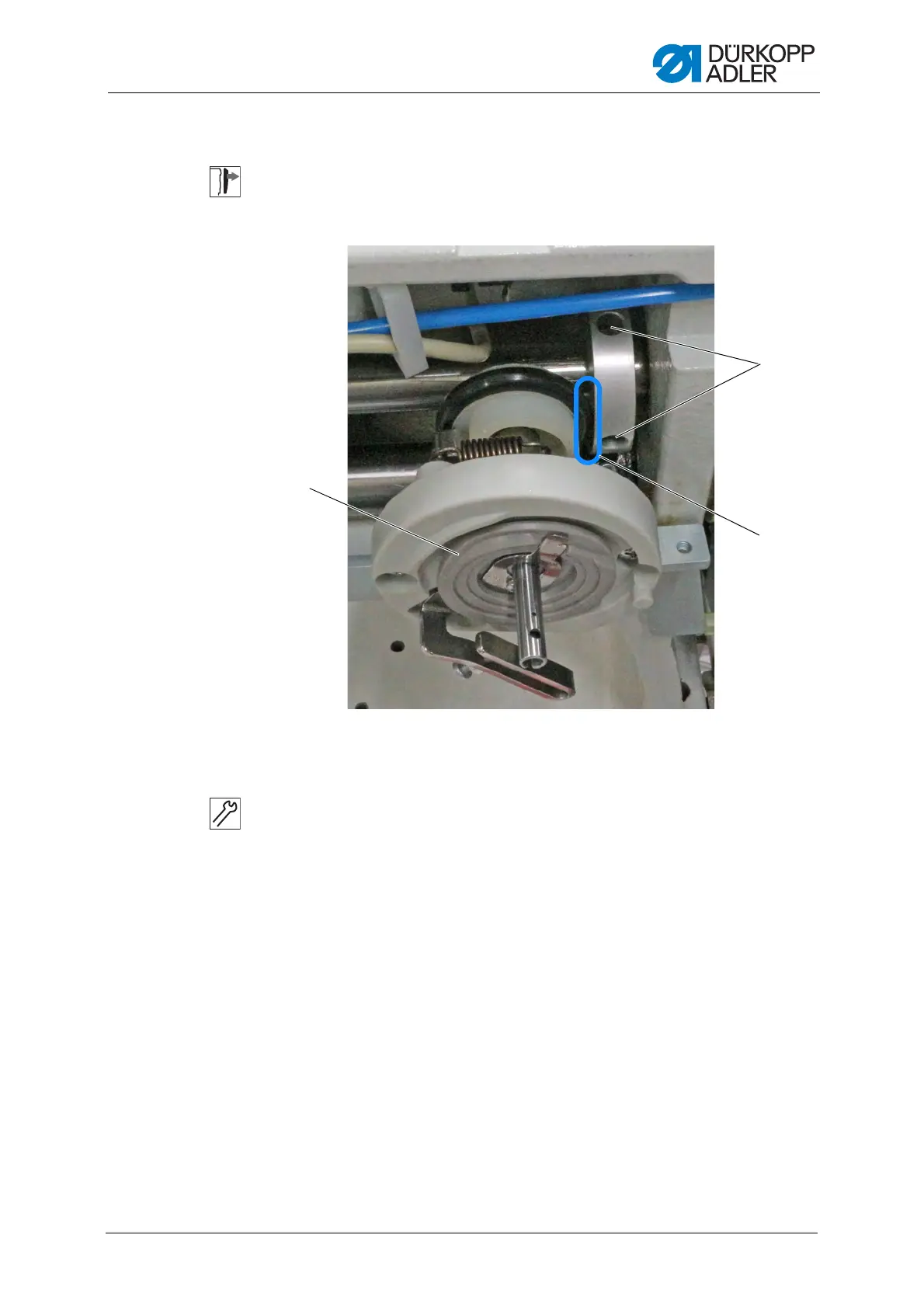

Fig. 58: Setting the winder wheel

To set the winder wheel:

1. Loosen the screws (3).

2. Switch off the winder (1).

3. Set the distance (2) between the wheels to 0.8 mm.

4. Tighten the screws (3).

(1) - Winder

(2) - Distance

(3) - Screws

①

②

③
