DURKOPP ADLER 1767 Service Instructions

Winder
72 Service Instructions 1767 - 00.0 - 12/2016
Setting the winder run and automatic stop

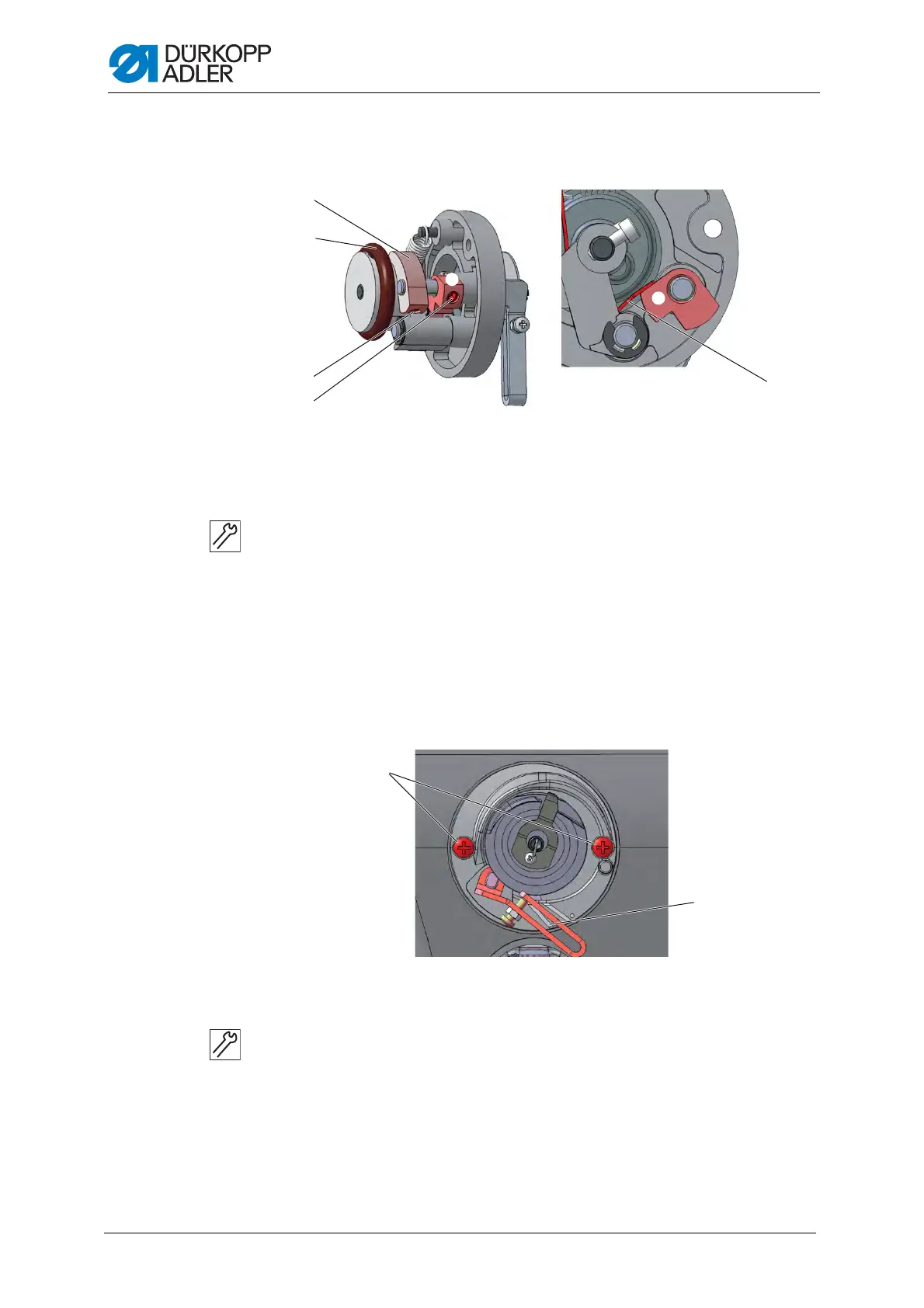

Fig. 56: Setting the winder run and automatic stop
To set the winder run and the automatic stop:
12. Loosen the threaded pin (8).
13. Set the switch cam (9) such that it is just contacting the leaf spring (10)
when the block (5) has engaged in the locking disk.
14. Set the switch cam (9) such that the winder lever (3) has no axial play.
15. Tighten the threaded pin (8).
Assembling the winder
Fig. 57: Assembling the winder
To assemble the winder:
16. Place the winder on the machine arm.
17. Tighten the screws (1).
(5) - Block
(6) - Winder wheel
(7) - Threaded pin
(8) - Threaded pin
(9) - Switch cam
(10) - Leaf spring
6
8
9
9
0
5
7
(1) - Screws (2) - Marking for XXL hook
1
.
