Aligning the needle bar linkage
Service Instructions 1767 - 00.0 - 12/2016 51
10.2 Aligning the needle bar linkage in the sewing direction
Cover
• Remove the front cover ( p. 18)
• Tilt the machine head ( p. 14)

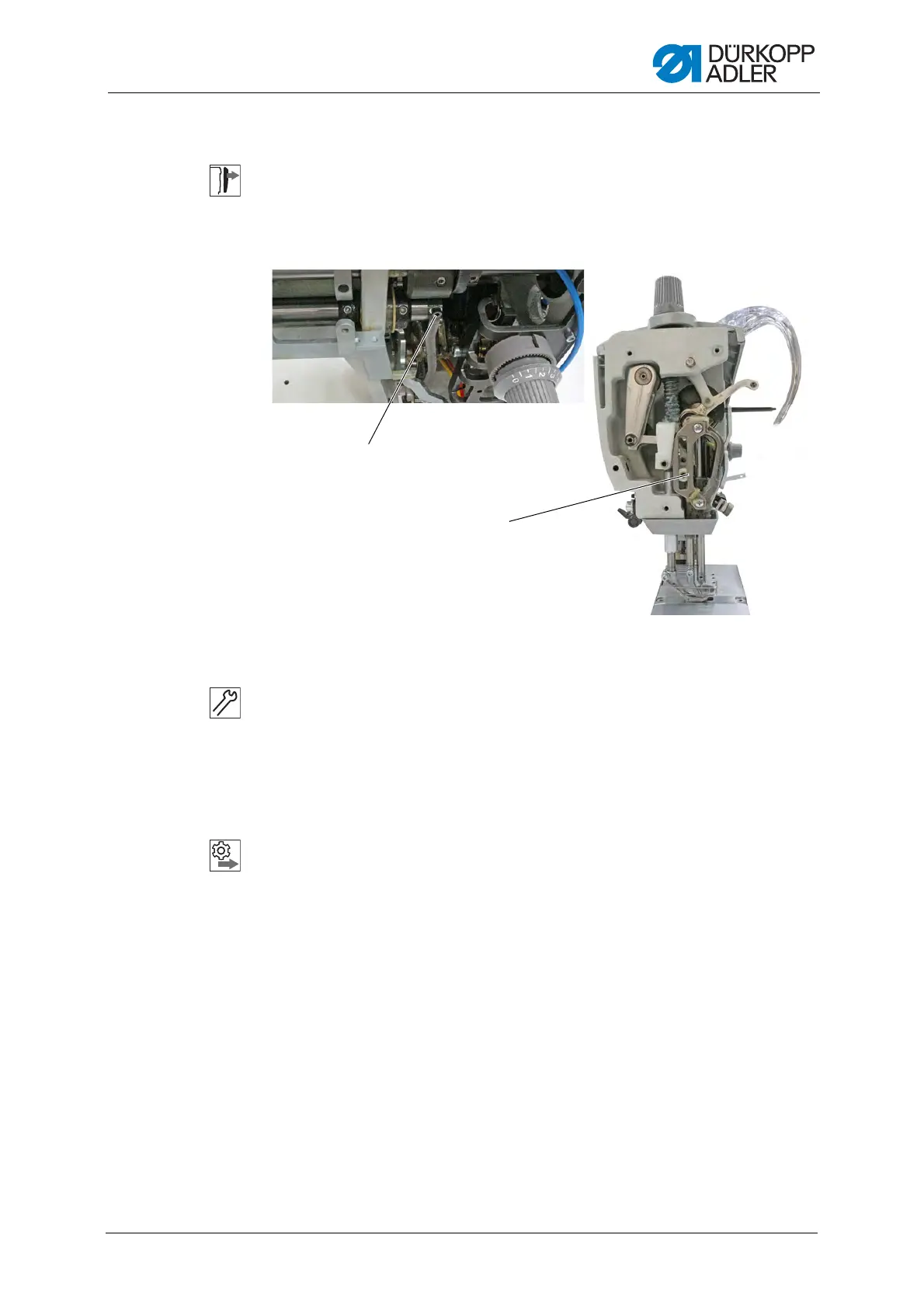

Fig. 37: Aligning the needle bar linkage in the sewing direction
To align the needle bar linkage in the sewing direction:
1. Loosen the screw (1).
2. Move the needle bar linkage (2) such that the needle pierces in the
center of the needle hole.
3. Tighten the screw (1).
Order
Then check the following setting:
• Loop stroke position ( p. 54)
(1) - Screw (2) - Needle bar linkage
