Aligning the needle bar linkage
50 Service Instructions 1767 - 00.0 - 12/2016

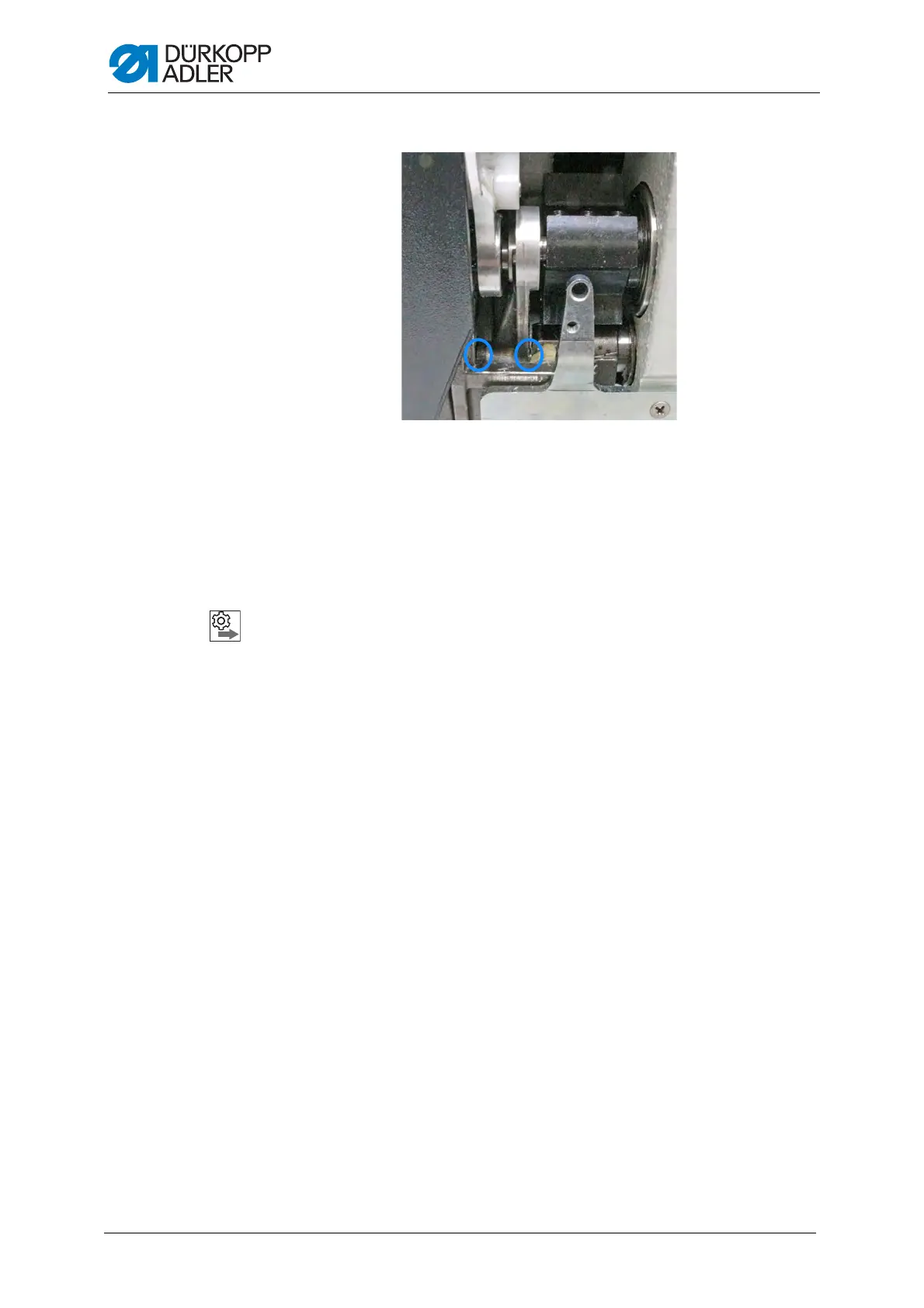

Fig. 36: Aligning the needle bar linkage sideways (3)
8. Align the thread lever (5) relative to the arm shaft crank (9).
There is an equal amount of space on either side.
Once the tensioning plate has been assembled, the thread lever (5)
is positioned in the center of the slot.
9. Tighten both threaded pins (8) on the arm shaft crank (9).
Order
Then check the following settings:
• Distance between hook and needle ( p. 52)
