Sewing feet
Service Instructions 1767 - 00.0 - 12/2016 67
13.4 Setting the sewing foot lifting height
When the pedal is pressed back halfway, the sewing feet can be raised
during sewing, e. g. to move the sewing material.
When the pedal is pressed completely back, the sewing feet will be raised
after the thread is cut so that the sewing material can be exchanged.
Proper setting
The distance between the raised sewing feet and the throat plate is preset
to 20 mm on delivery.
Cover
• Remove the rear cover ( p. 17)

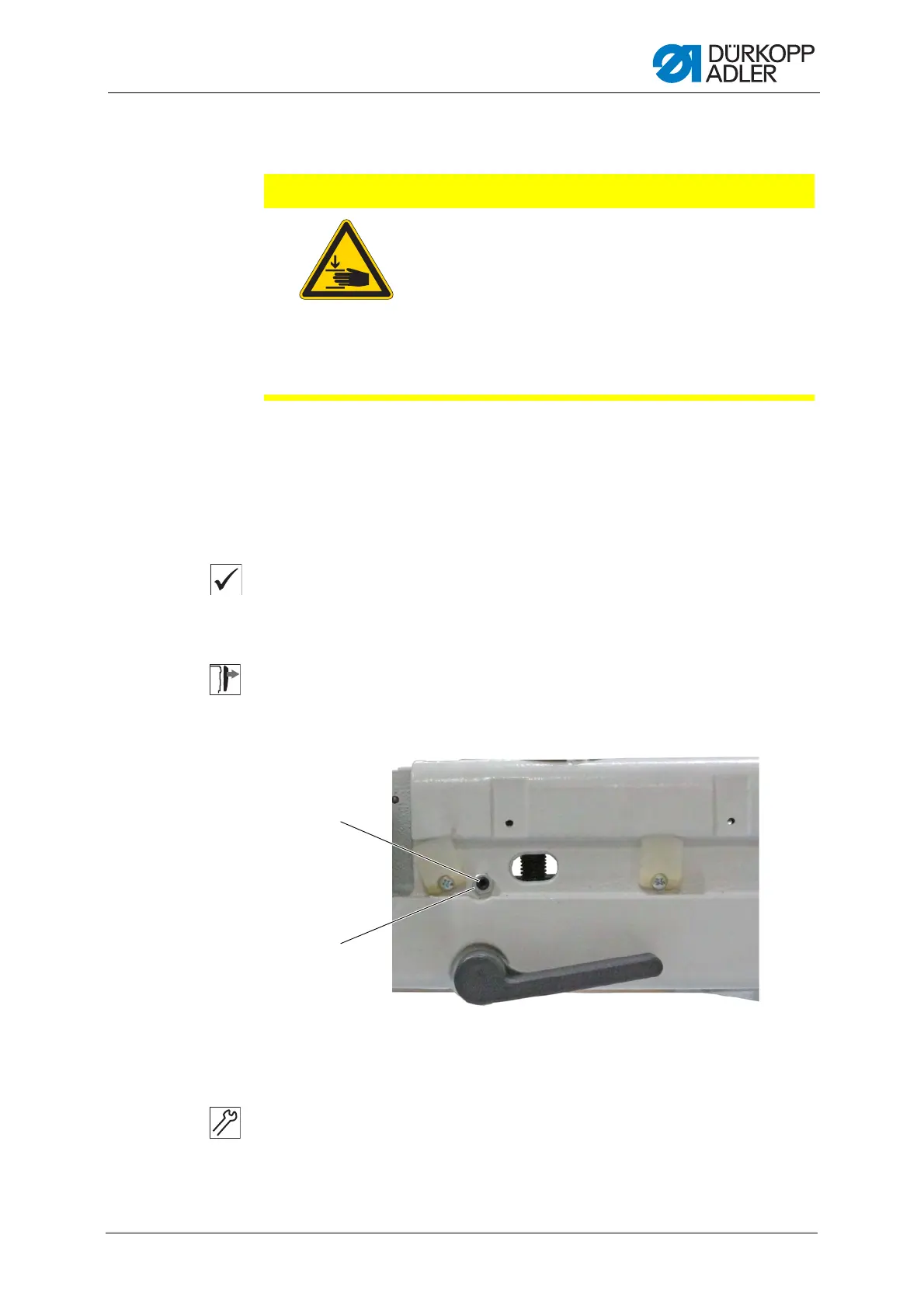

Fig. 52: Setting the sewing foot lifting height
To set the lifting height of the sewing foot:
1. Loosen the counternut (2) for the adjusting screw (1).
CAUTION
Risk of injury from moving parts!
The machine must remain switched on so that the
sewing feet can be raised.
Crushing possible
Exercise particular caution when setting the sewing
foot lifting height.
Do not put your hands under the sewing feet when
they are being lowered.
(1) - Adjusting screw (2) - Counternut
