Latching the safety snap-on coupling
Service Instructions 1767 - 00.0 - 12/2016 35
7 Latching the safety snap-on coupling
The safety snap-on coupling disengages in the event of the thread jamming
and thus prevents the hook from being misadjusted or damaged.
Proper setting
The threaded pins (1) next to the safety snap-on coupling (2) must be
parallel to one another.
After the coupling has disengaged, they are no longer parallel.
Cover
• Tilt the machine head ( p. 14)

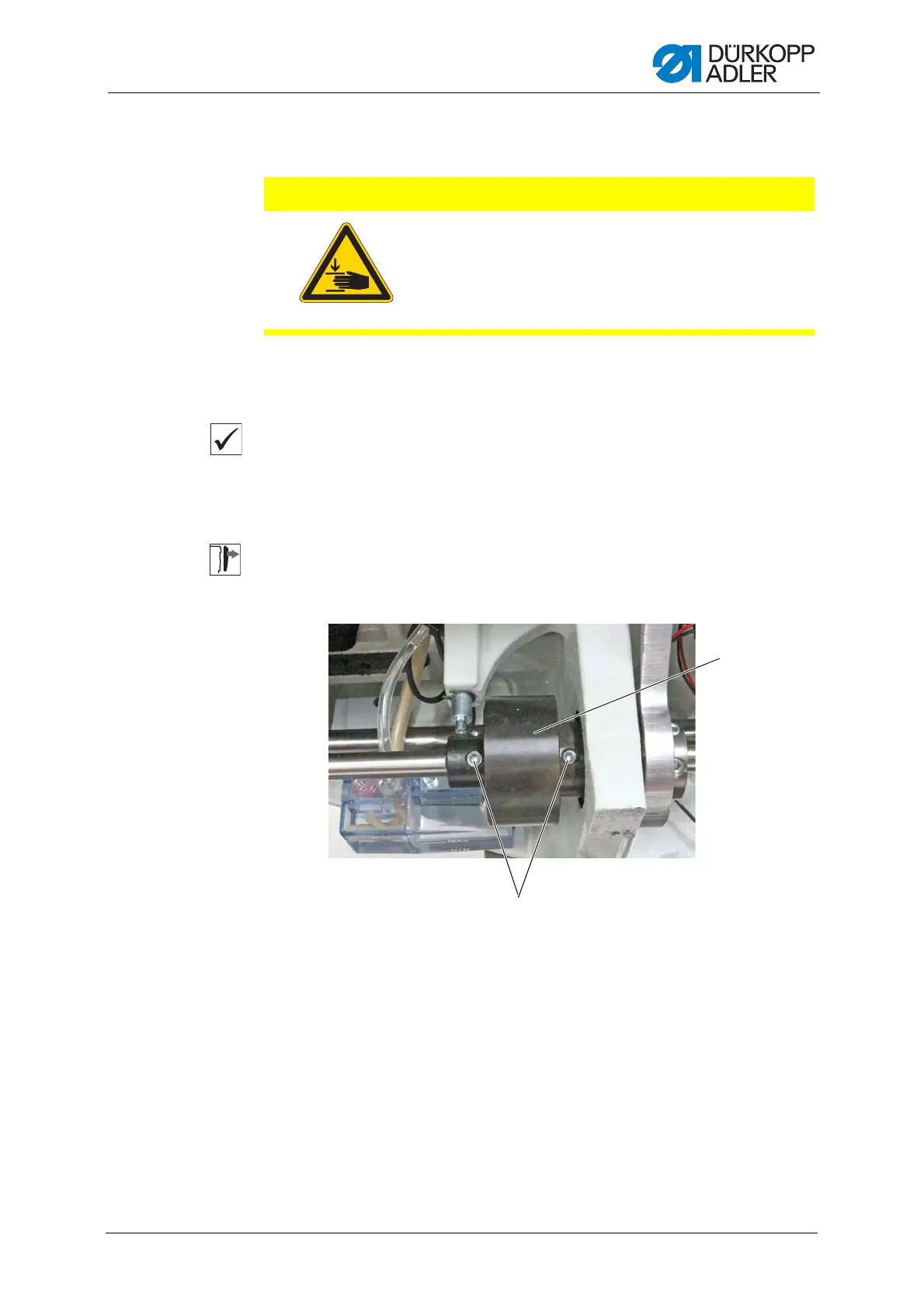

Fig. 22: Latching the safety snap-on coupling (1)
CAUTION
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you latch, check or
set the safety snap-on coupling.
(1) - Threaded pins (2) - Safety snap-on coupling
