Latching the safety snap-on coupling

36 Service Instructions 1767 - 00.0 - 12/2016

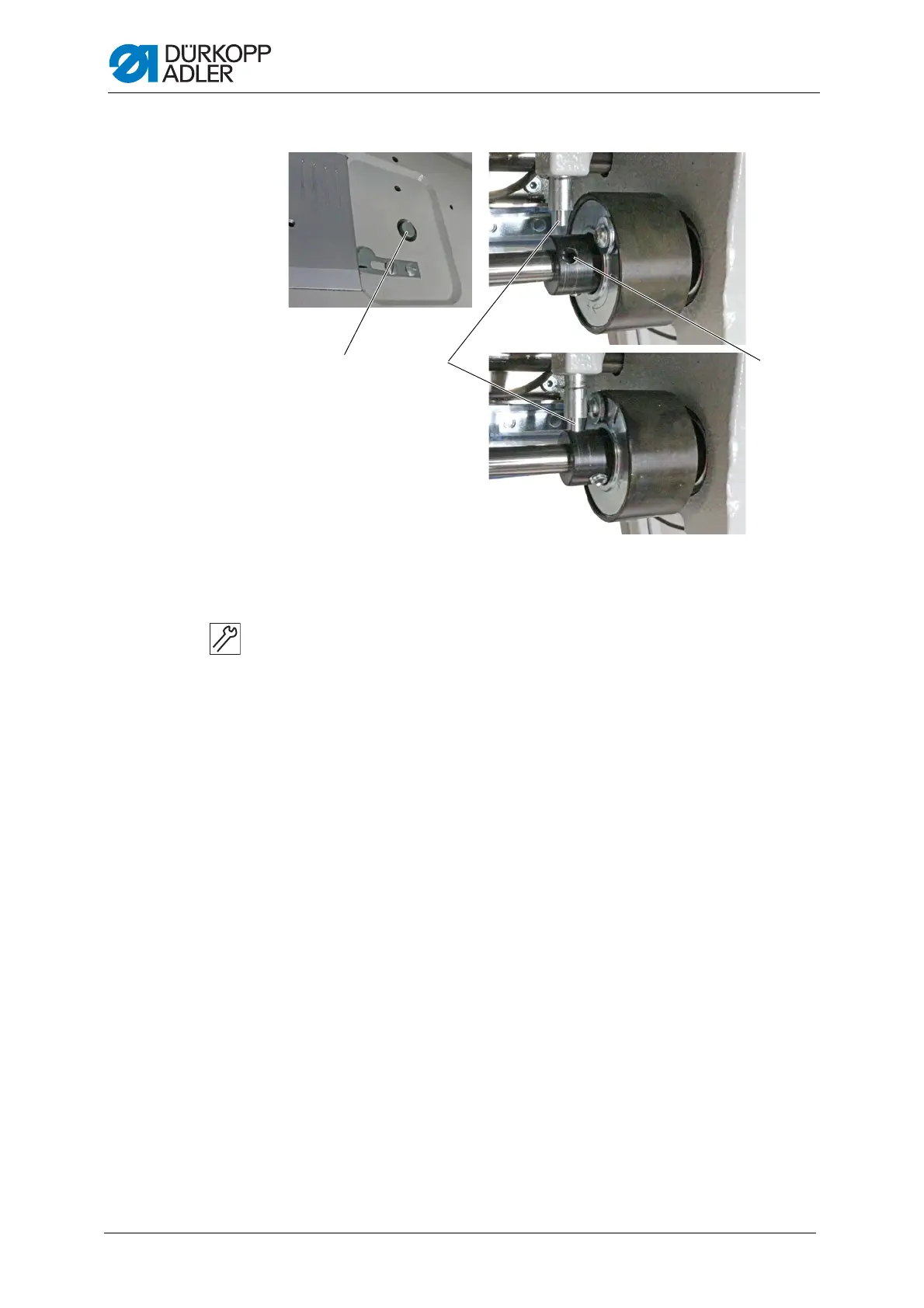

Fig. 23: Latching the safety snap-on coupling (2)

So latch the safety snap-on coupling:

1. Press and hold the button (3) on the upper side of the throat plate.

The pin (4) must be seated in the hole (5).

2. Turn the handwheel until the threaded pins (1) are in parallel position.

 The safety snap-on coupling latches into place.

(3) - Button

(4) - Pin

(5) - Hole

③④ ⑤
