3.3.9 Disassembling and assembling the throat plate

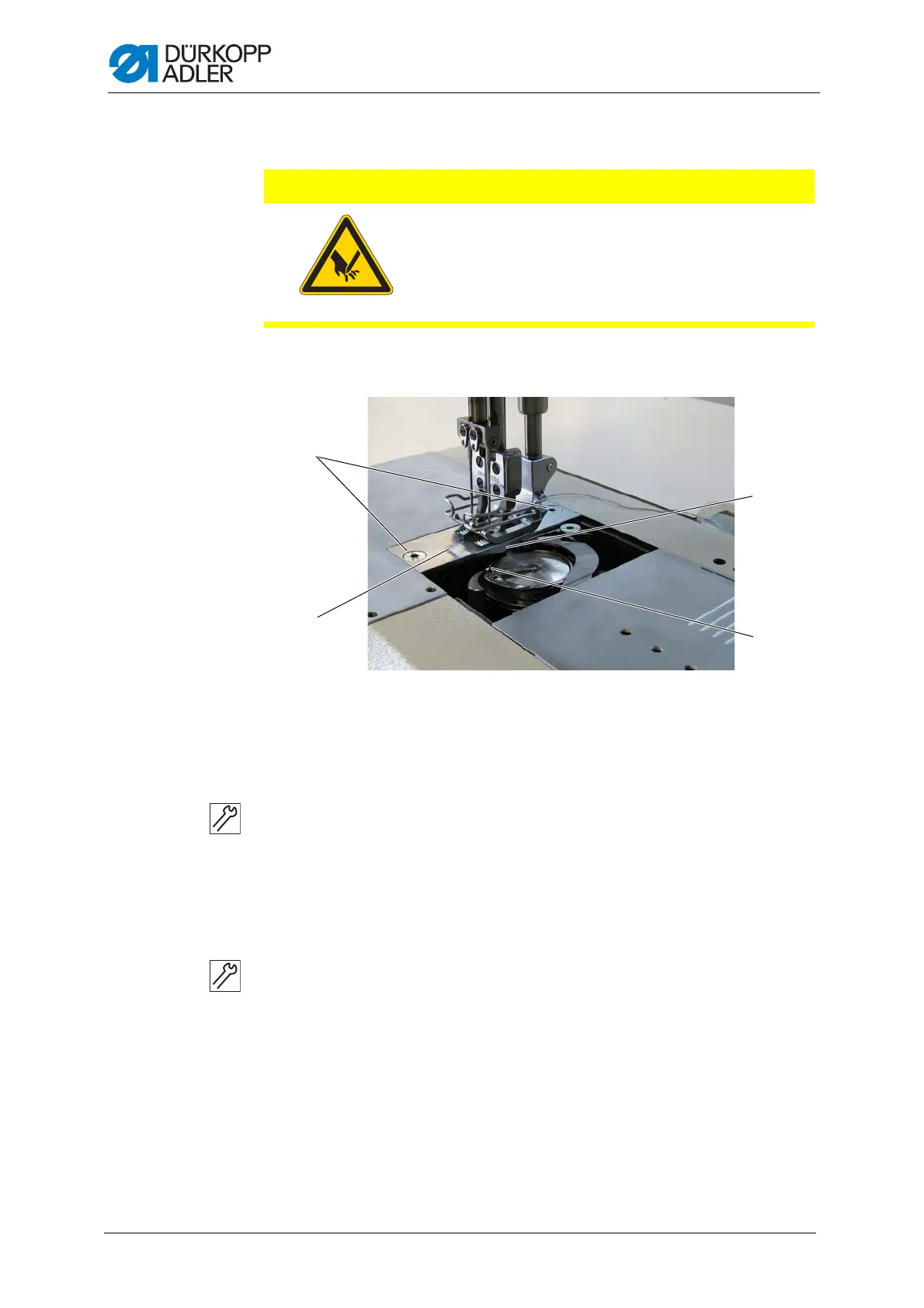

Fig. 9: Disassembling and assembling the throat plate
Disassembling the throat plate
To disassemble the throat plate:
1. Open the throat plate slide ( p. 21).
2. Loosen both screws (1).
3. Remove the throat plate (2).
Assembling the throat plate
To assemble the throat plate:
1. Insert the throat plate (2).
Ensure that the nose (3) of the bobbin case (4) is in the cutout of the
throat plate.
2. Tighten both screws (1).
3. Close the throat plate slide ( p. 21).
CAUTION
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before you disassemble or
assemble the throat plate.
(1) - Screws
(2) - Throat plate
(3) - Nose
(4) - Bobbin case
