Sewing feet
Service Instructions 1767 - 00.0 - 12/2016 63
13 Sewing feet

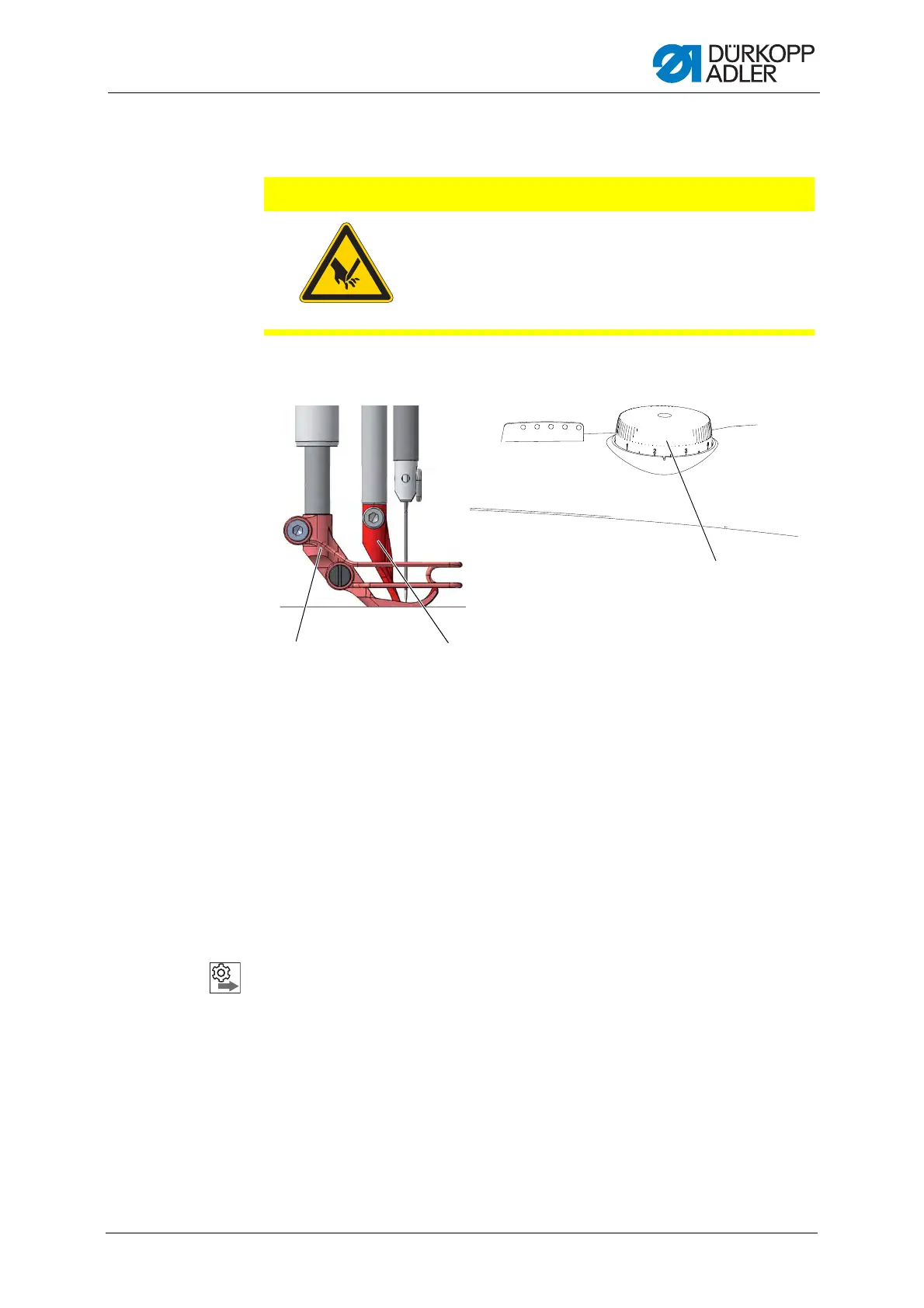

Fig. 47: Sewing feet
The adjusting wheel (3) on the machine arm determines how high the
presser foot (1) and feeding foot (2) are raised during the sewing process.
13.1 Setting the eccentric for the top feed stroke
Checking the stroke movement for the feeding foot
In order to ensure a correct feed, the stroke movement for the feeding foot
must be aligned to the stroke movement for the feed dog.
Order
First, check the following settings:
• Feed dog movement ( p. 44)
• Even sewing foot stroke ( p. 65)
CAUTION
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before adjusting the sewing
feet settings.
(1) - Presser foot
(2) - Feeding foot
(3) - Sewing foot stroke adjusting wheel
