Sewing feet
64 Service Instructions 1767 - 00.0 - 12/2016
Proper setting
1. Position the adjusting wheel for the sewing foot stroke 9 and the stitch
length adjusting wheel to 0.
The feeding foot (1) touches down exactly on the feed dog (2)
when the downward movement of the needle tip (3) reaches the
upper edge of the feeding foot. This will occur when the handwheel
is in the 95° position.

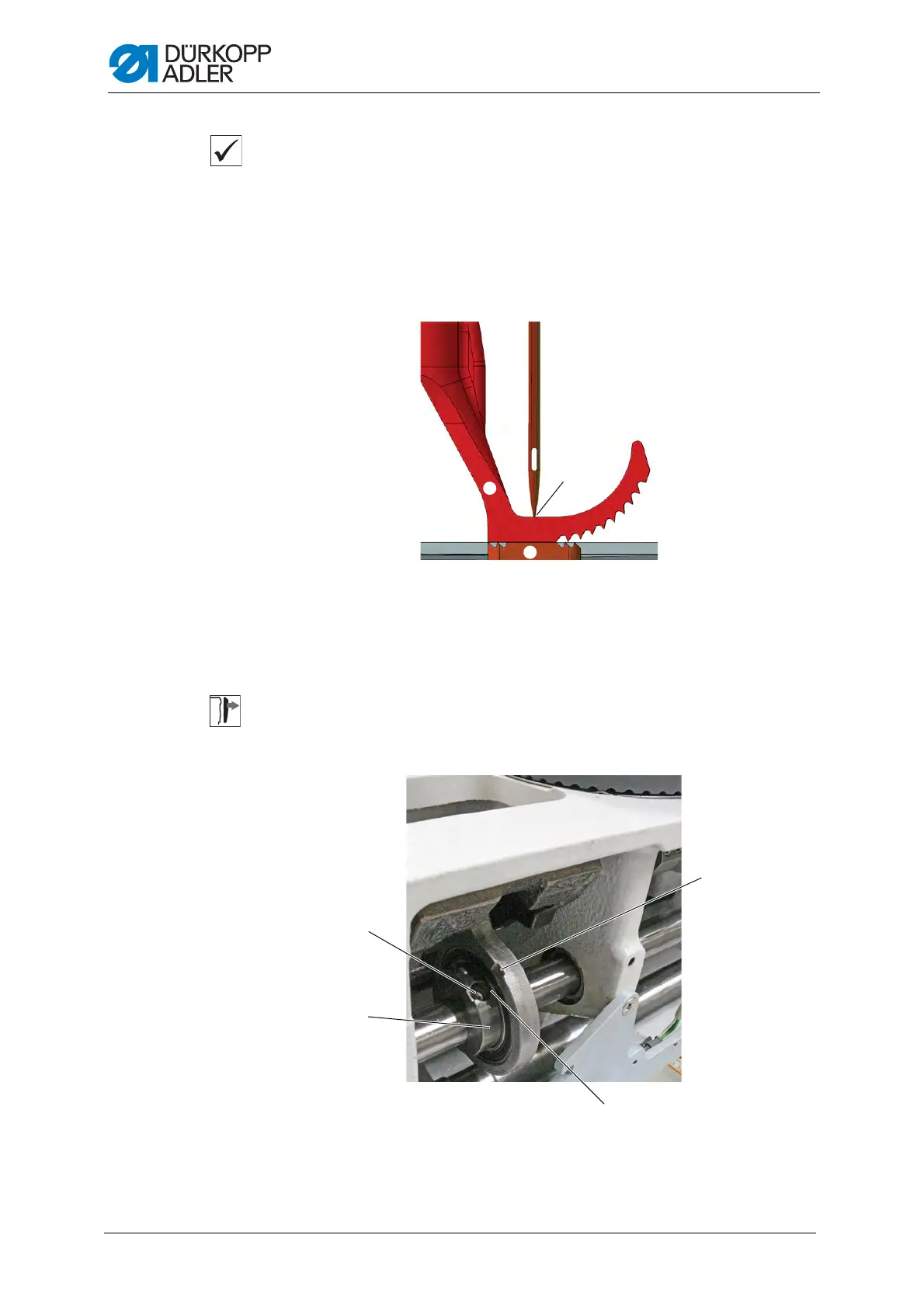

Fig. 48: Checking the stroke movement for the feeding foot
Setting the eccentric
Cover
• Remove the front cover ( p. 18)
Fig. 49: Setting the stroke movement for the feeding foot
(1) - Feeding foot
(2) - Feed dog
(3) - Needle tip
(1) - Screw
(2) - Eccentric
(3) - Marking
(4) - Marking
