Setting the stitch length adjusting wheel
Service Instructions 1767 - 00.0 - 12/2016 37
8 Setting the stitch length adjusting wheel
Proper setting
1. Set the stitch length adjusting wheel to 0:
No play on the stitch regulator gear.
The plates for the gear are parallel; the frame cannot be moved.
Cover
• Remove the front cover ( p. 18)

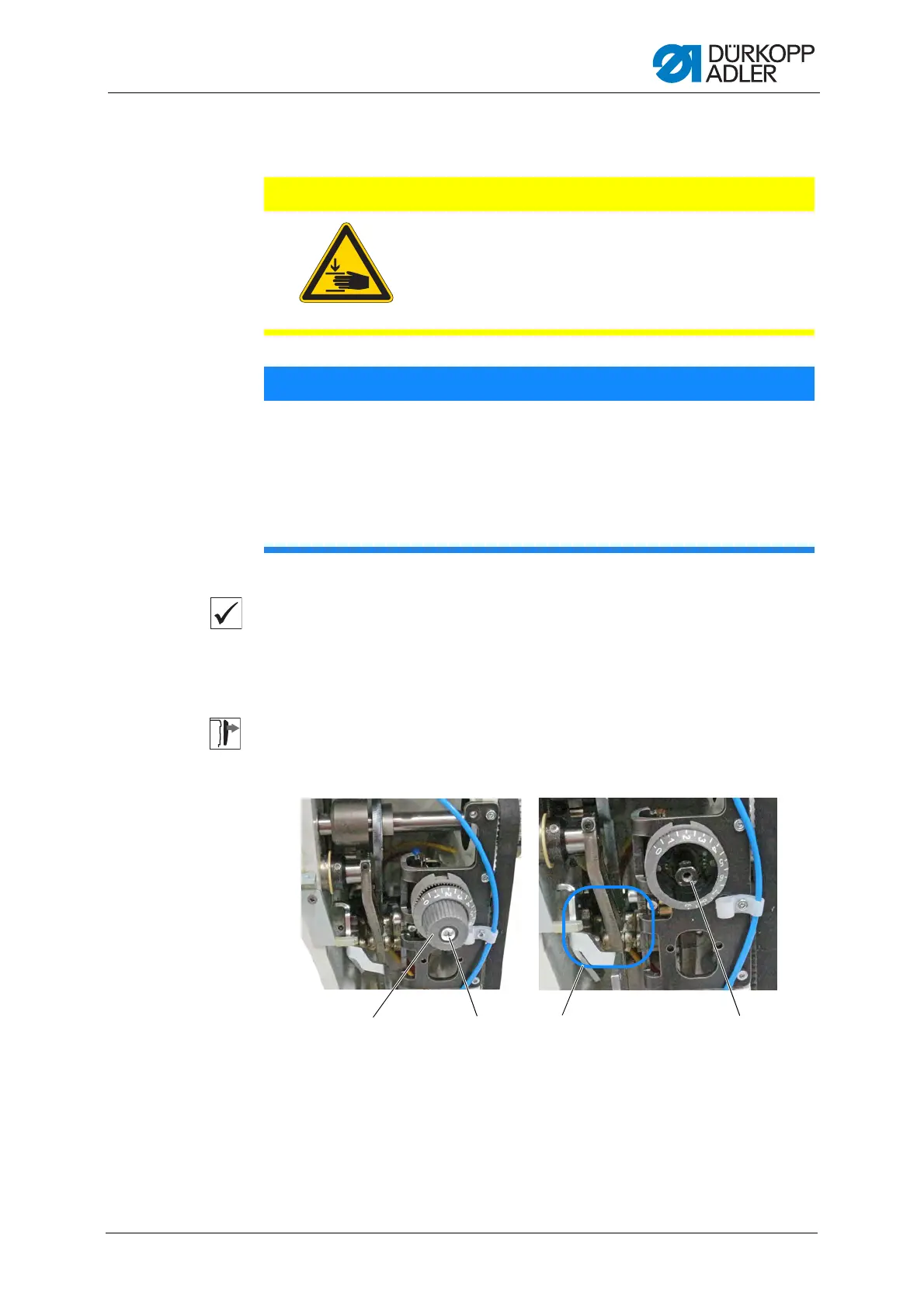

Fig. 24: Setting the stitch length adjusting wheel
CAUTION
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you set the stitch
length adjusting wheel.
NOTICE
Property damage may occur!
Risk of machine damage if the shaft is turned too hard.
If you turn the shaft too far, parts on the stitch regulator gear may
bend or get stuck.
Turn the shaft carefully and stop as soon as you feel a slight
resistance.
(1) - Stitch length adjusting wheel
(2) - Screw
(3) - Frame of the stitch regulator gear
(4) - Spindle
