Make sure not to pinch any cables.
3. Tighten the arm cover.
3.3.8 Opening and closing the throat plate slide

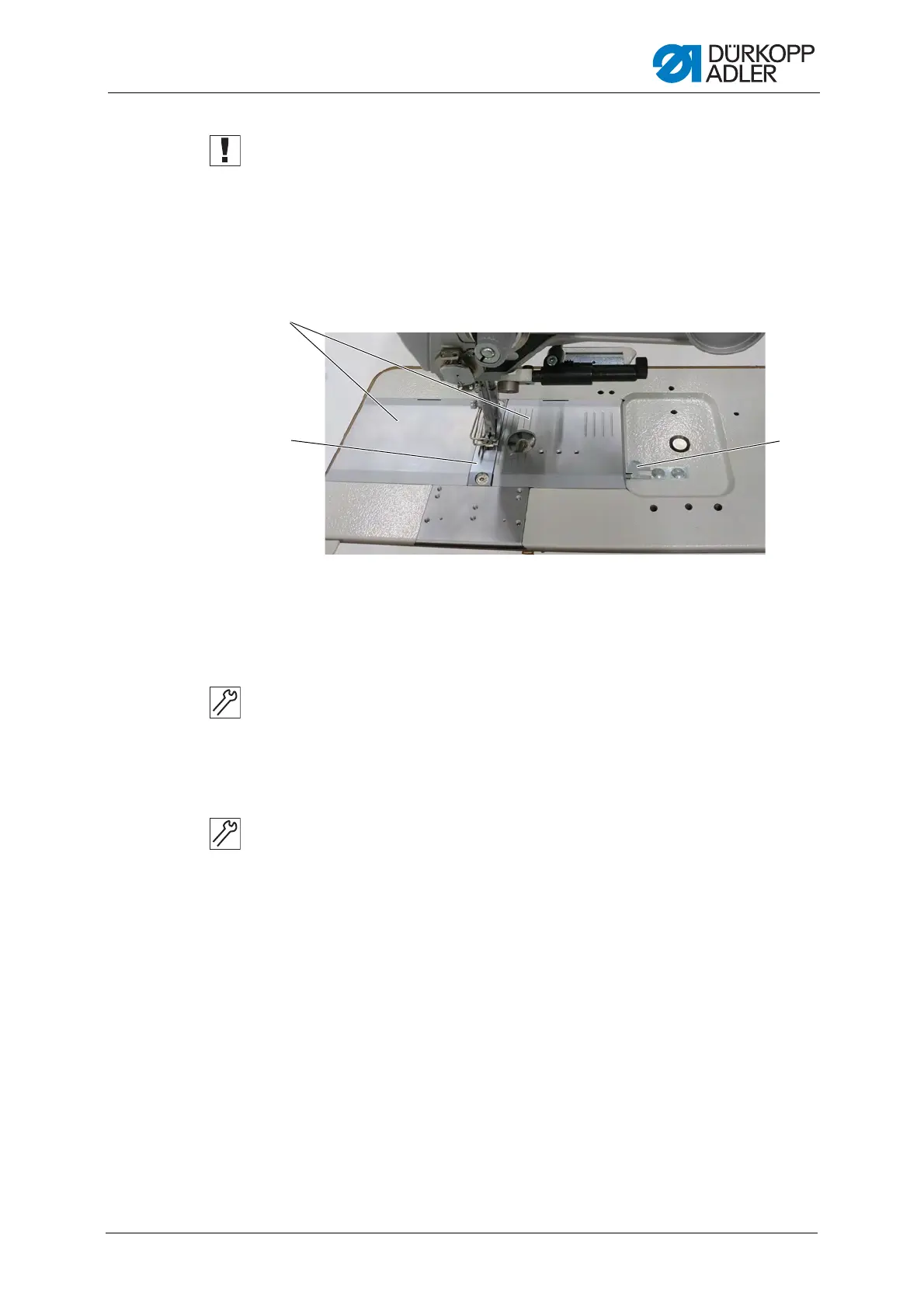

Fig. 8: Opening and closing the throat plate slide
Opening the throat plate slide
To open the throat plate slide:
1. Press the clamping spring (3) downwards.
2. Push the throat plate slide (1) apart.
Closing the throat plate slide
To close the throat plate slide:
1. Slide the throat plate slide (1) up to the throat plate (2).
(1) - Throat plate slide
(2) - Throat plate
(3) - Clamping spring
