Winder
Service Instructions 1767 - 00.0 - 12/2016 71
The position of the arms on the screw (2) determines the filling quantity:
• Parallel: Automatic winding stop at 0.5 mm below the edge of the
winder
• Closer together: Automatic stop with larger filling quantity
• Further apart from each other: Automatic stop with smaller filling
quantity
3. Turn the screw (2):
• Arms closer together: Turn counterclockwise
• Arms further apart from each other: Turn clockwise
4. Put the completely filled bobbin onto the winder.
5. Fold the winder lever (3) upwards as far as it will go to the thread.
Setting the winder spacing

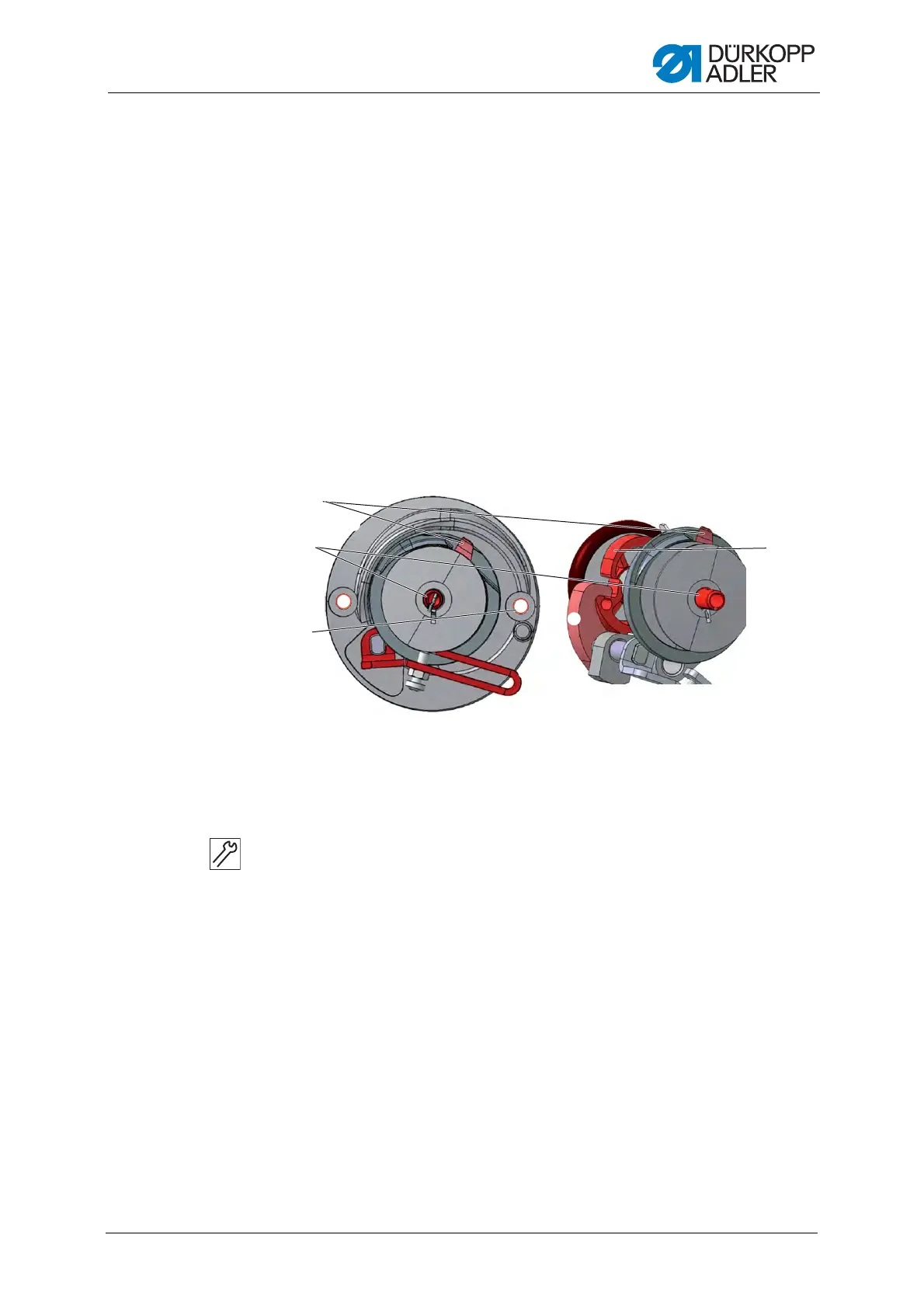

Fig. 55: Setting the winder spacing
To set the winder spacing:
6. Turn the winder spindle (12) such that the thread-pulling knife (11) is
at the top right and is facing the right-hand screw hole (13).
7. Loosen the threaded pin in the block (5).
8. Set the winder lever (3) such that the upper arm is above the marking
for the XXL hook (15).
The distance between the winder lever and the outer thread on the
bobbin is 2 – 3 mm.
9. Set the block (5) such that it is resting against the locking disk (14).
10. Set the block (5) such that its distance to the winder wheel (6) is 0.5 mm.
11. Tighten the threaded pin in the block (5).
(3) - Winder lever
(5) - Block
(6) - Winder wheel
(11) - Thread-pulling knife
(12) - Winder spindle
(13) - Right-hand screw hole
(14) - Locking disk
