Setting the stitch length adjusting wheel
Service Instructions 1767 - 00.0 - 12/2016 39

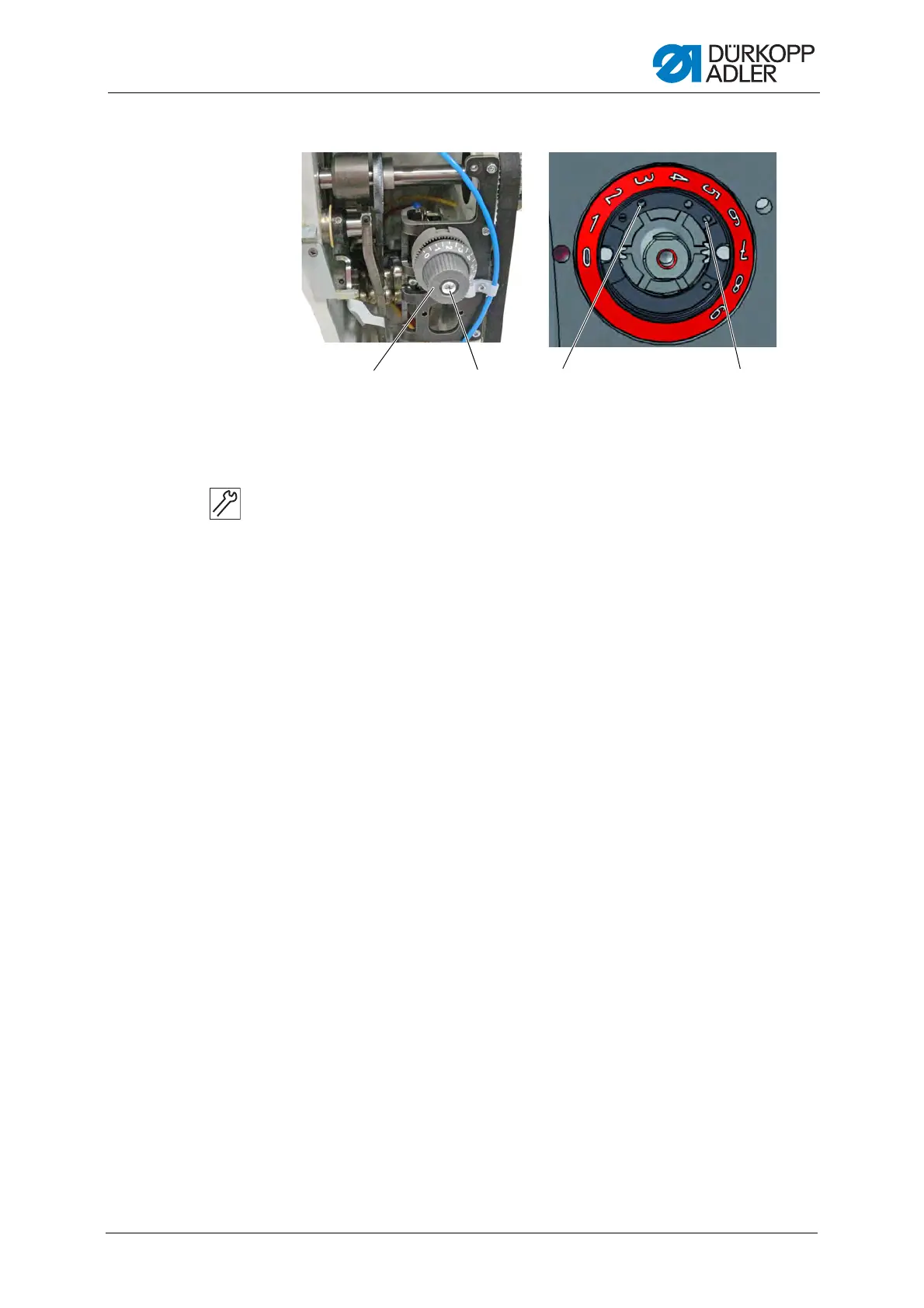

Fig. 25: Setting the stitch length limit
To set the stitch length limit:
1. Position the stitch length adjusting wheel (1) to 0.
2. Hold the stitch length adjusting wheel (1) in place.
3. Loosen the screw (2).
4. Remove the stitch length adjusting wheel (1).
5. Loosen the threaded pin from one of the holes (3) or (4).
6. Screw the threaded pin into the hole for the required maximum stitch
length. The holes are marked with numbers for the stitch length.
7. Turn the scale so that the 0 is exactly next to the adjusting mark.
8. Assemble the stitch length adjusting wheel (1) and hold it in place.
9. Tighten the screw (2).
(1) - Stitch length adjusting wheel
(2) - Screw
(3) - Hole for stitch length 6
(4) - Hole for stitch length 9
