Position of the hook and needle
Service Instructions 1767 - 00.0 - 12/2016 55

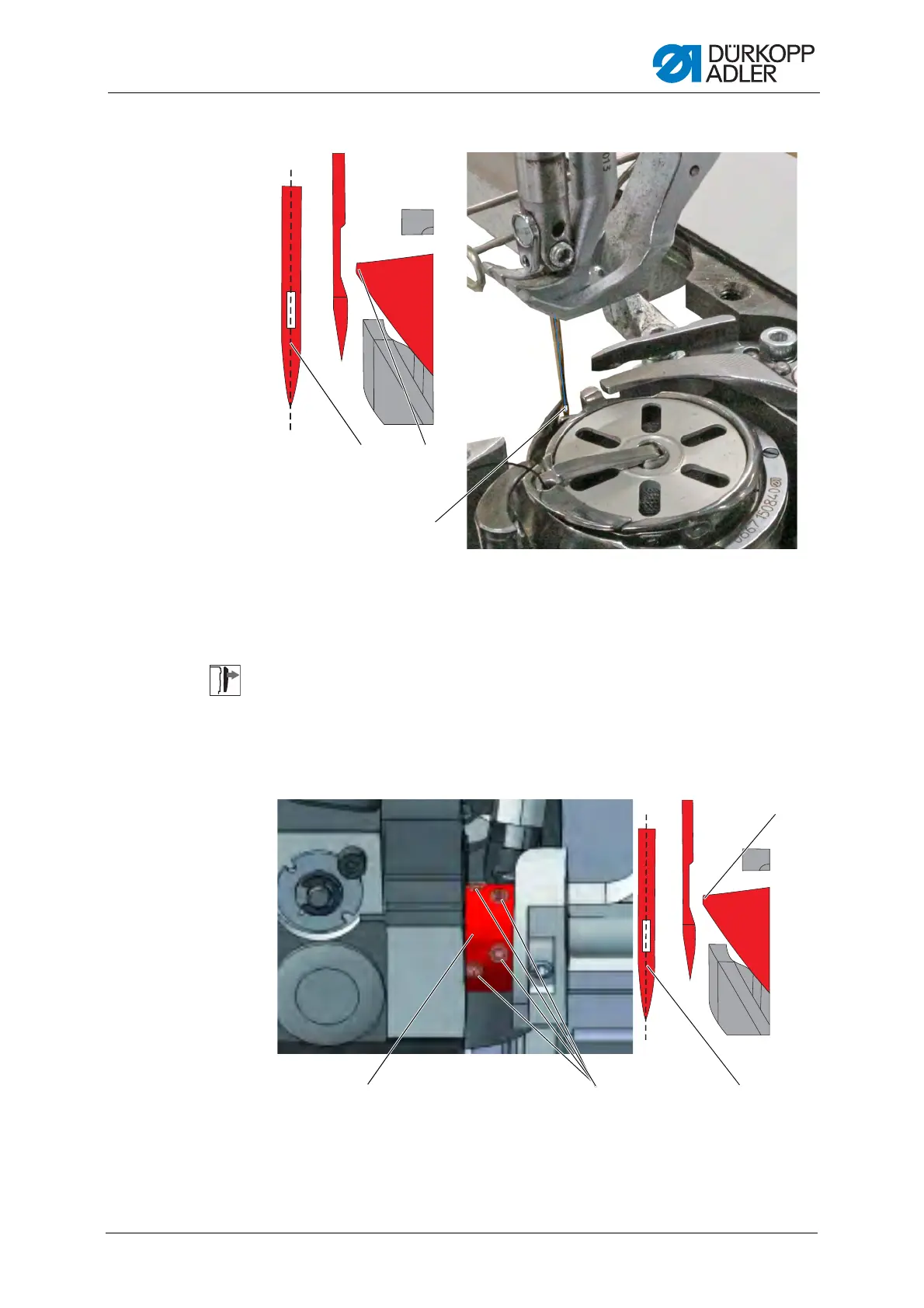

Fig. 40: Checking the position of the hook tip
Setting the loop stroke position
Cover
• Tilt the machine head ( p. 14)
• Disassemble the throat plate ( p. 22)
• Disassemble the feed dog ( p. 23)
Fig. 41: Setting the loop stroke position
(1) - Vertical center line of the needle (2) - Hook tip
① ②
①
(1) - Clamping ring
(2) - Threaded pins
(3) - Vertical center line of the needle
(4) - Hook tip
④
②①③
