Short thread cutter
82 Service Instructions 1767 - 00.0 - 12/2016
Height of the thread-pulling knife

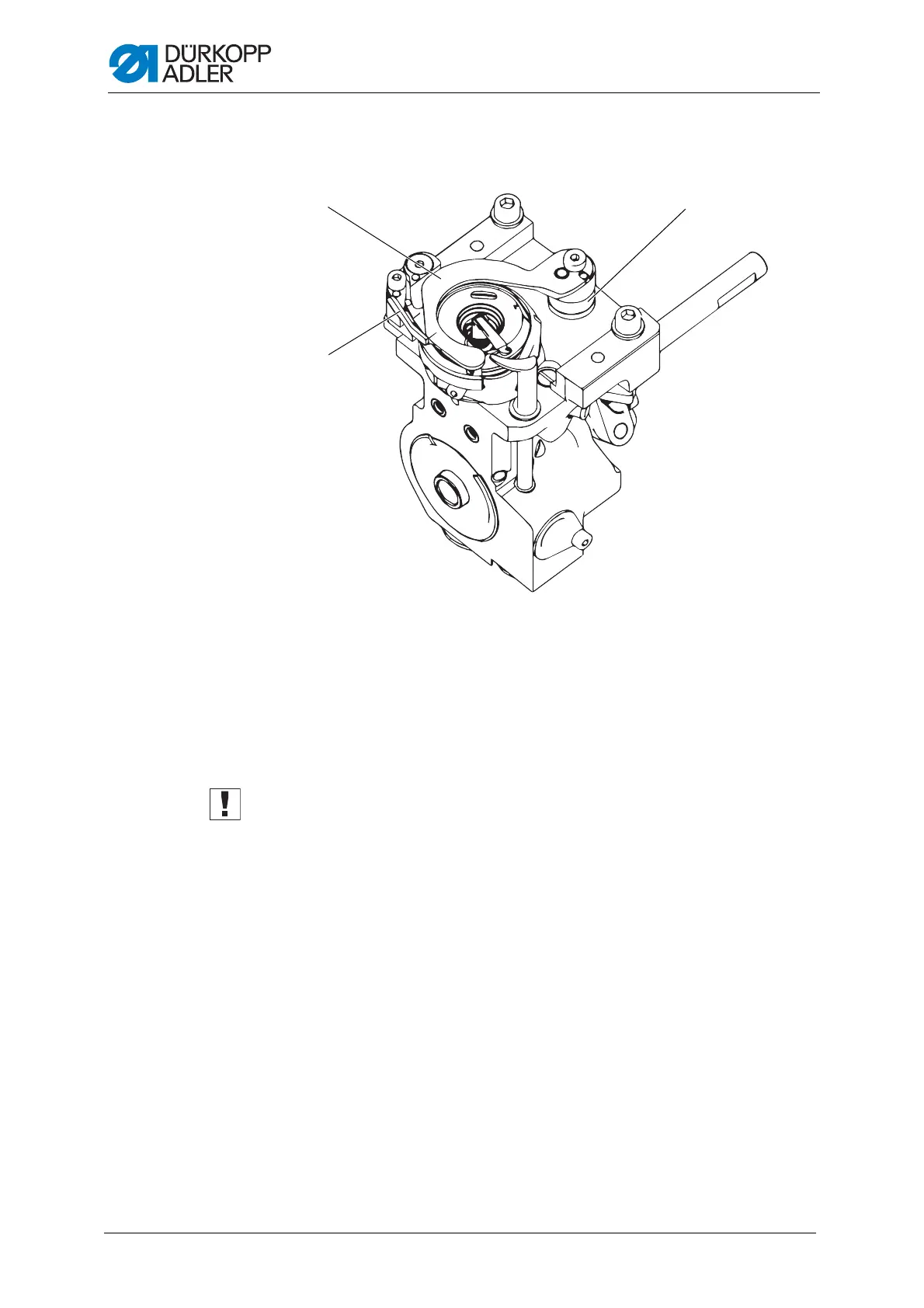

Fig. 65: Height of the thread-pulling knife
The height of the thread-pulling knife has been set at the factory using
adjusting washers between thread-pulling knife (1) and knife carrier (3).
When changing the knives make sure that you do not lose the adjusting
washers.
Important
The height of the thread-pulling knife is determined by the height of the
counter blade. The upper edges of the two knives must be on the same
level.
(1) - Thread-pulling knife
(2) - Counter blade
(3) - Knife carrier
