Setup
Operating Instructions 513/533 - 01.0
- 09/2023
91

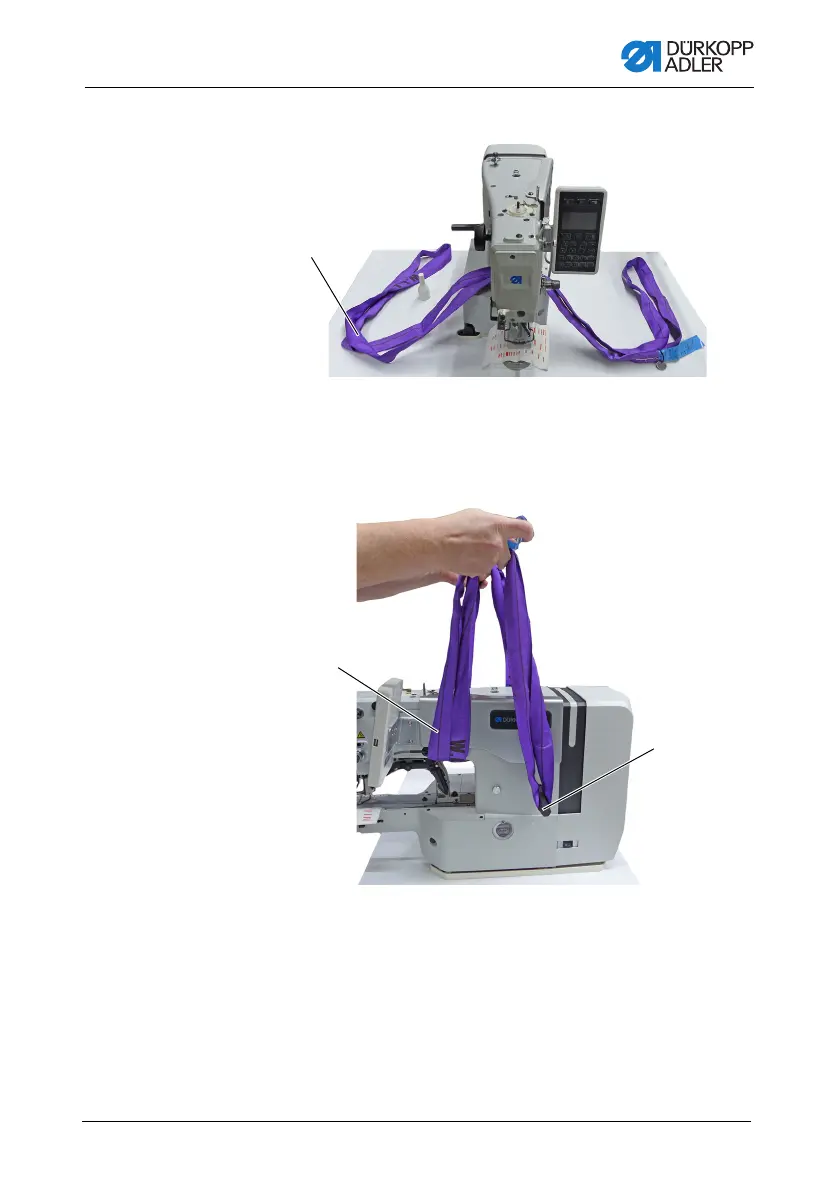

Fig. 60: Unpacking the machine he
ad (2)
3.
Guide the belt (1) through unde
r the machine arm.
Fig. 61: Unpacking the machine he
ad (3)
4.
Use the loop to place the belt (1)
around the handpieces (2)
and pull it up.
(1)
- Belt
(1)
- Belt
(2)
- Handpiec
e
①
①
②
92
94
Table of Contents
Table of Contents
3
About These Instructions
7
For Whom Are These Instructions Intended
7
Representation Conventions - Symbols and Characters
8
Other Documents
9
Liability
10
Safety
11
Basic Safety Instructions
11
Signal Words and Symbols Used in Warnings
13
Operation
17
Threading the Needle Thread
17
Adjusting the Needle Thread Tension
18
Adjusting the Needle Thread Regulator
19
Winding the Hook Thread
21
Changing the Bobbin
22
Adjusting the Hook Thread Tension
24
Changing the Needle
25
Adjusting the Button Mount of the Button Clamp (Class 533)
27
Shank Shaper (Optional)
29
Programming
31
Control Panel
31
Basic Settings
33
Selecting a Seam Pattern
33
Changing the Seam Pattern Parameters (P)
34
Checking Seam Patterns (P)
36
Changing Seam Patterns (P)
37
Sewing
38
Winding the Thread
39
Pausing Sewing
40
Shifting the Zero Point
42
Counter
43
Adjusting/Changing the Counter
43
Setting the Counter Mode
45
Resetting the Counter
46
Registering a New Seam Pattern (P)
47
Using a Seam Pattern Sequence (C)
52
Selecting Seam Patterns (P) for a Seam Pattern Sequence (C)
52
Changing a Seam Pattern Sequence (C)
53
Sewing a Seam Pattern Sequence (C)
54
Copying/Deleting a Seam Pattern Sequence (C)
55
Setting the Parameters
56
Parameter List
57
Copying/Deleting Seam Patterns (P)
61
Importing/Exporting Seam Patterns
62
Activating/Deactivating Standard Seam Patterns
64
Set Button Sewing Function (for 533)
66
4.12 Performing a Manual Test Run
67
4.13 Table of Standard Seam Patterns
68
Standard Seam Images for Class 533
75
Maintenance
77
Cleaning
78
Lubricating
80
Checking the Oil Level
81
Lubricating with Grease
83
Setup
87
Checking the Scope of Delivery
87
Removing the Transport Locks
88
Assembly
88
Checking and Assembling Tabletops
88
Assembling the Stand
89
Assembling the Machine Head Support
90
Adjusting the Working Height
90
Unpacking the Machine Head
92
Inserting the Machine Head
95
Mounting the Control Panel
96
Assembling the Oil Collection Tray
97
Electrical Connection
98
6.3.10 Checking the Mains Voltage
98
6.3.11 Mounting Line Filter
98
6.3.12 Connecting Pedal
99
6.3.13 Assembling the Needle Breakage Protection
100
Fitting the Button Container (Class 533)
101
Sewing Test
102
Decommissioning
103
Disposal
105
Troubleshooting
107
Customer Service
107
Messages of the Control
107
Messages of the Software/Control Panel
115
Errors in Sewing Process
120
10 Technical Data
